Rotax 914 F Installation Manual

Reference
Modification-No.
- 0 -
Page
55
Date
1996 05 10
Install
914 F
15.2) Connections for Bowden-cable actuation and limit load.
See Ill. 36/37.
➪ connection for throttle actuation Q
connection on throttle lever: set screw M 5x12
tightening torque: 4 Nm (35 in.lb)
(suitable for 1,5 mm steel wire)
action travel: 65 mm (2
1
/
2
")
actuating force: min.1,5 N (.3 lb)
max.8 N (1,8 lb)
limit load: 20 N (4,5 lb)
◆ NOTE: Throttle opens by spring.

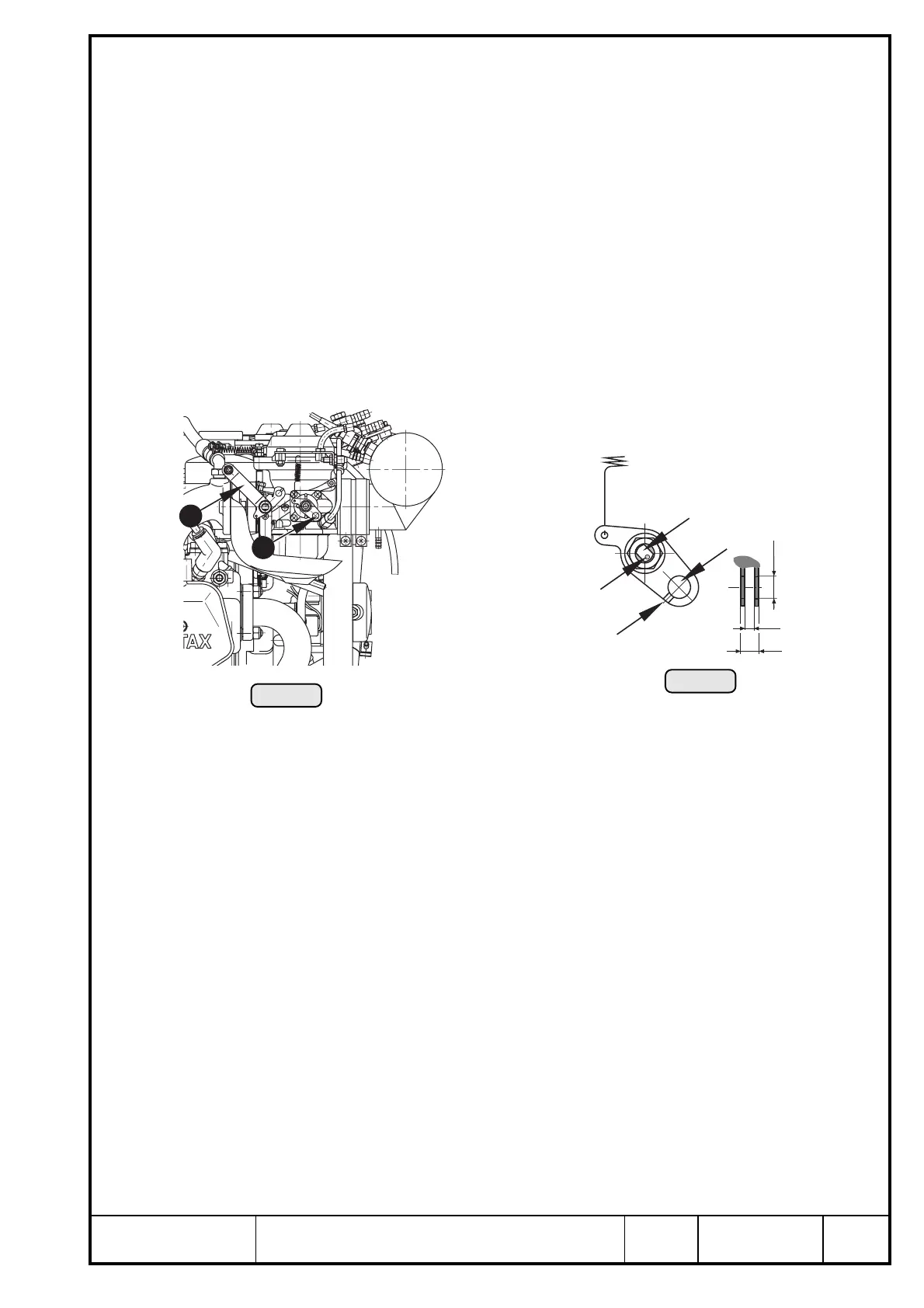

Ill. 36
2
1
E
R
W
T
5,2
2,2
ø6,7
Ill. 37
➪ connection for starting carb (choke) actuation W
connection on choke lever: clamping nipple 6
(suitable for 1,5 mm steel wire)
action travel: 23 mm (
15
/
16
")
actuating force: min.10 N (2,2 lb)
max.24 N (5,4 lb)
limit load: 100 N (22 lb)
Directive for choke actuation
The choke shaft E is marked R. This mark has to point towards cable engagement
T.
