Rotax 914 F Installation Manual

Reference
Modification-No.
- 0 -
Page
92
Date
1996 05 10
Install
914 F
22) Hydraulic governor for constant speed propeller
22.1) Technical data:

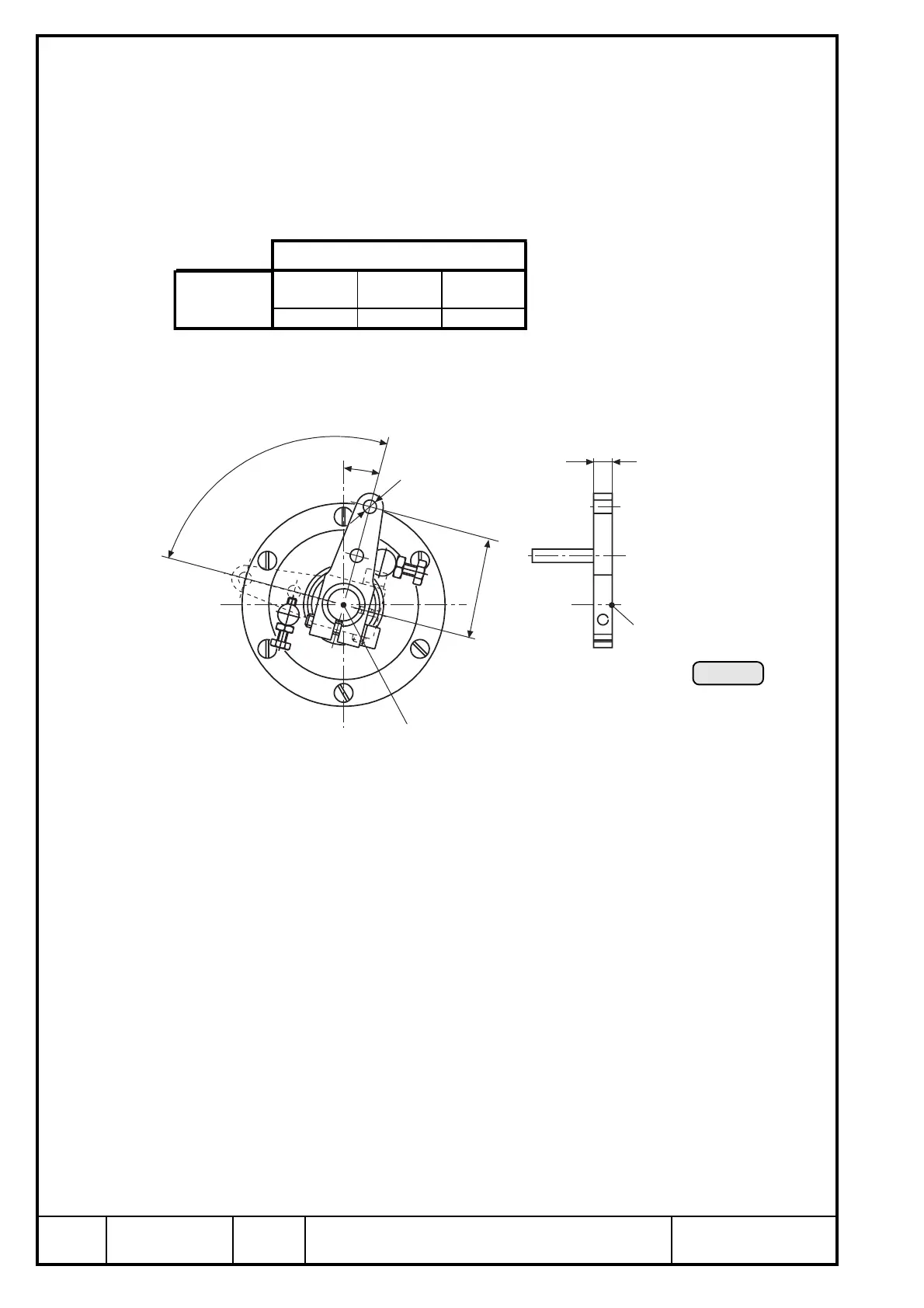

See Ill. 70
Type: Woodward governor A210786 (for engine type F3 only), drive via prop
gear
Location of centre of connection (P3):
➪ cable connection: see ill. 70
➪ cable travel: approx. 54 mm (2 1/8")
➪ actuating force: approx. 3 N (during operation at max. speed) (.67 lb)
limit load 6 N (1,35 lb)
➪ power input: max. 600 W
➪ operating pressure: max. 30 bar (435 p.s.i.)
➪ weight: 1,44 kg (3,2 lb)
2,7 kg (6 lb) (inclusive drive unit)
◆ NOTE: Reduction ratio of crankshaft to governor is 1,842 e.g. the governor
speed is 0,54 of the engine speed.
90°
15°
5
38
7
P3
P3
Ill. 70
Axes
x axis y axis z axis
-373 -10 51
Centre P3
