Reference
Modification-No.
- 0 -
Page
34
Date
1996 05 10
Install
914 F
➪ water inlet bend T: outside dia. 27 mm (1 1/16")
slip-on length max. 19 mm (3/4")
TT
110°
105°
70°
75°
TT

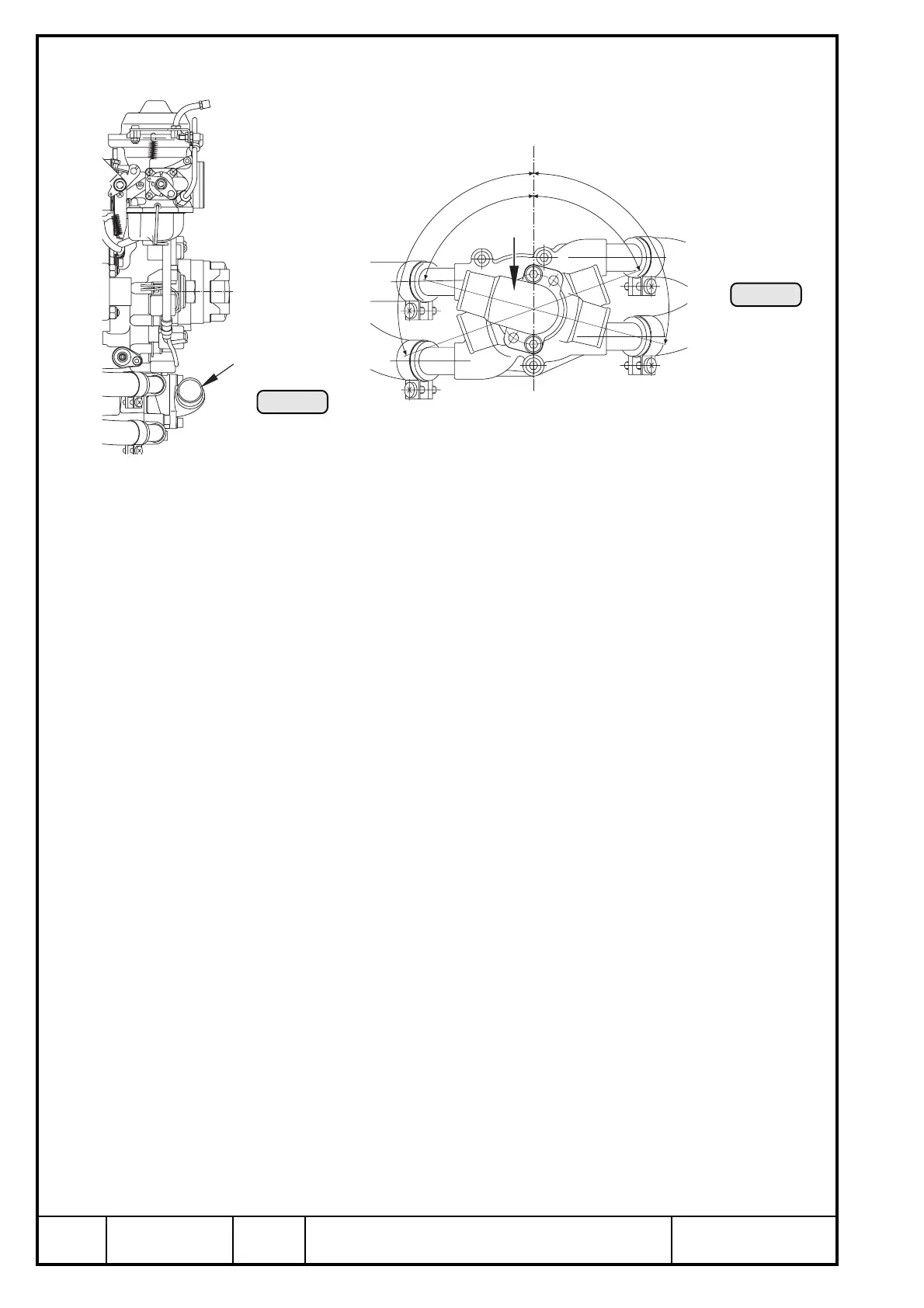

◆ NOTE: Choose between four possible fitting positions of water inlet bend T
appropriate to specific installation (see illustration). The inlet bend is
attached to the water pump by two Allen screws M6x20 and lock
washers. Tighten screws to 10 Nm (90 in.lb.).
■ ATTENTION: Utilize total slip-on length for hose connection. Secure hoses with
suitable screw clamp or by crimp connection.
12.5) Coolant capacity
4 cylinder heads:.......................................... 560 cm
3
water pump: ................................................. 100 cm
3
expansion tank:............................................ 250 cm
3
2 m coolant hose
(18 mm inside dia.) : ................................... 500 cm
3
total coolant quantity in engine: approx. 1410 cm
3
(3/8 gal (us))
Ill. 19
Ill. 18
