Rotax 914 F Installation Manual

Reference
Modification-No.
- 0 -
Page
43
Date
1996 05 10
Install
914 F
13.4) Connecting dimensions and location of connections
■ ATTENTION: Utilize the full slip-on length for hose connections. Secure hoses with
suitable screw clamp or by crimp connection.
13.4.1) Oil circuit (engine)
See ill. 24/25.
Oil pump (inlet) Q ................... thread M18 x 1,5 x 11
◆ NOTE:
Suitable for use of a swivel joint. See ill. 28.
Tightening torque 25 Nm (220 in.lb)
Oil return
According to propeller configuration choose the appropriate connection for
the oil return line.
Position 1 for tractor or 2 for pusher configuration. See ill. 28.
hose nipple W .......................... 10 DIN 7642
outside dia................................ 12 mm (0,5 in.)
slip-on length............................ max. 24 mm (max. 0,94 in.)
Tightening torque of banjo bolt E
M16x1,5x28: 35 Nm (310 in.lb).
13.4.2) Oil circuit (turbo charger)
See ill. 26.
Oil return
hose nipple R ......................... 4/6 DIN 7642
outside dia................................ 8 mm (0,31 in.)
slip-on length............................ max. 20 mm (0,79 in.)
Tightening torque of banjo bolt T
M10x1x19: 17 Nm (150 in.lb)

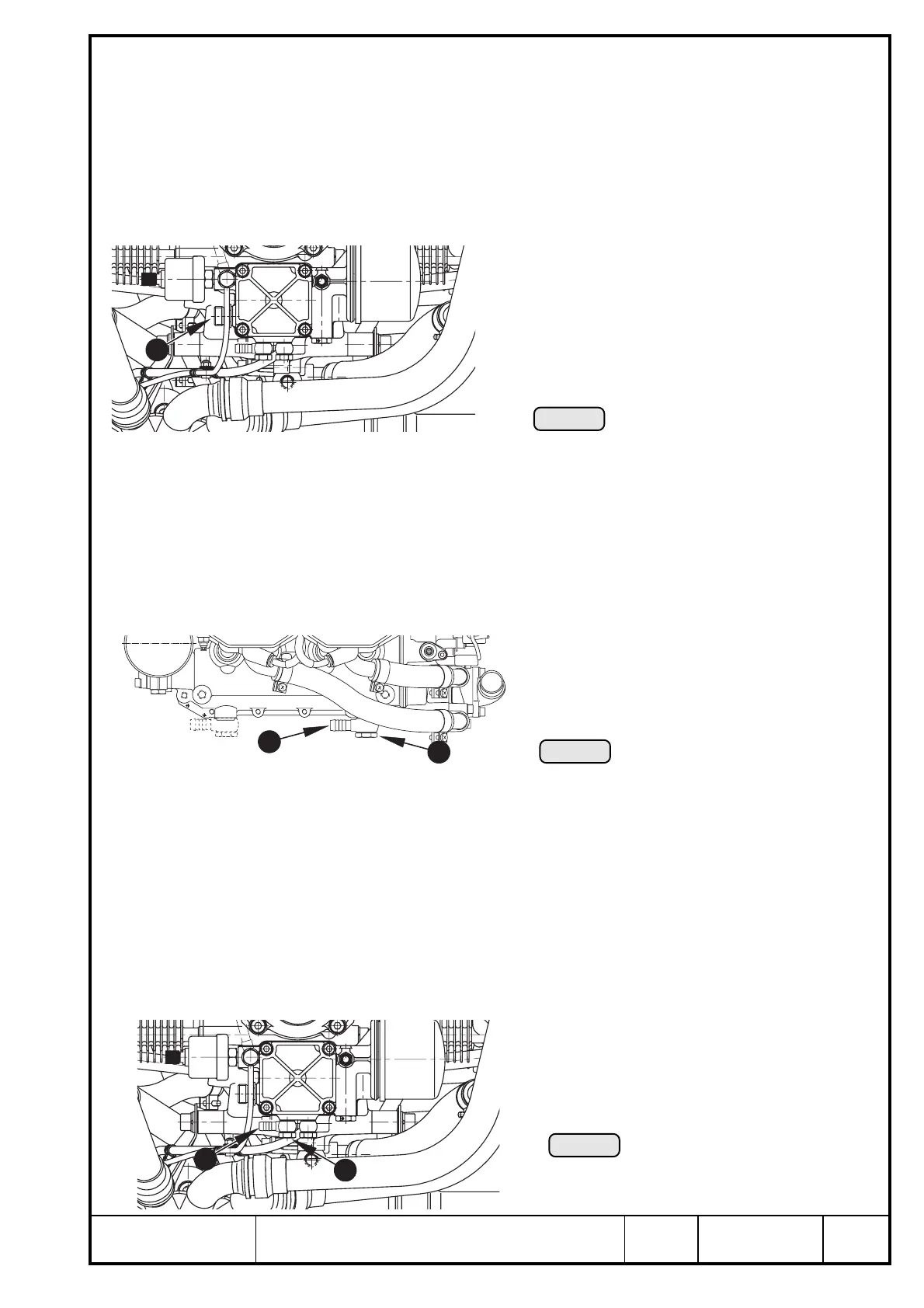

Ill. 24
Ill. 26
Ill. 25
4
5
1
pos. 1
Zugpropeller
(tractor config.)
pos. 2
Druckpropeller
(pusher config.)
2
3
