Rotax 914 F Installation Manual

Reference
Modification-No.
- 0 -
Page
96
Date
1996 05 10
Install
914 F
➪ installation dimensions: see illustration
➪ reduction ratio: i = 4 i.e. 1/4 of engine speed
◆ NOTE: A flexible shaft for the mechanical rev-counter is readily available
from BOMBARDIER-ROTAX.
23.4) Mechanical rev-counter or hour-meter:

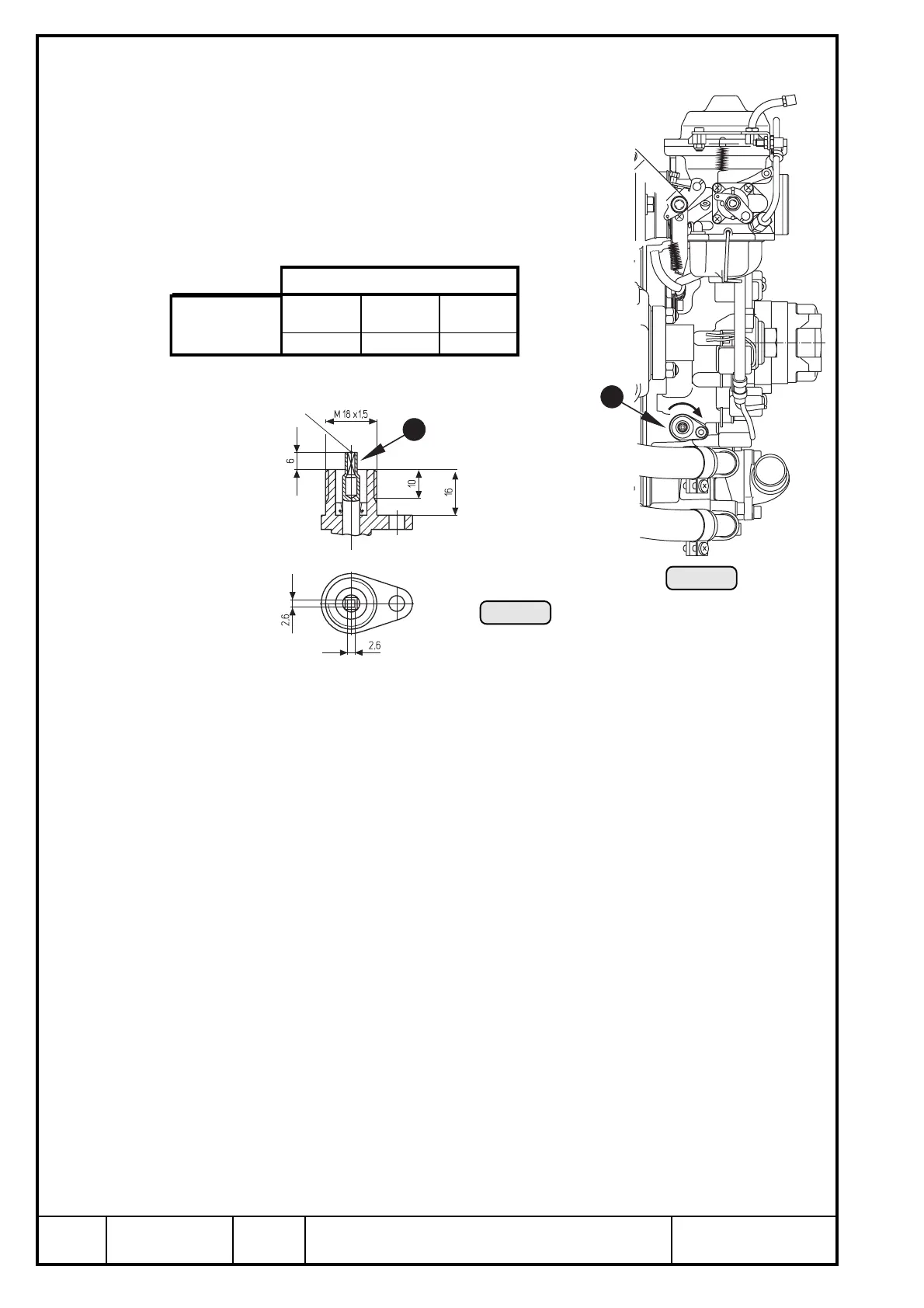

See Ill. 77/78.
➪ location: ignition housing Q
➪ direction of rotation of the
rev-counter shaft W: clockwise,
see illustration
➪ position of rev-counter drive:
Axes
x axis y axis z axis
-465 87 -160
point of
engagement
P4
P4
Ill. 77
Ill. 78
1
2
