Rotax 914 F - 5) Electric Starter; 6) Starter Relay

Reference
Modification-No.
- 0 -
Page
81
Date
1996 05 10
Install
914 F
19.4.6) Starter relay

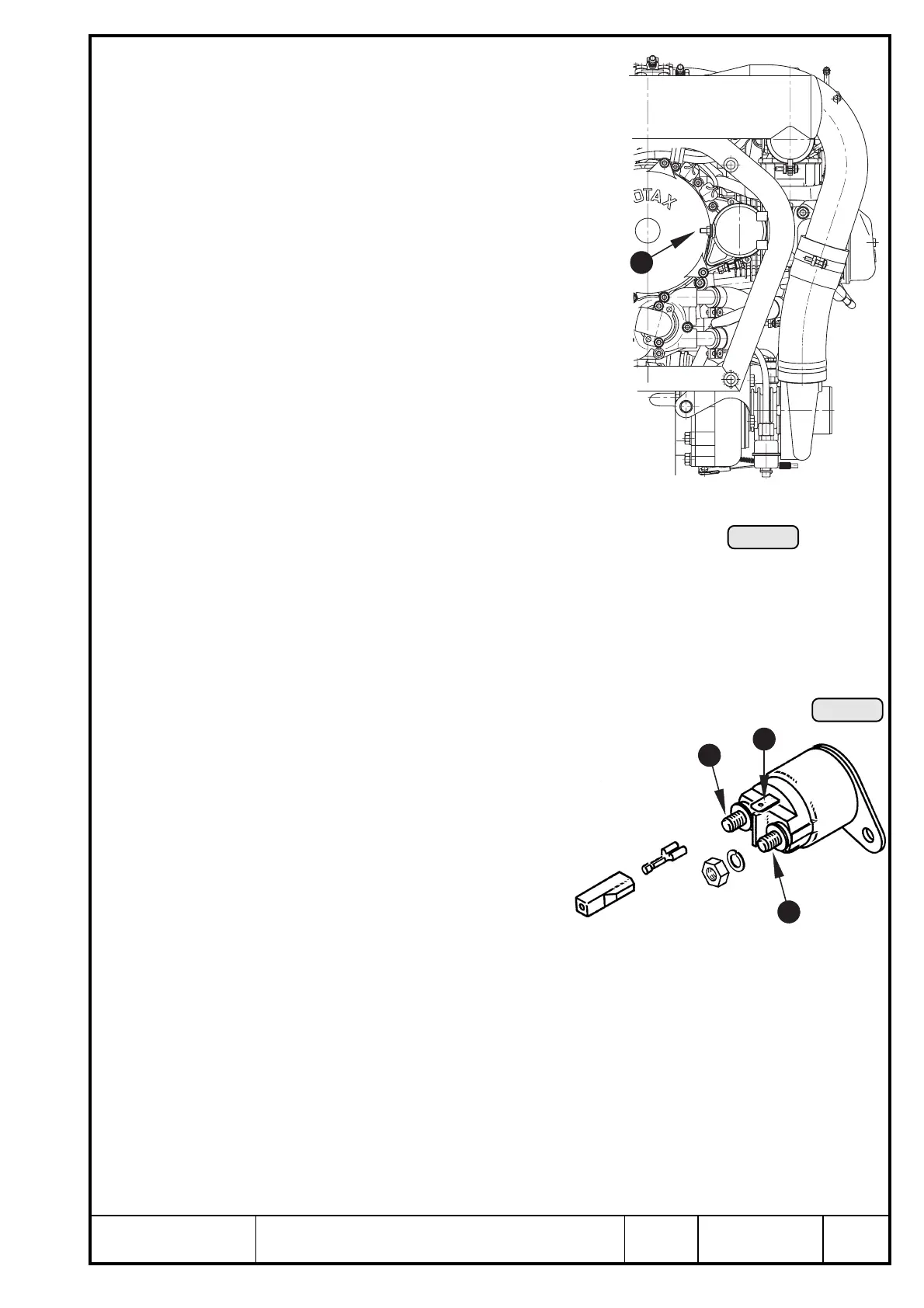

See Ill. 60.
➪ nominal voltage: 12 V
➪ control voltage: min. 6 V
max. 18 V
➪ switching current: max. 75 A (permanent)
max. 300 A (for 1 sec.)
➪ ambient temperature range:
from – 40° C (-40° F) to
+100° C (214° F)
➪ weight: 0,145 kg (.32 lb)
➪ current connections Q: M6 screw (tightening torque 8 Nm (70 in.lb))
suitable for cable eyes to DIN 46247
➪ control wiring W: plug connector 6,3x0,8 suitable for plug socket
to DIN 46247
➪ grounding: via housing
■ ATTENTION: Activation of start relay limited to short duration. Over a
period of 4 min. operation, the duty cycle is 25%.
2
1
1
Ill. 60
19.4.5) Electric starter
See Ill. 59.
Feeding lines from starter relay to the elec-
tric starter
➪ cross section of at least 16 mm
2
➪ output: .6 kW
➪ plus terminal Q: M6 screw (tightening
torque 8 Nm (70 in.lb)) suitable for cable
eyes to DIN 46225
➪ grounding: via engine block
■ ATTENTION: Suitable for short starting
periods only.
Activate starter for max. 10 sec. without
interruption, followed by a cooling period of
2 min!
Ill. 59
1
