Reference
Modification-No.
- 0 -
Page
67
Date
1996 05 10
Install
914 F
Airbox-Drucksensor
airbox pressure sensors
Umgebungs-Drucksensor
static pressure sensors

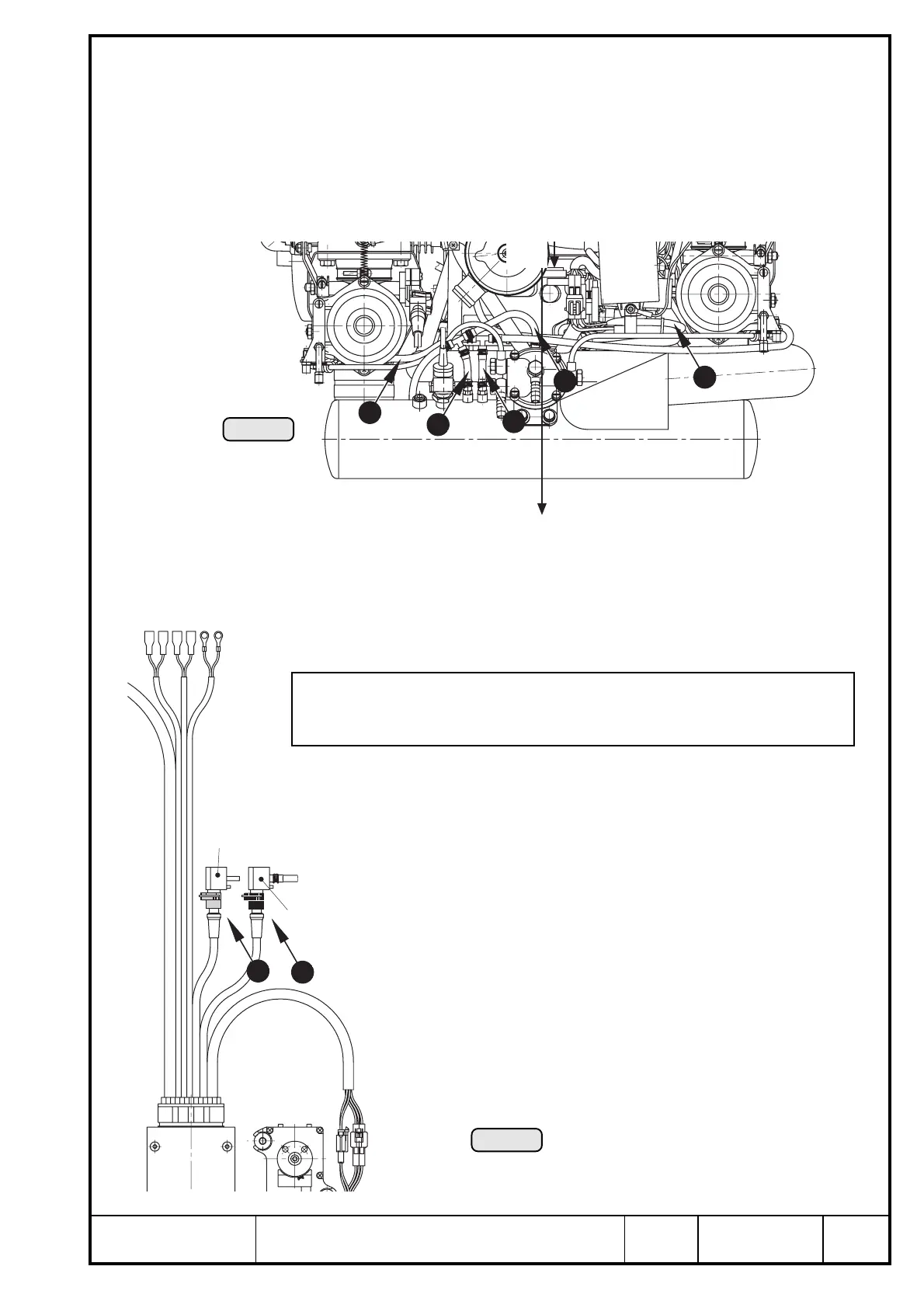

17) Pressure sensors
See Ill. 45/46.
2 pressure sensors are included in the supply volume of the engine and connected by plugs
with the wiring harness.
WARNING: Since a failure of pressure interconnections Q of airbox, float chambers, fuel
control and pressure sensor would possibly result in an engine stop all these
interconnections have to made very carefully.
Ill. 46
2
3
-x
-x1
NOTE: To avoid any mix-up of pressure sensor wiring, plug connections are colour
coded.
grey plug connection W static pressure sensor
black plug connection E airbox pressure sensor
1
1
1
1
1
Ill. 45
