Rotax 914 F - Requirements on the Cooling System; Size and Position of Connections

Reference
Modification-No.
- 0 -
Page
33
Date
1996 05 10
Install
914 F
12.3) Requirements on the cooling system
■ ATTENTION: All components of the cooling system have to be secured suitably.
▲ WARNING: The size and layout of the cooling system must be designed to keep
the operating temperatures within the specified limits.
To minimize flow resistance employ radiator with low flow resistance
and parallel flow as realized on the original BOMBARDIER-ROTAX
radiator and use short hoses and pipelines.
Coolant hoses:
➪ temperature durability: min. 125°C (257° F)
➪ pressure durability: min. 5 bar (73 p.s.i.)
➪ nom. inside dia : 25 mm (1")
➪ bending radius: min. 175 mm (7")
➪ material: Suitable for 100 % Glycol and antifreeze agents.
■ ATTENTION: Pay attention to ozone stability!
◆ NOTE: If installation require longer distances use aluminium pipes (25 mm
(1") inside dia.) instead of hoses.
12.4) Size and position of connections

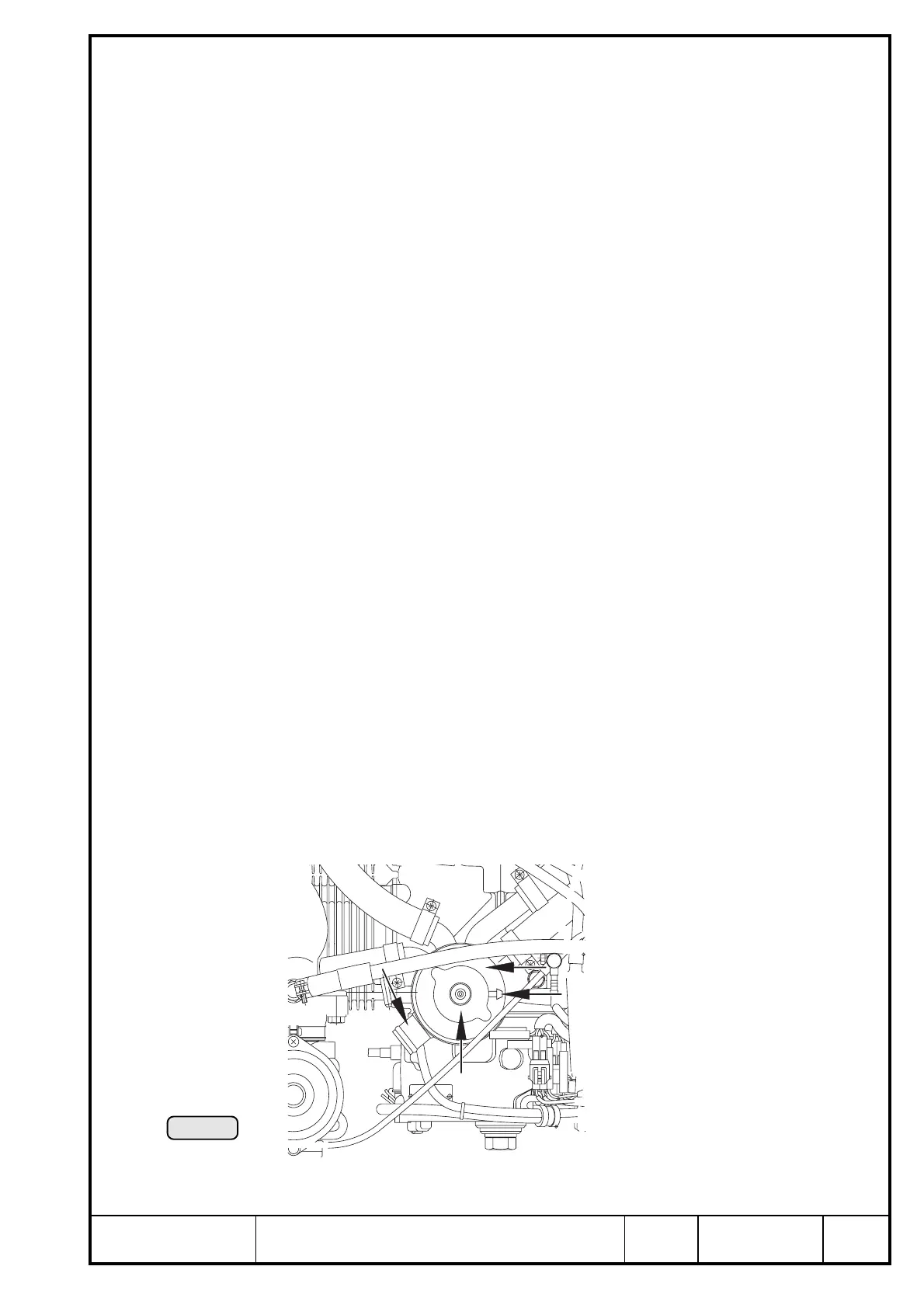

See illustration 17/18/19.
➪ expansion tank Q with radiator cap W
to radiator E: outside dia. 25 mm (1")
slip-on length max. 22 mm (7/8")
to overflow bottle R: outside dia. 8 mm (3/8")
slip-on length max. 15 mm (9/16")
EE
QQ
RR
WW
Ill. 17
