15.5.3) Checking of the throttle position
See Ill. 42.
➩ Start of the sub program MONITOR.
Throttle position is displayed in the middle of the top line (carb 2/4)
0 % ➪ throttle completely closed
115 % ➪ throttle fully open
➩ visually check whether the throttle on both carburetors can be fully
opened and closed. If necessary correct the installation setting
➩ check of the display with throttle completely closed:
nominal: 0° tolerance +3%
➩ check of the display with throttle fully open:
nominal: 115 % tolerance -2%
■ ATTENTION: Check whether indication is linear over the complete range
from 0% to 115% i.e. the 115% position is not indicated
before throttle is fully open.
➩ Check of the display at max. continuous power.
■ ATTENTION: Throttle lever must be in positive stop position
nominal: 100 % tolerance +3%.
▲ WARNING: This check of position is only meaningful and allowed, if idle-
and full throttle position are within the allowance variation.
If the throttle position for idle and full throttle are not within the allowance
variation or if not proceeding linear, then a new calibration of the throttle
position is absolutely necessary. Refer to Maintenance Manual 914 F.

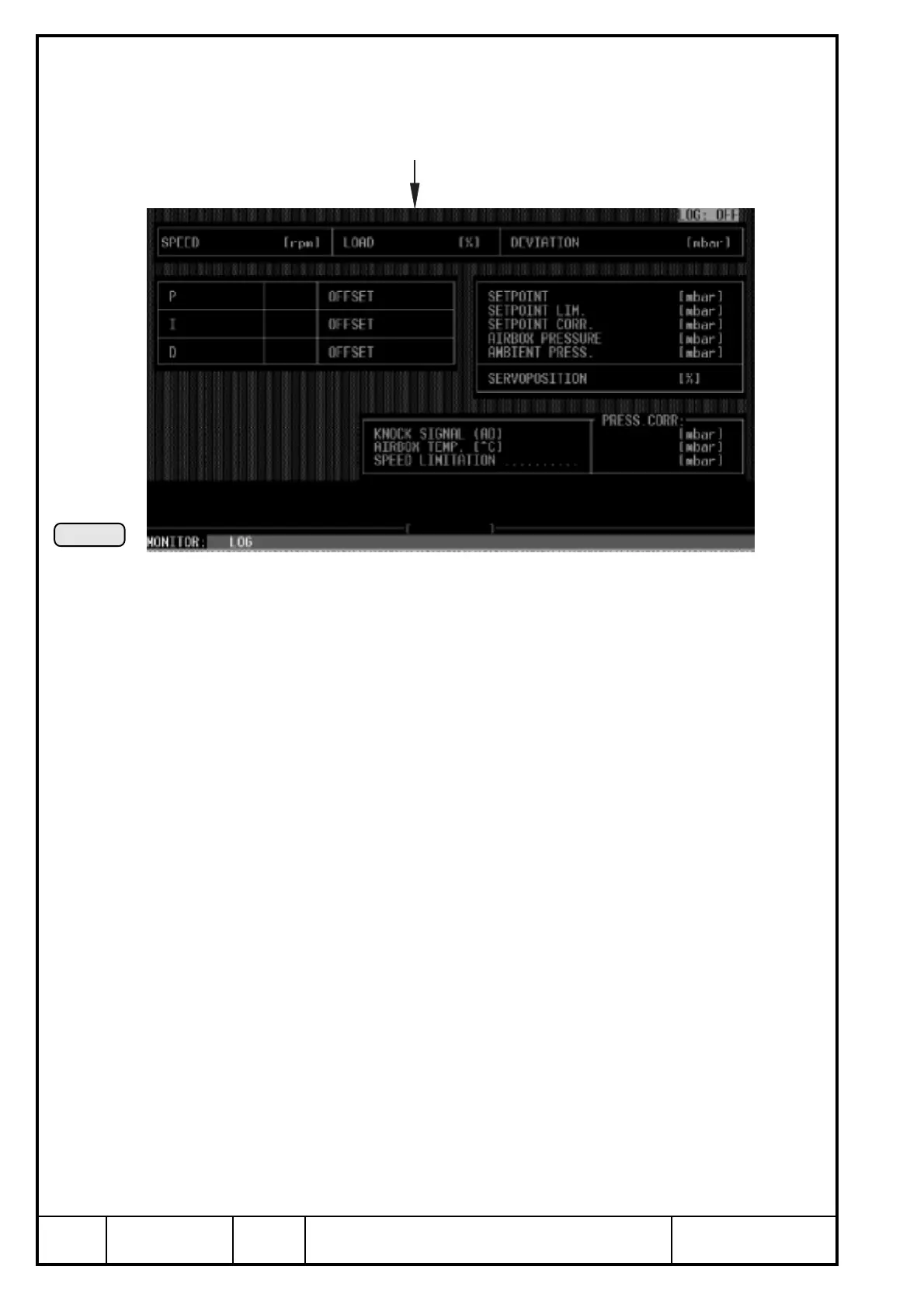

Ill. 42
