5. Basic Knowledge
1-26
Solution configuration display area
A solution configuration diagram of the program currently selected is displayed. The solution configuration diagram
consists of the stations listed below. Refer to p. 1-22 for their positions, etc.
・ Reagent stations (Station numbers 1 ~ 10) ・ Paraffin stations (Station numbers 11 ~ 14)
・ Cleaning Xylen station (Station number C1) ・ Cleaning alcohol station (Station number C2)
The station number, processing time and solution name are shown at each station. Each station is shown in the
color preregistered for the solution group.
A caution icon is displayed depending on the condition of each station.
Tissue Processing button
Select a program and touch this button, and the instrument will proceed to the solution level check process.
Message display area
Information of the next operation is displayed.
LOG ON/LOG OFF button
Touch LOG ON and enter the password, the screen will accept operation inputs. When the instrument is logged
off, none of the buttons except for LOG ON can be touched. Once the password is entered, the button changes
to the LOG OFF.
Caution button
Touch this button, when it is displayed, and cautionary information regarding an event currently in progress or
present, or a message urging solution change, etc., will be displayed.

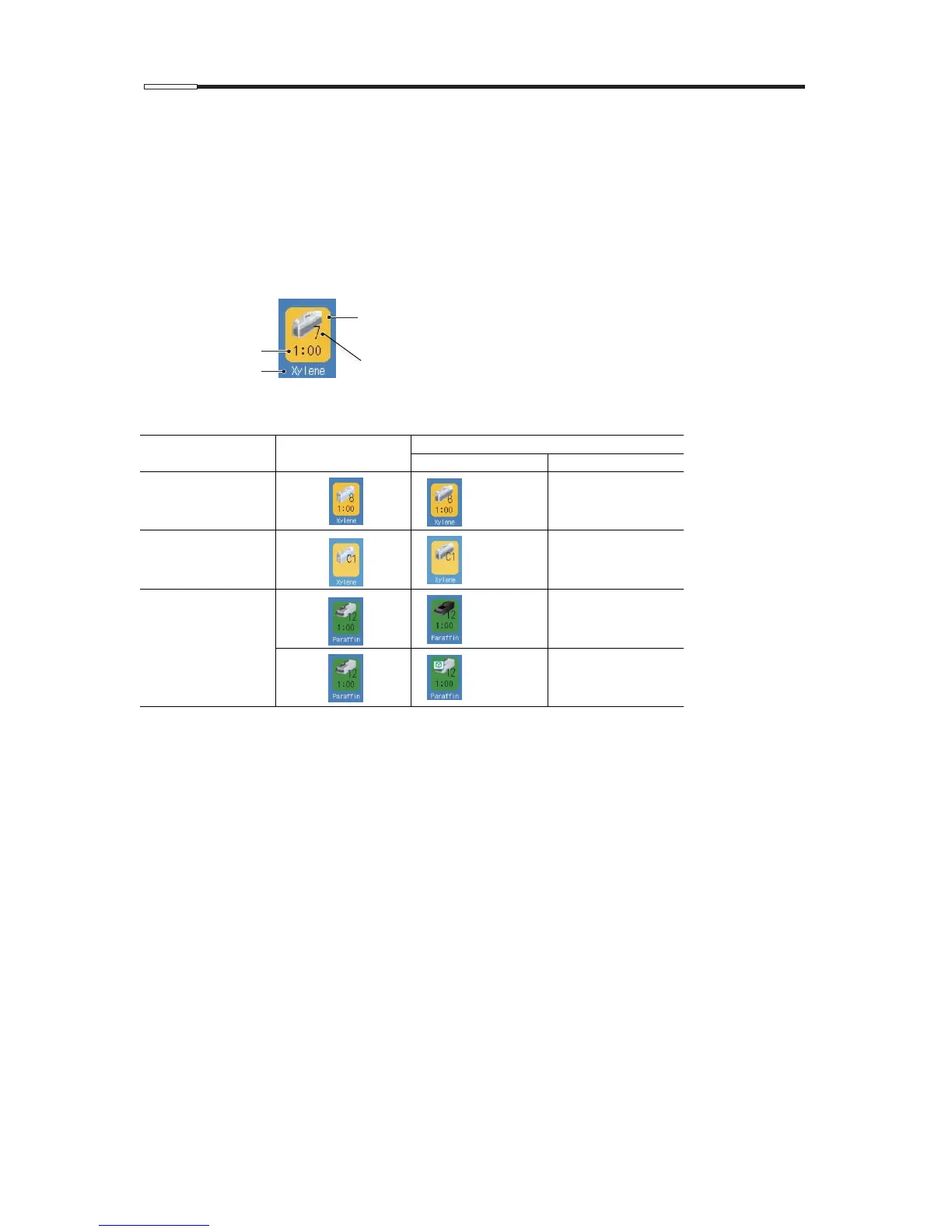

Station colors: When the instrument is standing by, the stations
are shown in the color set for the solution group.
During processing, only the station where
processing is actually performed is shown in blue.
Station number
Processing time
Solution name
