Samsung DVM PLUS III User Manual

Indoor Units
II-60
5
5
Slim duct

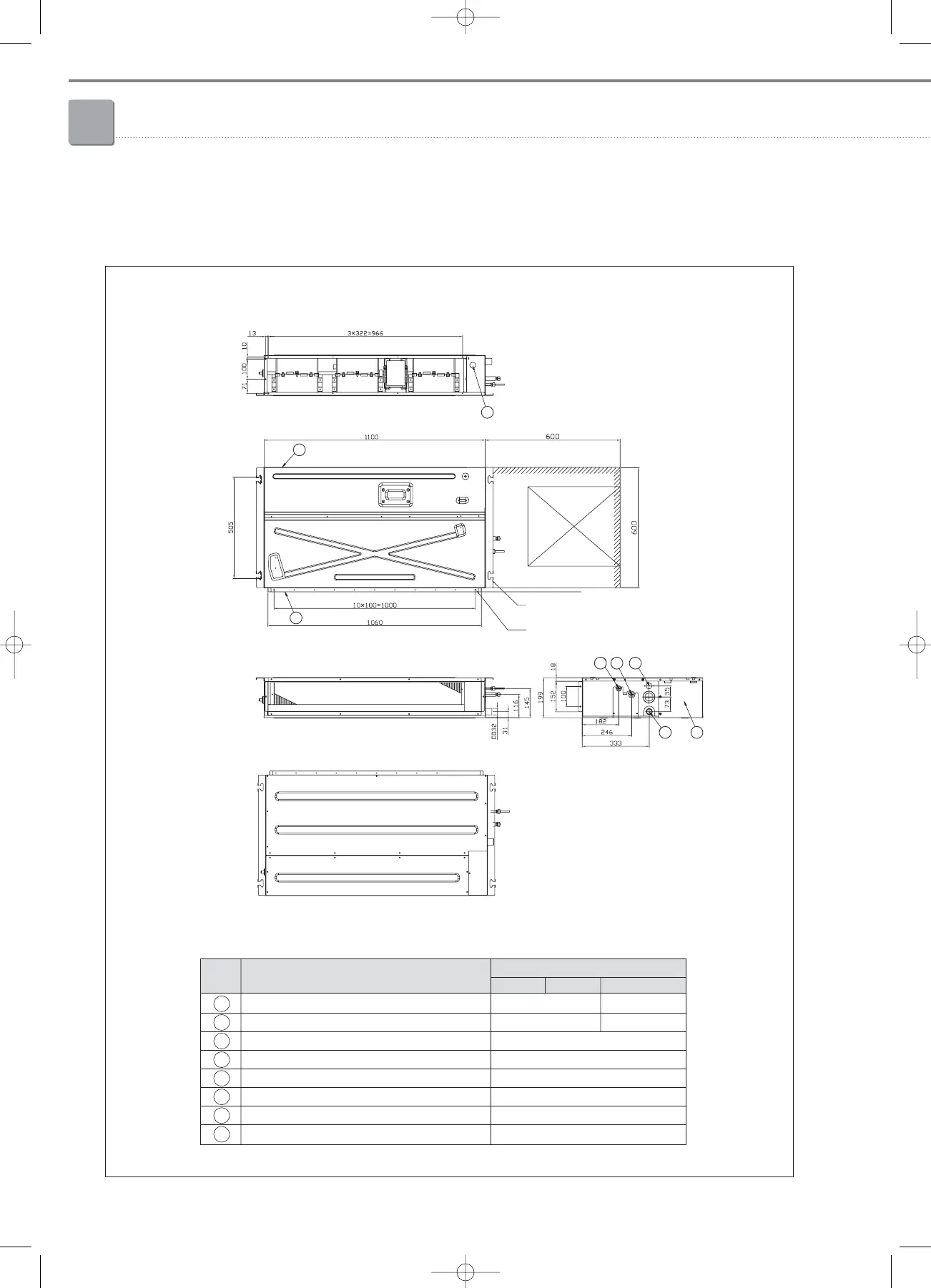

5-4. Dimensional drawing
2) AVXDSH045/056/071E✴
6
1
2
3
4
5
7
8
Suspenslon bolts(M8~M10) X 4EA
Duct flange connection bolts(M4) X 26EA
Unit:mm
No. Name
Description
1 Liquid pipe connection Ø6.35 Flare Ø9.52 Flare
2 Gas pipe connection Ø12.70 Flare Ø15.88 Flare
3 Drain pipe connection without optional drain pump kits VP25(OD 32, ID 25)
4
Drain pipe connection with optional drain pump kits Quick lock
5 Control unit -
6 Conduit for power supply & communication wiring -
7 Return air side -
8 Air outlet duct flange -
4.5kW 5.6kW 7.1kW
chapter2_Indoor units(052~107) 3/14/08 22:15 Page 60
