2-5. S-NET
II
Plus (MST-S1P)
1) System overview
(1) Overview
• S-NET II Plus
Central management PC program specifically designed to manage system air conditioners
• Applicable sites
System air conditioners installed on sites such as universities and residential and commercial complexes.
It is possible to control and monitor max. 256 indoor unit groups and max. 4,096 individual indoor units.
• Advantages of S-NET II Plus
- Able to control a number of indoor units with simple operation.
- Able to monitor and control indoor units in 1 room, 16 rooms, 256 rooms through control screen.
- Able to establish the zones to ensure user convenience, thus to control all indoor units by zones.

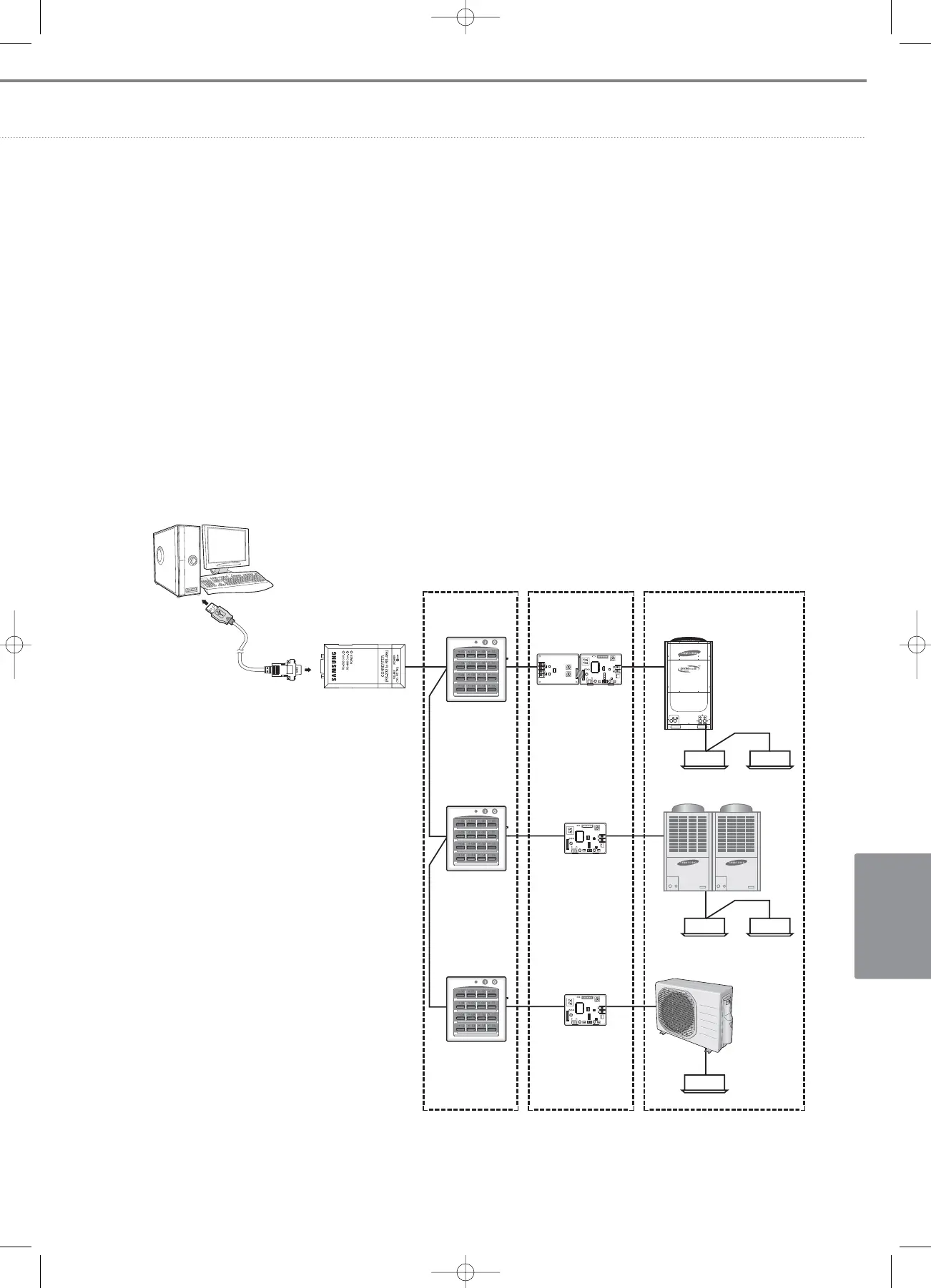

(2) System connection
Centralized
controller
MIM-C02
S-NET II Plus
Interface
module
Indoor/
Outdoor units
DVM PLUS
II
DVM
PLUS
1:1 CAC
