Samsung DVM PLUS III User Manual

III-267
O
UTDOOR
U
NITS
1
2
3
4
5
6
7
8
18
17
16
14
15
10
9
11
12
13
(Pitch of the foundation bolt holes)
(Pitch of the foundation bolt holes)
Center of Gravity
Unit:mm
No. Name Description
1 Gas pipe connection Ø57.10, 1m knock-out hole
2 High pressure gas pipe connection Ø57.10, 1m knock-out hole
3 Liquid pipe connection Ø37.10, 1m knock-out hole
4 Oil balance pipe connection between units Ø32.10, 1m knock-out hole
5 Power & communication wiring conduit Ø34.50, knock-out hole hole-front
6 Power & communication wiring conduit Ø34.50, knock-out hole hole-front
7 Power & communication wiring conduit Ø43.70, knock-out hole hole-front
8 Power & communication wiring conduit Ø43.70, knock-out hole hole-front
9 Power & communication wiring conduit Ø43.70, knock-out hole hole-side
10 Power & communication wiring conduit Ø34.50, knock-out hole hole-side
11 Power & communication wiring conduit Ø34.50, knock-out hole hole-side
12 Power & communication wiring conduit Ø34.50, knock-out hole hole-side
13 Power & communication wiring conduit Ø34.50, knock-out hole hole-side
14 Power & communication wiring conduit Ø27.80, knock-out hole hole-side
15 Power & communication wiring conduit Ø34.50, knock-out hole hole-side
16 Pipe connection through base Pipes connection opening with cover
17 Condensate drain holes Ø20mm-2 holes
18 Foundation bolts positions 4-12 x 20 slit-hole

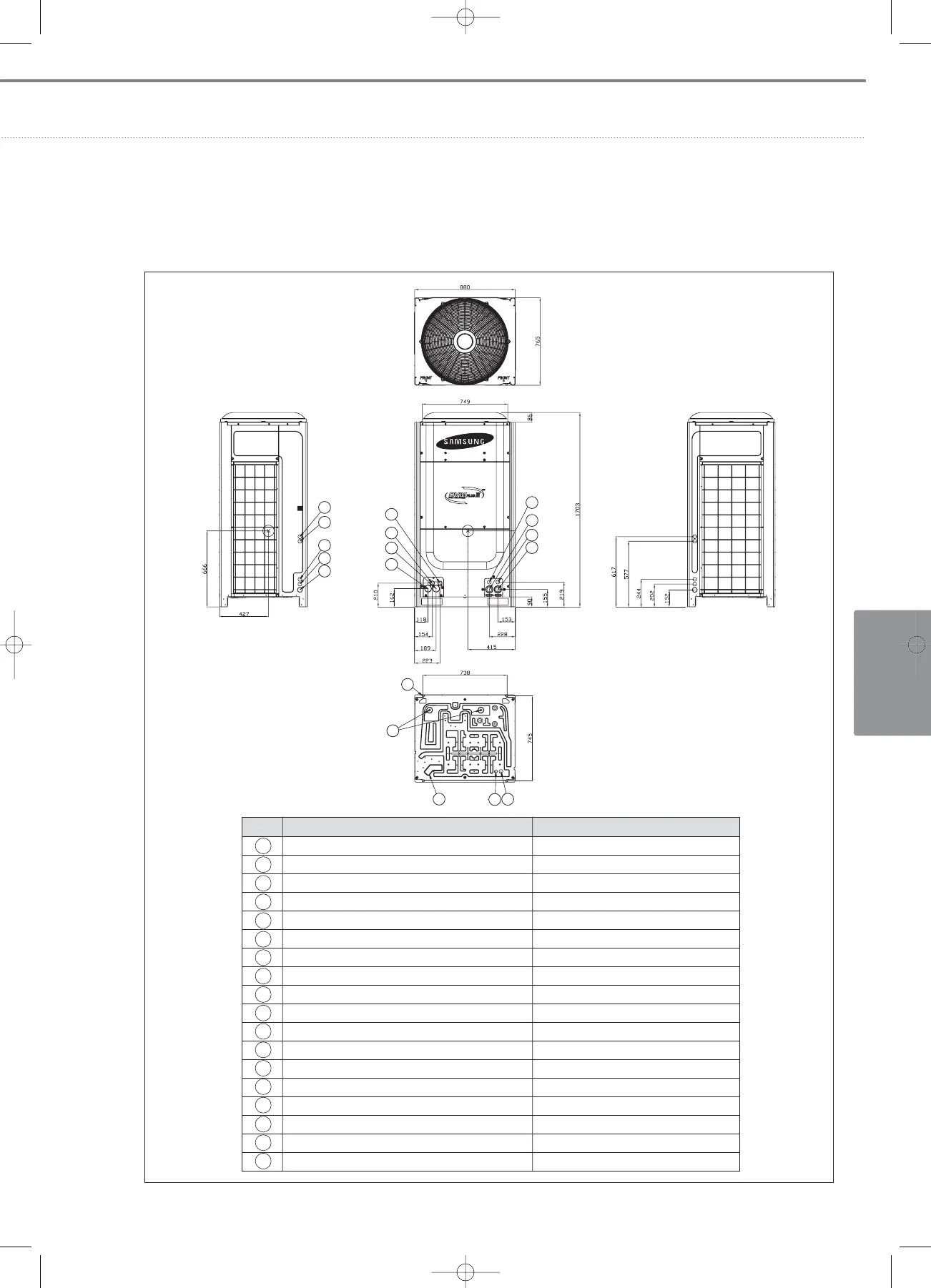

1-4. Dimensional drawing
1) RVXVHT080/100/120GE
RVXVRT080/100/120GE
