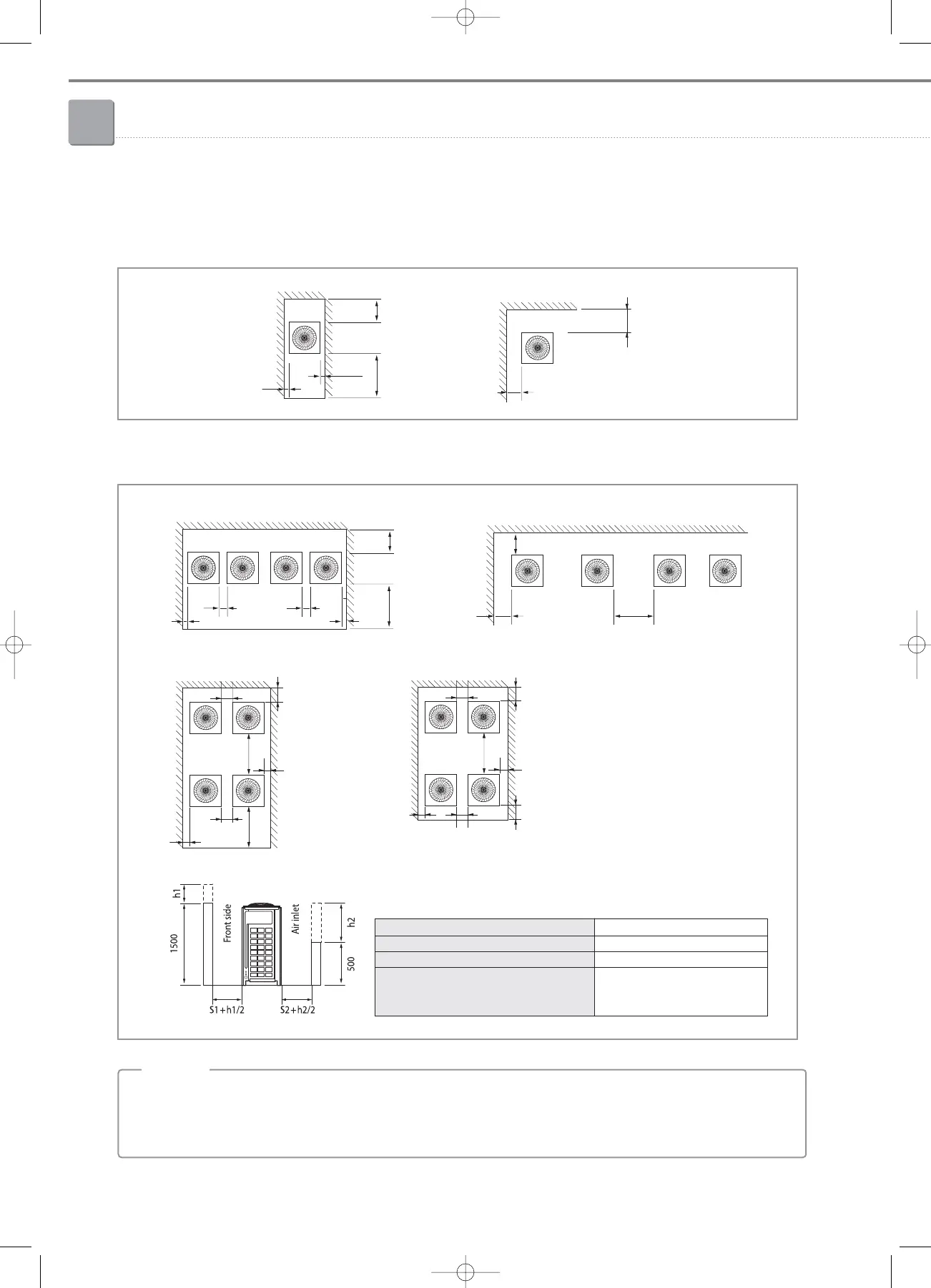

1-3. Space requirements (Service space)
1) Single installation
2) Group installation
300 or
more(S2)
300 or more
200 or more
500 or
more(S1)
10 or more
10 or
more
Front
300 or
more (S2)
500 or
more (S1)
10 or
more
10 or
more
10 or
more
10 or
more
20 or more 20 or more
20 or more
20 or more
20 or
more
600 or more
10 or
more
300 or
more
300 or
more
300 or
more
500
or
more
500 or more
10 or
more
20 or more
300 or more
200 or more
400 or
more
Front
Front
Front
Front
Front
Front
Wall height unrestricted
Wall height unrestricted
If the height of the wall exceeds the above
value, more space should be added to the
front and rear space individually.
Front wall height 1500 mm and less
Rear wall height 500 mm and less
Side wall height Height unrestricted
Front : S1 + h1/2, Rear : S2 + h2/2
◆ The suggested installation above has concerned minimum installation space.
◆ To secure enough service space and performance of system, take account of more sufficient space.
◆ The required minimum space between outdoor units for service and performance of system is 100 mm at least.
;
NN
NN
oo
oo
tt
tt
ee
ee
(Unit: mm)
(Unit: mm)
