Samsung DVM PLUS III User Manual

Outdoor Units
III-310
2
2
Mini DVM

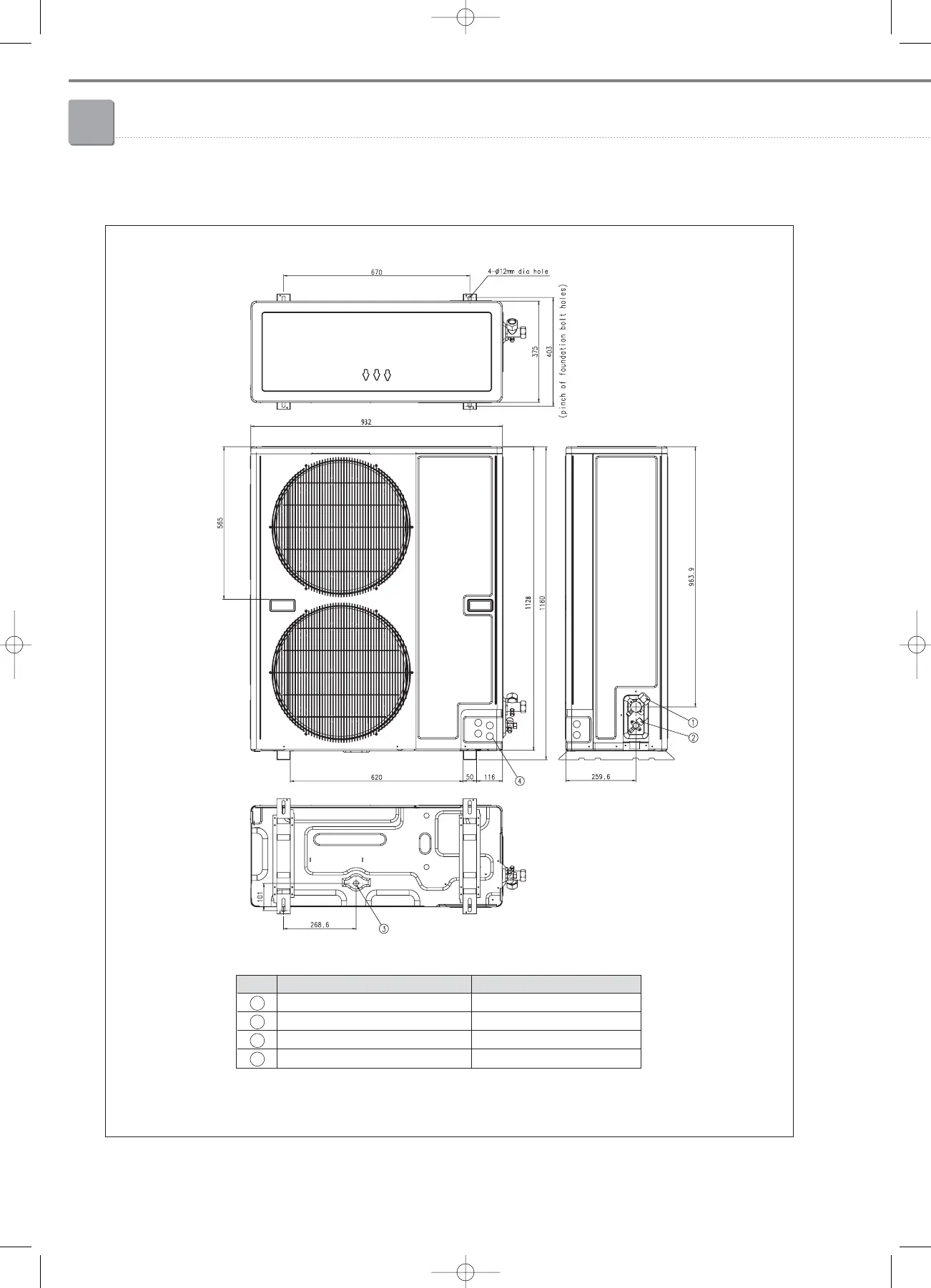

2-4. Dimensional diagram
Unit:mm
No. Name Description
1 Gas pipe connection Ø9.52(4/5/6HP)
2 Liquid pipe connection Ø15.88(4/5HP), Ø19.05(6HP)
3 Condesate drain hole Ø20
4 Power&Communication wiring conduit Ø27.8x6
3-2.mini_Outdoor unit(294~321) 3/15/08 4:06 Page 310
