Samsung DVM PLUS III User Manual

II-81
I
NDOOR
U
NITS

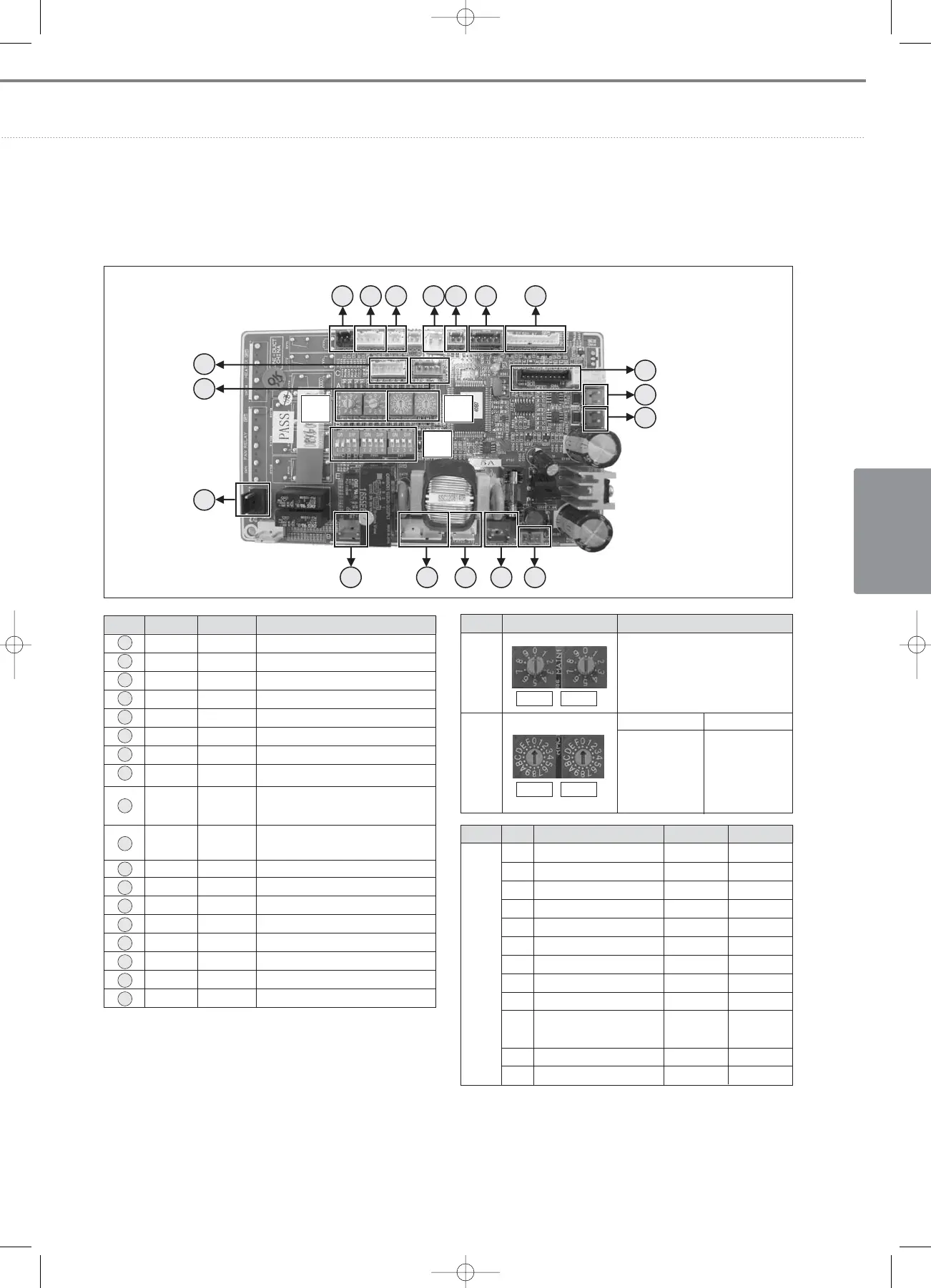

6-5. PCB connector lay-out
1) AVXDUH056/071/090E✴
1 2 3 4 5 6 7
8
9
10
11121314 18
15
17
16
A
C
B
No. CN # COLOR FUNCTION
1 CN51 Black Float Switch
2 CN41 White Room Sensor, Eva-In Sensor
3 CN42 White Eva-Out Sensor
4 CN32 White DC12V for Wired Remote Controller
5 CN83 Red External Contact Control
6 CN62 Blue EEV
7 CN91 White Display
8 CN10 Black MICOM Download
9 CN31 Red
Communication with
Outdoor Units (COM1)
10 CN33 Blue
Communication with Wired
Remote Controller (COM2)
11 CN11 Red Trans-Out (AC 17V)
12 CN71 Blue AC 230V Input
13 CN72 White Trans-In (AC 230V)
14 CN77 Red Hot Water Coil
15 CN81 Red
Error Check, Indoor unit Operation
16 CN74 Yellow Drain Pump
17 CN75 Black Ventilator
18 CN78 White Fan Motor
C
No. S/W FUNCTION ON OFF
K1 - - -
K2 Centralized Controller Not use Use
K3 RPM Up N/A N/A
K4 Optional Drain Pump Not use Use
K5 Heating Thermo-off +2°C +5°C
K6 Filter Signal Display 1,000hrs 2,000hrs
K7 Hot Water Coil Not use Use
K8 Electrical Heater N/A N/A
K9 Min. EEV Step at Heating Fixed 80 step 0 or 80 step
K10
Priority of Indoor unit Display
Slave
on Wired Remote Controller
(Default)
Master
K11 External Contact Control Not use Use
K12 - - -
A
B
No.
SW01 SW02
S/W
Main Address Setting
(00~63)
FUNCTION
SW03 SW04
SW03
Address of
Interface
Module
Channel 0~2
SW04
Group Address
(RMC) for
Centralized
Control 0~F
chapter2_Indoor units(052~107) 3/14/08 22:15 Page 81
