Control Systems
V-74
2
2
Centralized control system
2-5. S-NET
II
Plus (MST-S1P)

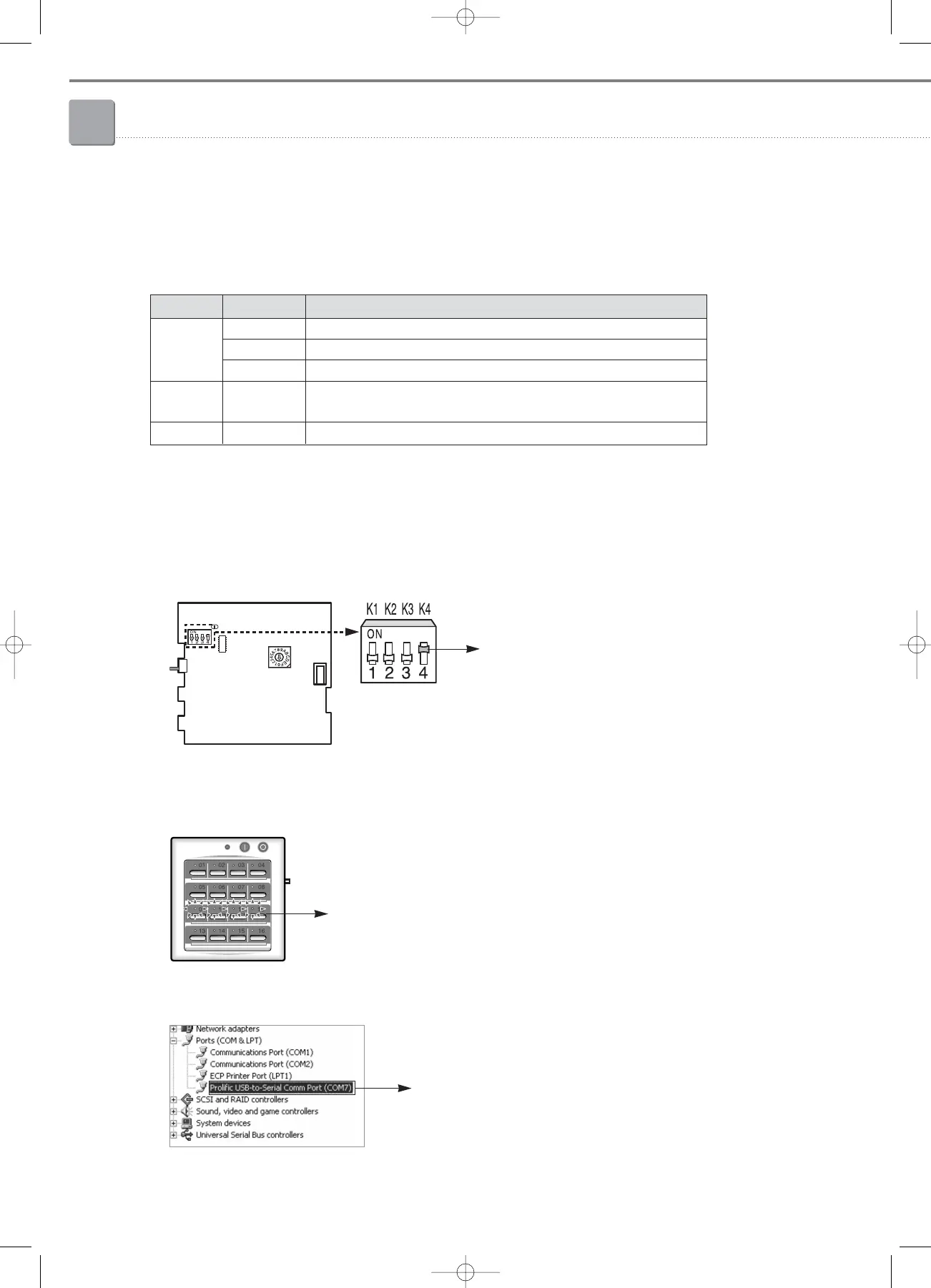

(3) Product specification
(4) Check up details before installation
Ô Check if centralized controller operates normally.
• Check if the communication between centralized controller and interface module is normal.
• If there is any communication error between centralized controller and I/M, it does not operate in S-NET II Plus.
• When centralized controller MCM-A202A is in use, set the option switch K4 to ON.
• When an option switch for centralized controller is not set, centralized controller displays an error
(S-NET II Plus : 2400bps, Centralized controller: 9600bps).
Ô Check if the Serial port operates without a problem.
• Check the Ports at My computer
➔
Hardware
➔
Device Manager.
Details
Pentium III 500MHz or above
Item
PC
OS
Display
Model
CPU
More than 512MB
Memory
10/100M Ethernet
Windows NT, Window 2000, Windows XP
❈ It may not operate in Windows 95, 98, ME.
Network
More than 1024 x 768
Set the No. 4 Switch to ON.
Rotational flash
S-NET II Plus supports the serial port COM1, 2, 3 and 4 only
Set an option switch if MCM-A202A centralized controller is put to use.
NN
NN
oo
oo
tt
tt
ee
ee
S-NET II Plus is not supported when MCM-A202A is connected to the
interface module, MIM-B13A.
