Control Systems
V-94
3
3
Integrated management system
3-1. DMS (Data Management Server)

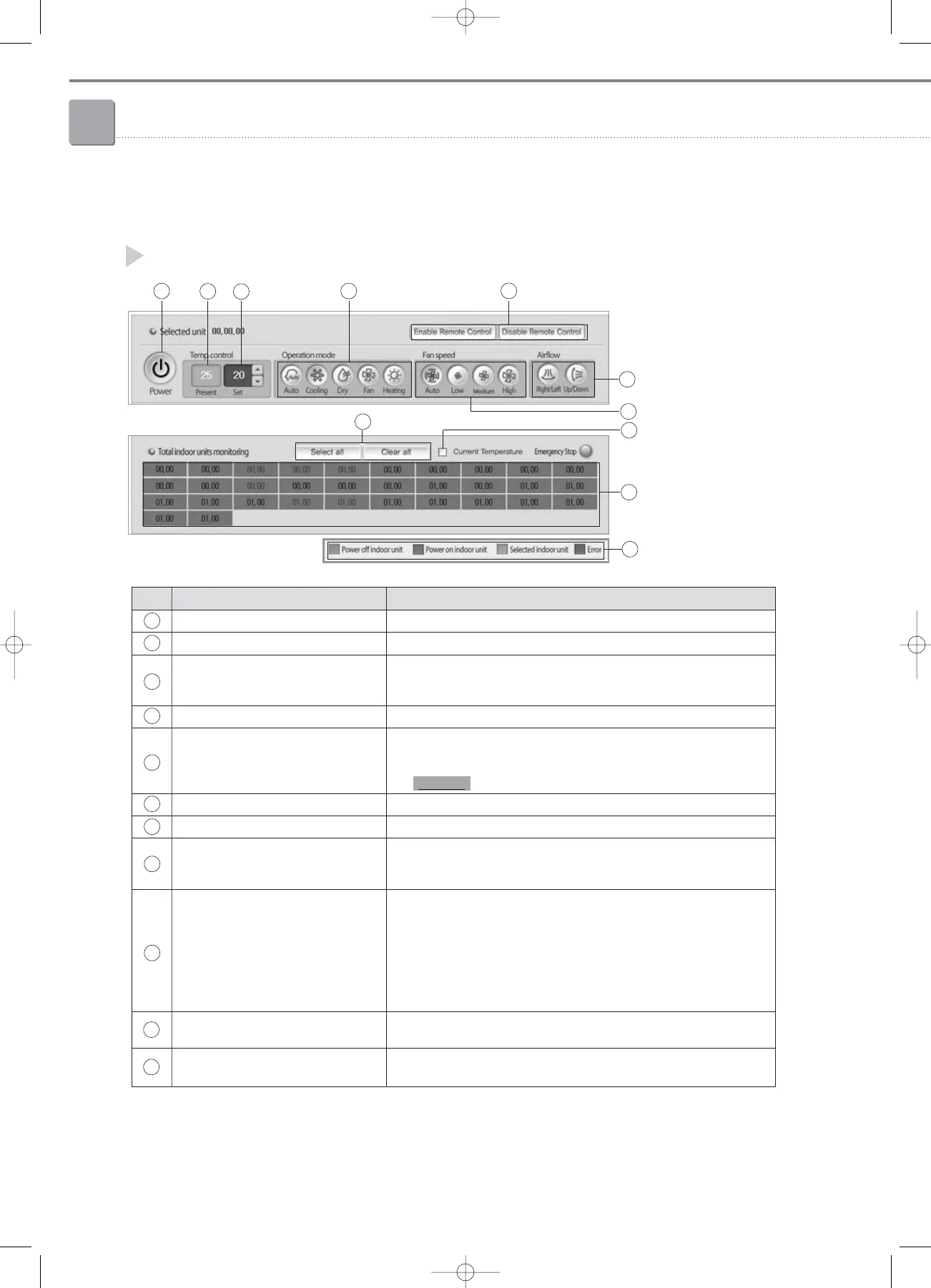

Main control panel
1
2
3
4
5
6
7
8
10
11
9
No. Function Description
ON/OFF control ON/OFF control of indoor units.
Room temperature Current room temperature of the selected indoor unit.
Temperature setting with UP/DOWN arrows.
Set temperature Cooing mode : 18 ºC ~ 30 ºC
Heating mode : 16ºC ~ 30 ºC
Operation mode Auto, Cooling, Dry, Fan, Heating
The use of wired/wireless remote controllers are prohibited or permitted.
Remote control use
When remote controllers are prohibited, lines are drawn under the
button names.
Ex)
Air flow direction Left/Right, Up/Down
Fan speed Auto, Low, Medium, High
By pressing the desired indoor unit buttons, button colors are changed to
Indoor unit selection green. Multiple indoor unit are selected by pressing the Ctrl key and indoor
unit button together.
Gray : Indoor unit stop
Blue : Indoor unit operation
Red : Error occurrence.
State display
This includes local indoor/outdoor unit errors or communication error.
For example, when communication error occurs between the
centralized controller and the interface module, all the indoor units
under the interface turns red on the web page.
Green : Indoor unit selected.
Room temperature display
Room temperature of all indoor units are displayed instead of
indoor unit names.
Whole selection
Select all : All indoor units are selected and turned green.
Clear all : All indoor units are deselected and turn to the last state.
1
2
3
4
5
6
7
8
10
11
9
