Branch joints
2-2. Y-joints
1) Models
Model name Total indoor unit’s capacities
MXJ-YA1500✴ 23.2 kW and below
MXJ-YA2500✴ Over 23.2~69.6 kW and below
MXJ-YA3100✴ Over 69.6~139.2 kW and below
MXJ-YA3800✴ Over 139.2 kW
HR Only

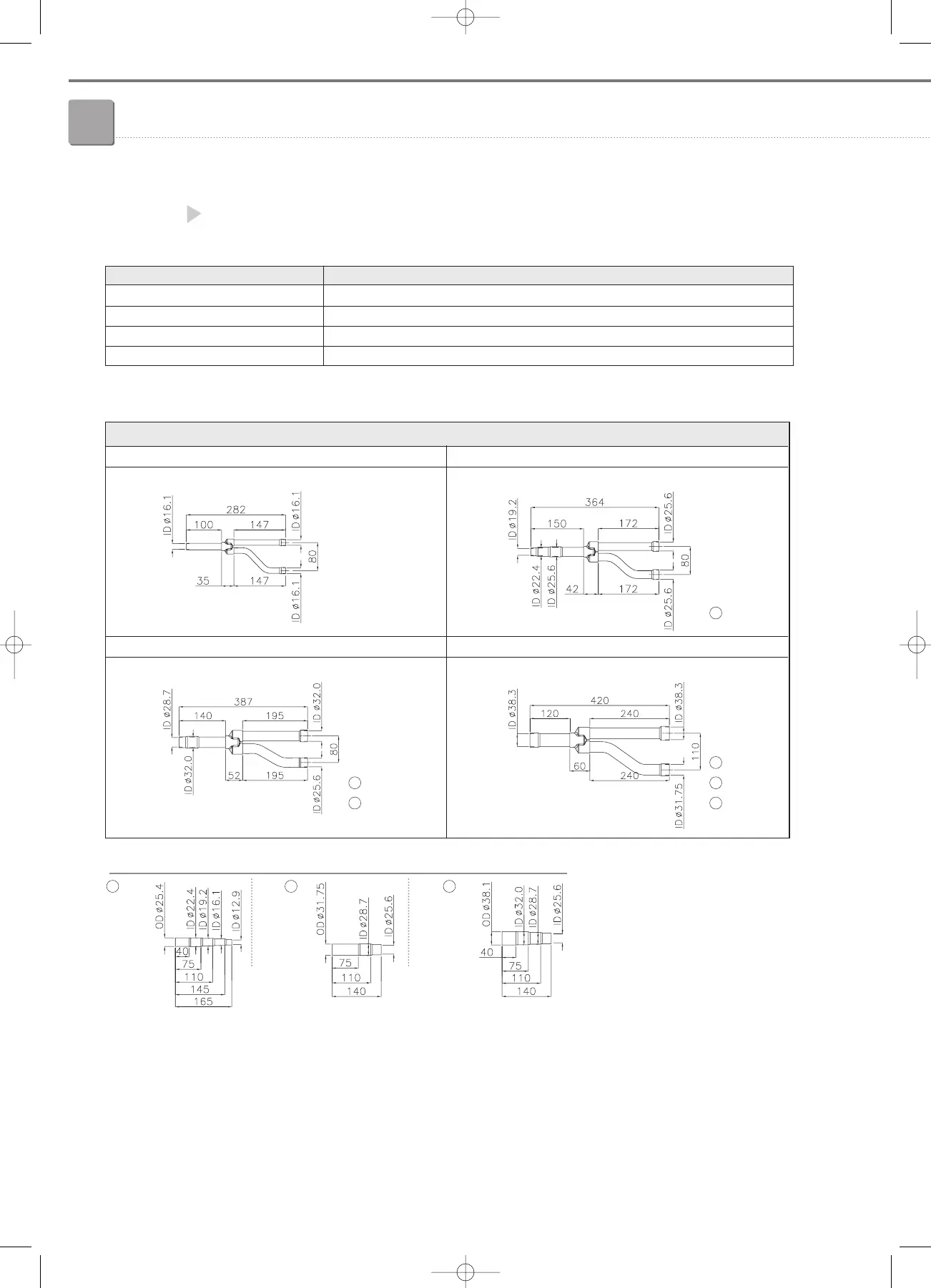

2) Dimensional drawing
High pressure gas
Y-joint for HR (High pressure gas)
MXJ-YA1500
✴
High pressure gas
MXJ-YA2500 ✴
x 2 EA
1
High pressure gas
x 1 EA
MXJ-YA3100 ✴
High pressure gas
MXJ-YA3800 ✴
2
x 1 EA
1
x 1 EA
3
x 1 EA
2
x 1 EA
1
Reducer
1 2 3
