Samsung DVM PLUS III - Dimensional Drawing

Indoor Units
II-10
1
1
Slim 1 way cassette

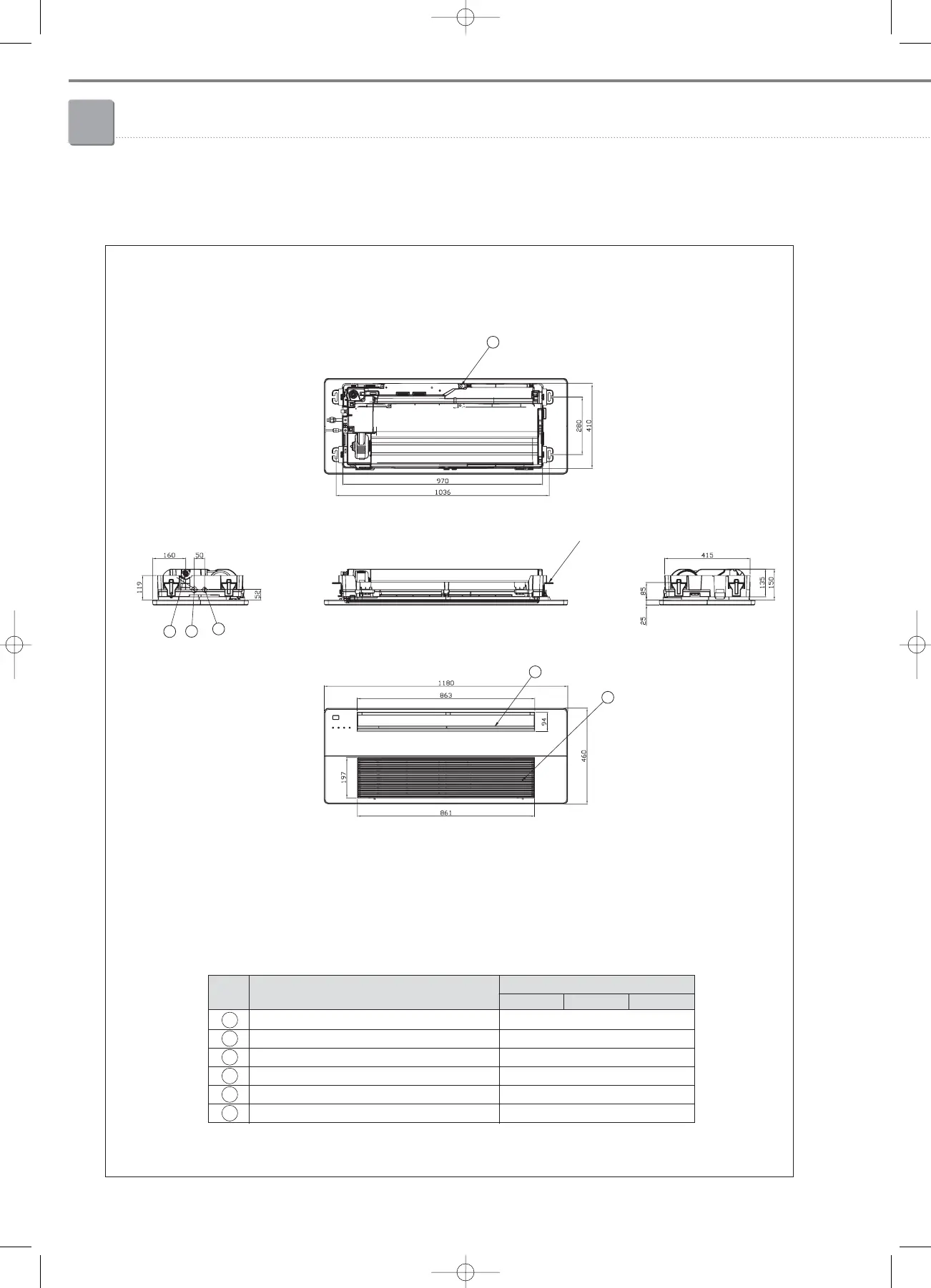

1-4. Dimensional drawing
1
2
3
5
6
4
Suspension bolts(M8~M10) X 4EA
Unit:mm
No. Name
Description
1 Liquid pipe connection Ø6.35 Flare
2 Gas pipe connection Ø12.70 Flare
3 Drain pipe connection VP20 (OD 25, ID 20)
4 Conduit for power supply & communication wiring -
5 Air inlet grille -
6 Air outlet louver -
2.2kW 2.8kW 3.6kW
