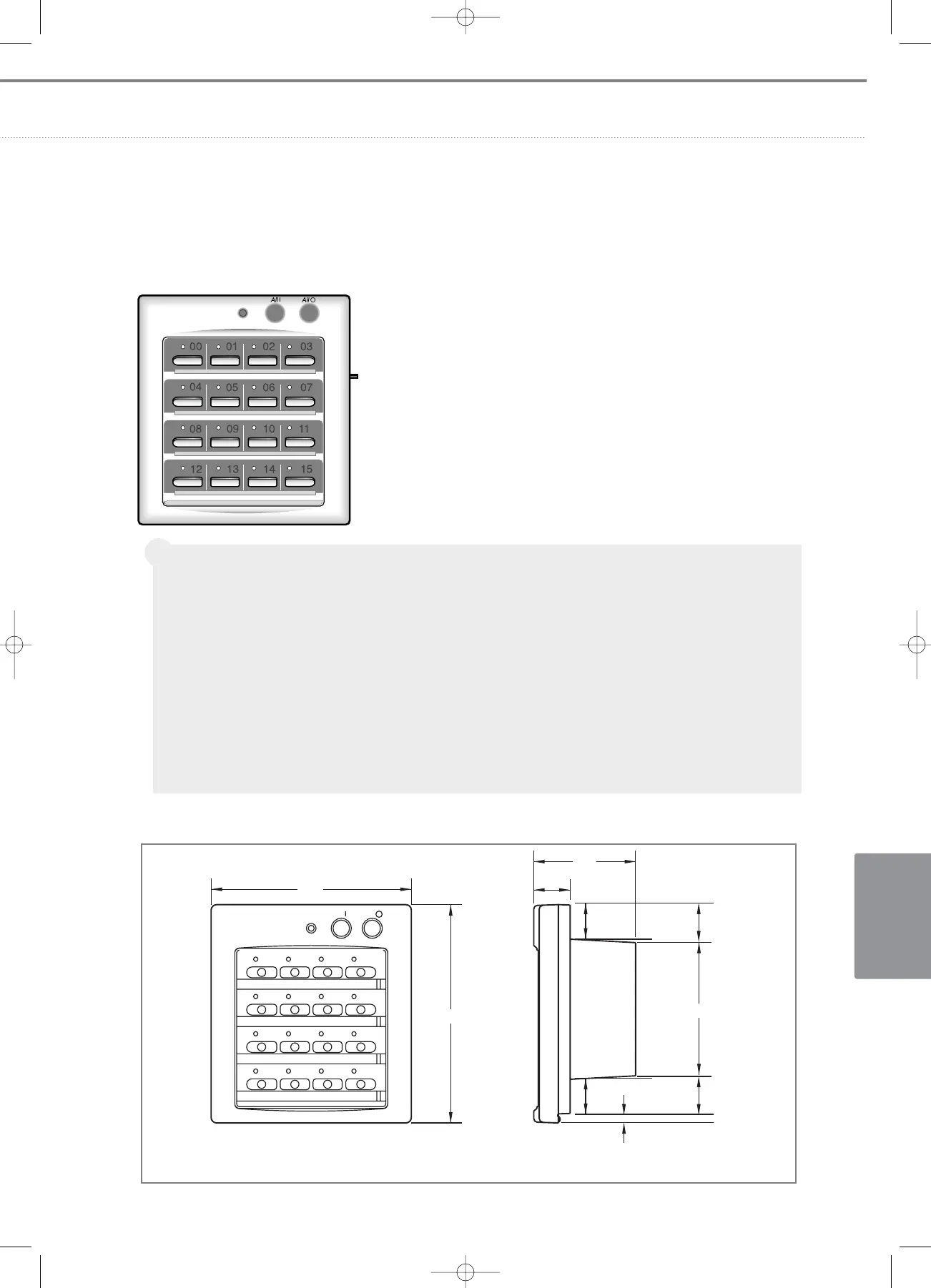

2-2. Centralized controller (MCM-A202A)
1) Features
• Maximum 16-group controller (Max. 256 Indoor units)
• Whole/Individual indoor unit control (On/Off)
• Restriction on the use of wireless/wired remote controllers
• Cooling and heating mode control
• Indoor unit error display
2) Dimensional drawing
Unit : mm
110
120
50
74
20
55
19
20
20
19
5
Specification
• Power supply : AC 220VAC, 50/60Hz
• Power consumption : Max. 5W
• Communication length : Max. 1000m from the end to the other end of RS485 connection
• Interface
- Lower layer : R1/R2 (Interface module, 7-day scheduler)
- Upper layer : C1/C2 (Function controller, DMS, S-NET II Plus, S-NET mini)
NN
NN
oo
oo
tt
tt
ee
ee
S-NET II Plus is not supported when MCM-A202A is connected to the interface module, MIM-B13A.
• Number of interface device
- Interface module : Max.16
- 7-day scheduler : 1
