Individual control system

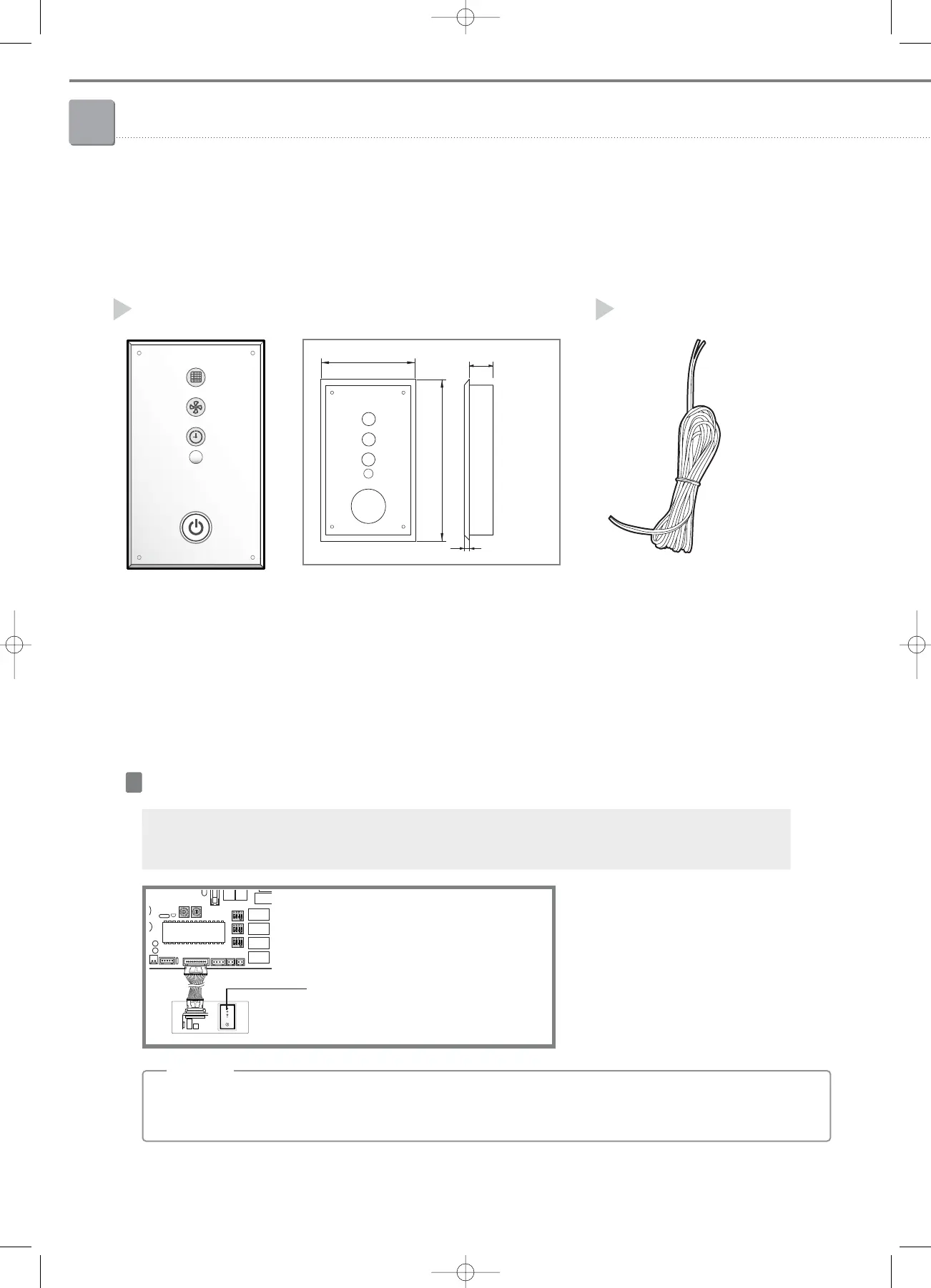

1-1. Wireless signal receiver kit
1) Features
MRK-A00 MRW-10A (Receiver wire)
Wireless signal receiver
• Concealed wireless signal receiver
• Filter replacement sign
• Fan operation display
• Operation Timer setting display
• Operation On/Off button
• Operation On display LED (blue)
• Defrost operation display LED (red)
WIRING
• Connect one end of the receiver wire (MRW-10A) with the receiver kit (MRK-A00).
• Connect the other end of the receiver wire (MRW-10A) with the duck indoor unit PCB (CN91).
Wireless signal receiver (MRK-A00)
Indoor unit PCB
Unit : mm
◆ Wire length : 10m
◆ Receiver kit is only available for a duct indoor unit.
;
