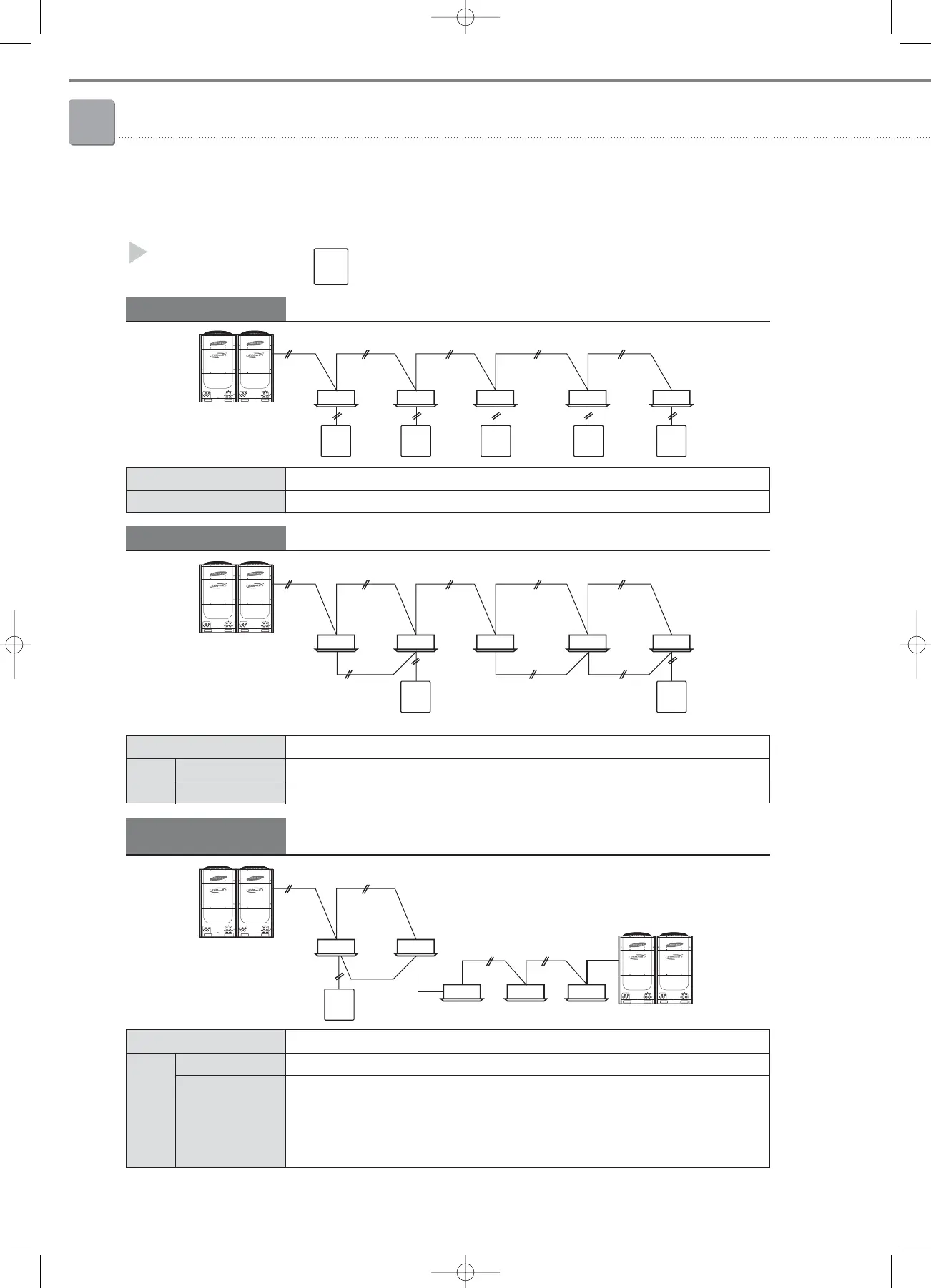

Control Systems
V-28
1
1
Individual control system
1-3. Wired remote controller
Individual control
Control 1 indoor unit with 1 wired remote controller
Control Connected indoor unit
Display Operation status of the connected indoor unit
Group control (1)
Control multiple indoor units with 1 wired remote controller
Control All connected indoor units
Display
MWR-TH01/MWR-SH00
Operation status of one of the connected indoor units on a random basis.
MWR-WS00
Operation status of one of the connected indoor units which has the earliest Main address.
Control All connected indoor units
MWR-TH01/MWR-SH00
Operation status of one of the connected indoor units on a random basis.
Operation status of one of the connected indoor units by the following standard.
Display
- In case that all the Main addresses are different : displays the indoor unit which has the earliest Main address.
MWR-WS00
- In case that there exist the overlapped Main addresses and they are the earliest :
displays one of them on a random basis.
- In case that there exist the overlapped Main address and they are not the earliest :
displays the indoor unit which has the earliest Main address.
Group control (2)
Control multiple indoor units connected to different outdoor units
with 1 wired remote controller
Indoor unit
Outdoor unit
Wired R/C
Wired
R/C
F1/F2
F3/F4
Indoor unit
Max. 16 indoor units can be connected.
Max. 16 indoor units can be connected.
Outdoor unit
Wired R/C
F1/F2
F3/F4
Indoor unit
Outdoor unit
Outdoor unit
Wired R/C
F1/F2
F3/F4
Connection examples
• MWR-TH01
• MWR-WS00
• MWR-SH00
