Integrated management system
3-1. DMS (Data Management Server)

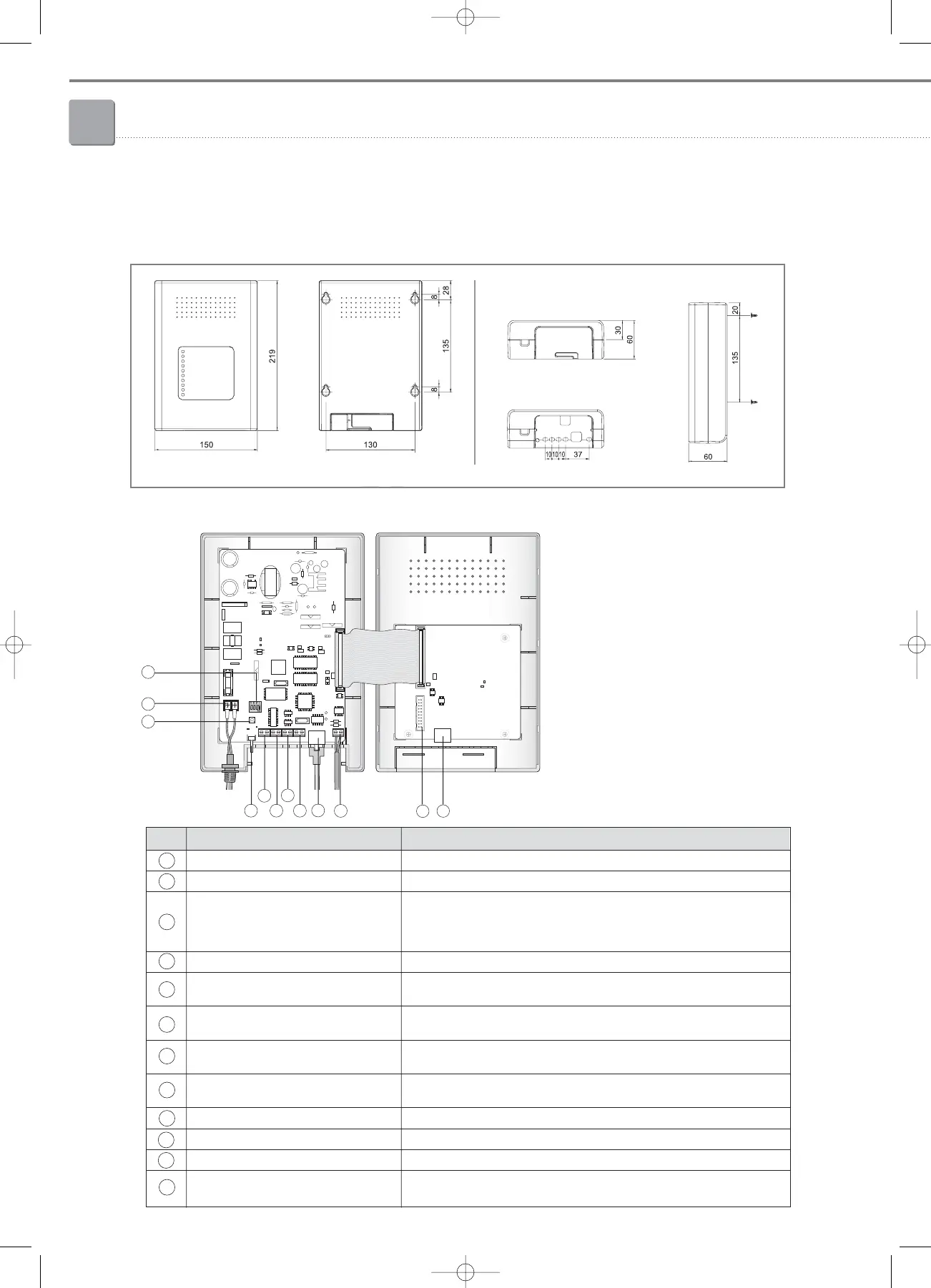

(4) Dimensional drawing
(5) Buttons and connectors
Unit : mm
No. Name Description
Option switch Option switch for specification on external input to DMS
Power terminal Power supply to DMS. 100V~240V, 50/60Hz
Press IP reset button for 5 seconds to reset DMS IP to default 192.168.0.2.
IP reset button
All LEDs are turned off during OS booting after IP reset (Linked LED is not
affected if LAN connection is made.) This button is useful when installers
forgot the set DMS IP.
Reset button Press the reset button to restart DMS
External input port DI-2
All indoor unit operation and wired/wireless remote control use
are controlled according to the option switch setting.
External input port DI-1
All indoor unit operation and wired/wireless remote control use
are controlled according to the option switch setting
External output port DO-2
DC signal voltage is output in case of error in more than one indoor unit and
outdoor unit. Output voltage : 12VDC, 500mA
External output port DO-1
DC signal voltage is output in case more than one indoor unit start to
operate. Output voltage : 12VDC, 500mA
LAN connector LAN connection with upper-layer devices.
RS485 communication port RS485 connection with centralized controllers (polarized).
Debugging connector1 Reserved
Debugging connector2
Used for system debugging of DMS operation, configuration and data
management.
