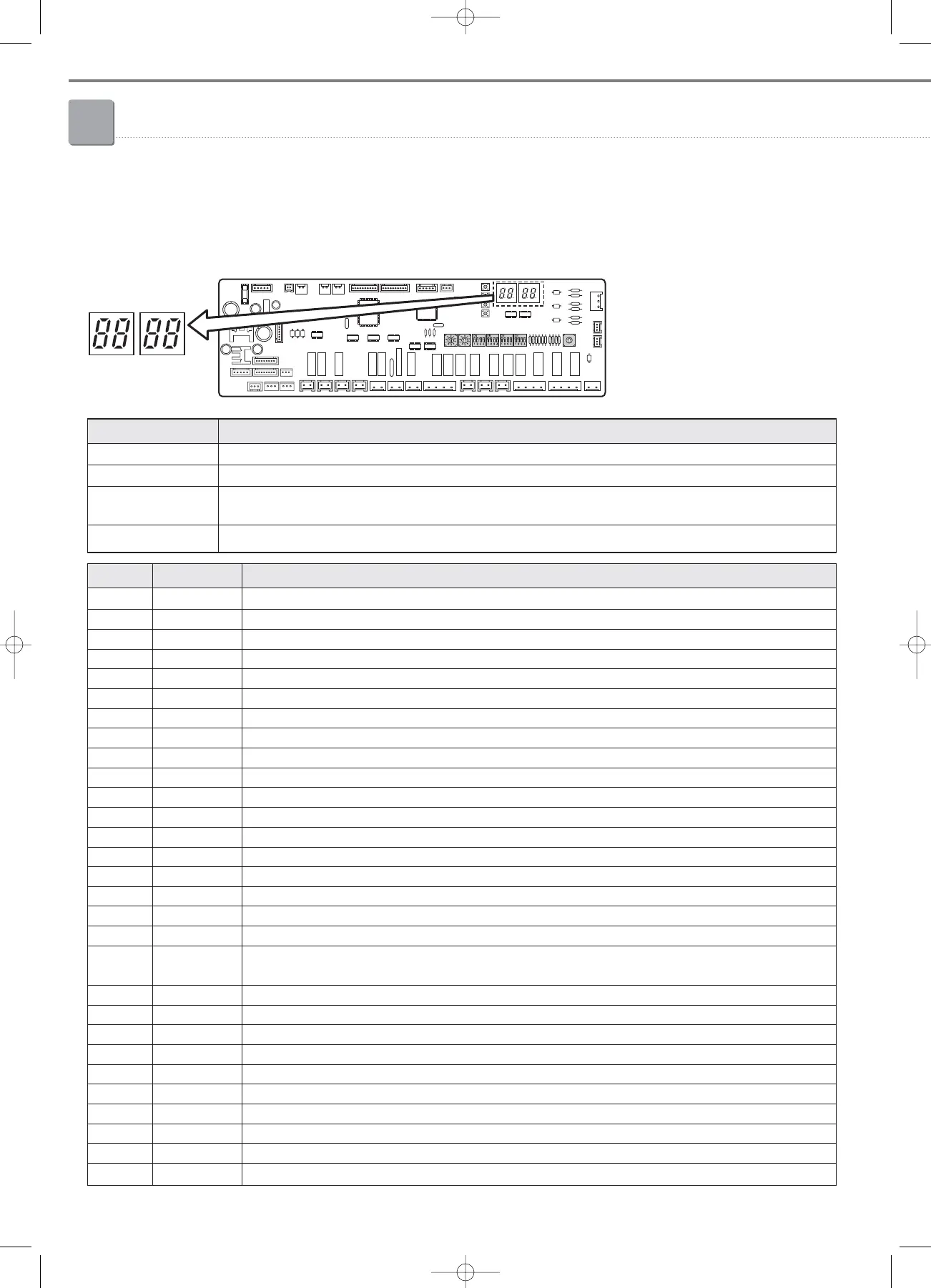

1-9. Error codes
E It displays from error 101 to error 700.
P It displays from error 701 to error 800.
U
It displays the address of outdoor unit.
Ex) U200 : Outdoor unit 1, U201: Outdoor unit 2, U202: Outdoor unit 3, U203 : Outdoor unit 4
A It displays the address of indoor unit. Ex) A000 : Indoor address 1, A001: Indoor address 1, A002 : Indoor address 2
Display alphabet at ①
Description
1 E-101 Communication error in indoor unit. It displays when the indoor unit receives no data from the outdoor unit.
2 E-102 Communication error between indoor and outdoor unit. It displays in indoor unit.
3 E-121 Room temperature sensor of indoor unit. (Open or Short)
4 E-122 Eva_in temperature sensor of indoor unit. (Open or Short)
5 E-123 Eva_out temperature sensor of indoor unit. (Open or Short)
6 E-124 Communication error between indoor and outdoor unit. It displays in outdoor unit.
7 E-125 Mid 2 temperature sensor of indoor unit. (Open or Short)
8 E-128 Eva_in temperature sensor is detached from eva_in pipe of indoor unit.
9 E-129 Eva_out temperature sensor is detached from eva_out pipe of indoor unit.
10 E-130 Eva_in and eva_out temperature sensors are detached from eva_in and out pipes of indoor unit at the same time.
11 E-137 VOC sensor of ERV product. (Open or Short)
12 E-138 Gas sensor of ERV product. (Open or Short)
13 E-139 CO
2
sensor of ERV product. (Open or Short )
14 E-151 EEV opening error of indoor unit (2
nd
detection)
15 E-152 EEV closing error of indoor unit (2
nd
detection)
16 E-153 Floating switch error of indoor unit (2
nd
detection)
17 E-154 RPM feed back error of indoor unit.
18 E-155 RPM feed back error of indoor unit. (The second motor of indoor unit)
19 E-161
Mixed operation mode of indoor units. It occurs when outdoor unit is operating or going to operate in cooling mode
(or heating mode) and then other indoor unit is going to operate in heating mode (or cooling mode).
20 E-162 EEPROM error of MICOM. (Physical damage)
21 E-163 Option code error of indoor unit’s EEPROM.
22 E-167 Option setting error of indoor unit’s dip switch.
23 E-170 Temperature display setting error for USA market product. (Mixed setting with Celsius and Fahrenheit temperature)
24 E-180 Opening error of cooling and heating solenoid valve simultaneously in MCU (1
st
detection)
25 E-181 Opening error of cooling and heating solenoid valve simultaneously in MCU (2
nd
detection)
26 E-185 Cross wiring error between communication and power of indoor unit.
27 E-190 No matching between indoor unit’s address and eva_in sensor in pipe checking operation.
28 E-191 No matching between indoor unit’s address and eva_out sensor in pipe checking operation.
29 E-199 It displays when pipe checking operation is not operated.
No. Error code Description
0
1
2
3
4
5
6
7
8
9
A
B
C
D
E
F
①② ③➃
