I-40
5
5
DVM design process

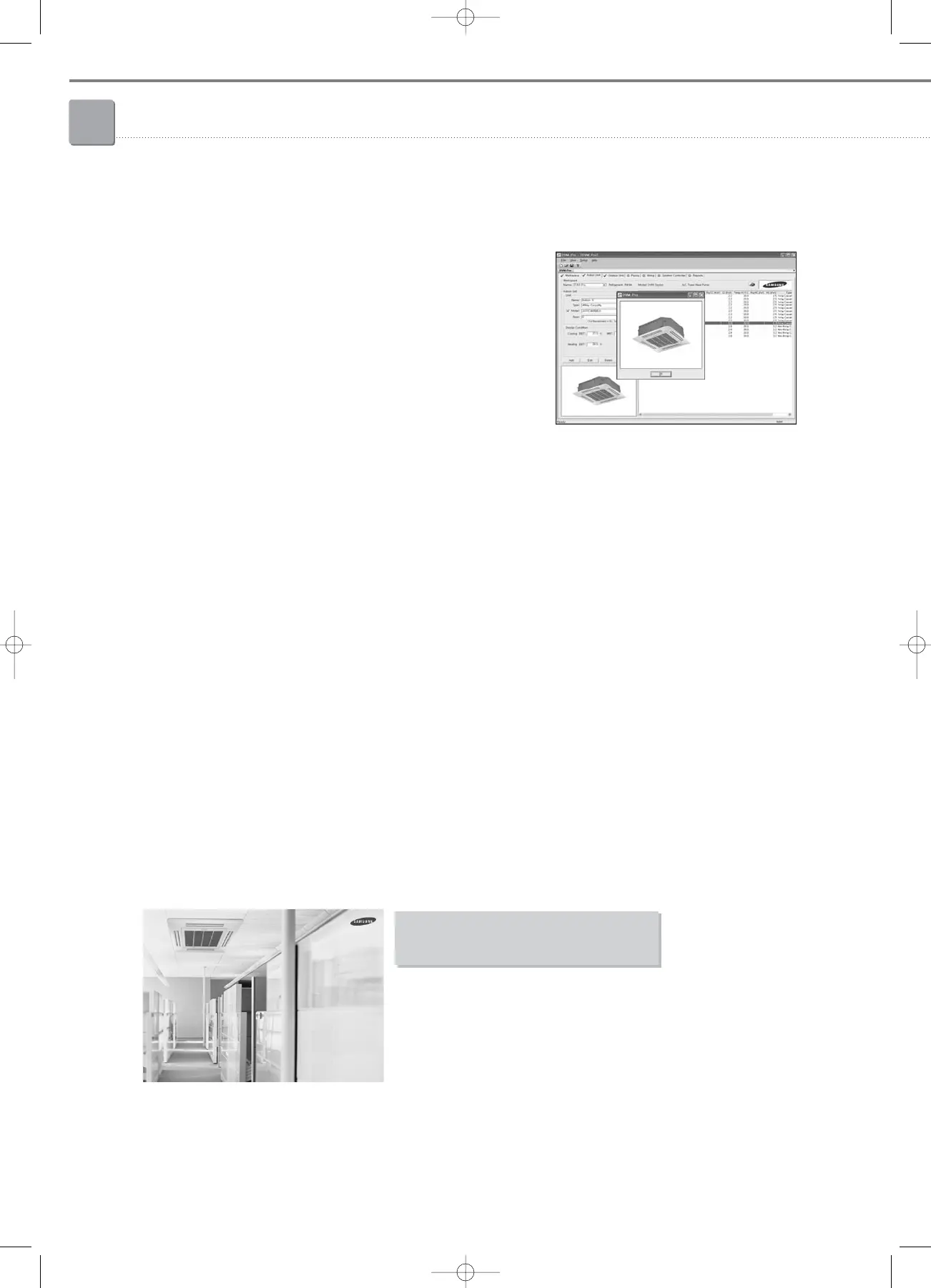

5-3. DVM selection program
In case of a heat pump model, execute the following equipment selection
procedure.
Samsung supplies two kinds of DVM Selection Program called DVM-Pro sales &
CAD mode respectively. DVM-Pro(CAD), developed based on technical data,
will help DVM designer to select DVM products as well as
CAC & FJM. Save Time! Save Effort! And Get the Perfect Technical Results.
1) DVM-Pro (Sales Mode) -Technical databook linked-
Ô Work sequence
Simultaneously
- DVM Series(R22, R407C, R410A), CAC and FJM
Select indoor units
- Manual method : to choose ‘Indoor unit type’ and ‘Model name’
- Automatic method : to choose ‘Indoor unit type’ and ‘Required Cooling and Heating Load’
Select outdoor units
- Automatic selection according to connected indoor units and combination ratio
- Automatic calculation according to design condition
*Design condition : indoor and outdoor temperature, combination ratio, maximum piping length & height,
deforest factor and so on.
Piping diagram
- Basic diagram : Automatic drawing one by one with Y branch joints
- Standard diagram : Automatic drawing half and half indoor units with Y branch joint
- Manual diagram : Manual drawing by user friendly, convenient and powerful function
Wiring diagram
- Automatic diagram with communication and power wiring
Select solution control
- Automatic selection achieved simple method
Print report
- All technical data including equipment list, diagram, and quotation can be printed.
Save - *.dvm file
Download!
www.dvmsystem.com Download Center
1. products(01~41) 3/14/08 22:01 Page 40
