System environment

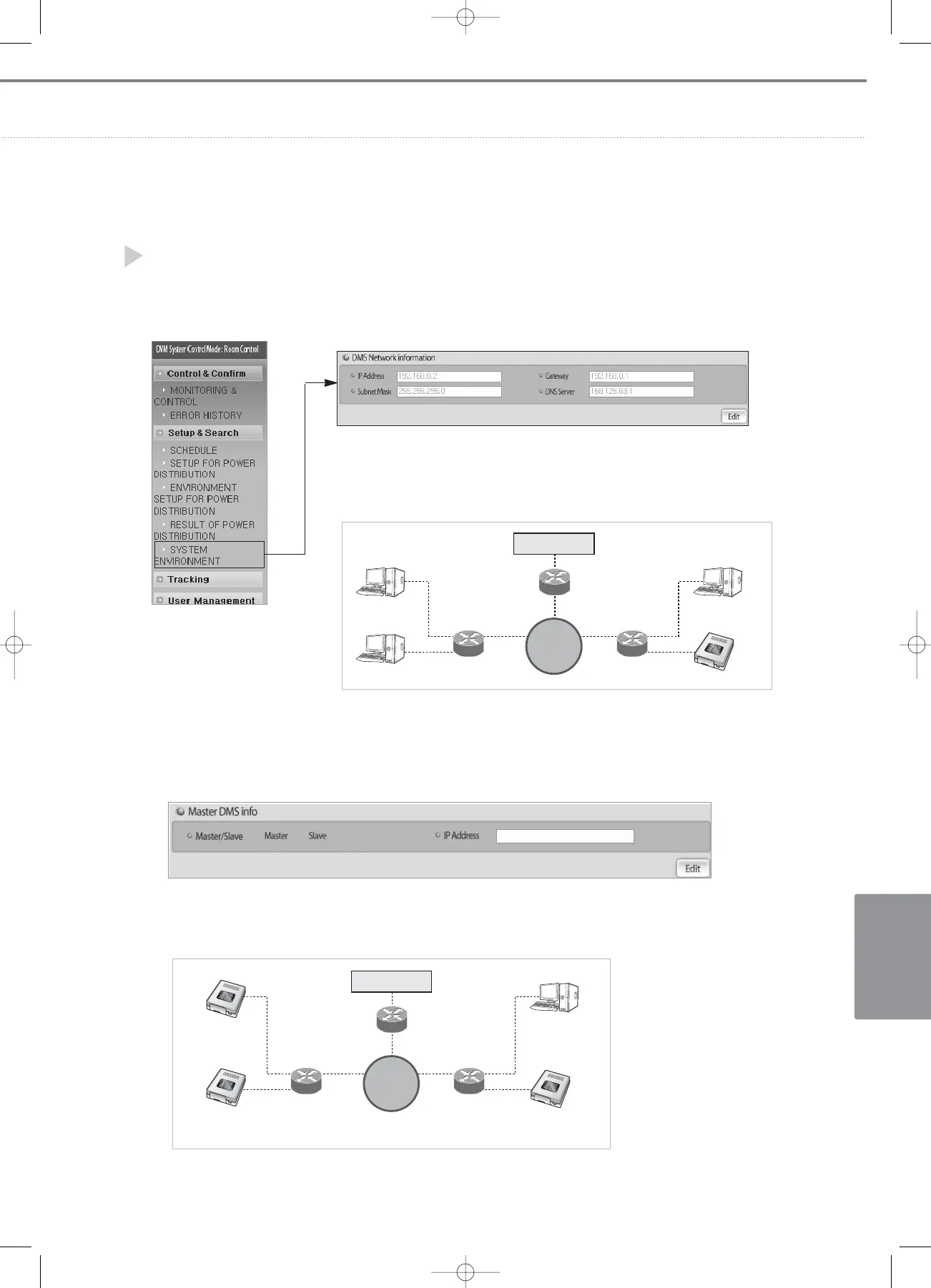

All the configurations are made in the system environment. Those include network configuration, Master/Slave setting,
current time setting, S-NET3 password, priority setting, Language selection, error mailing service and DMS naming.
➊
Network configuration
When multiple DMSs are installed in the networked environment, one DMS can be set to Master to be
reference to share its internal information with the other DMSs such as time or power control reference.
❷
Master/Slave setting
IP Address : Networking DMS IP
Gateway : Gateway or router IP which each subgroup is networked with.
Subnet mask : IP masking constant for subnetting group
DNS server : Internal Domain Name Server IP
Master : Current DMS is set to be Master.
Slave : Current DMS is set to be Slave and tries to access the Master DMS of IP Address.
IP Address : IP address of the Master DMS. It is invalid if the current DMS is set to be a Master.
Local
Network
Internet
Client
Client
Client
DMS
Router
Router Router
Local
Network
Internet
Slave DMS1
IP:192.168.0.3
Slave DMS2
IP:192.168.0.4
Maser DMS3
IP:192.168.0.2
Client
Router
Router Router
