Samsung DVM PLUS III User Manual

II-11
I
NDOOR
U
NITS

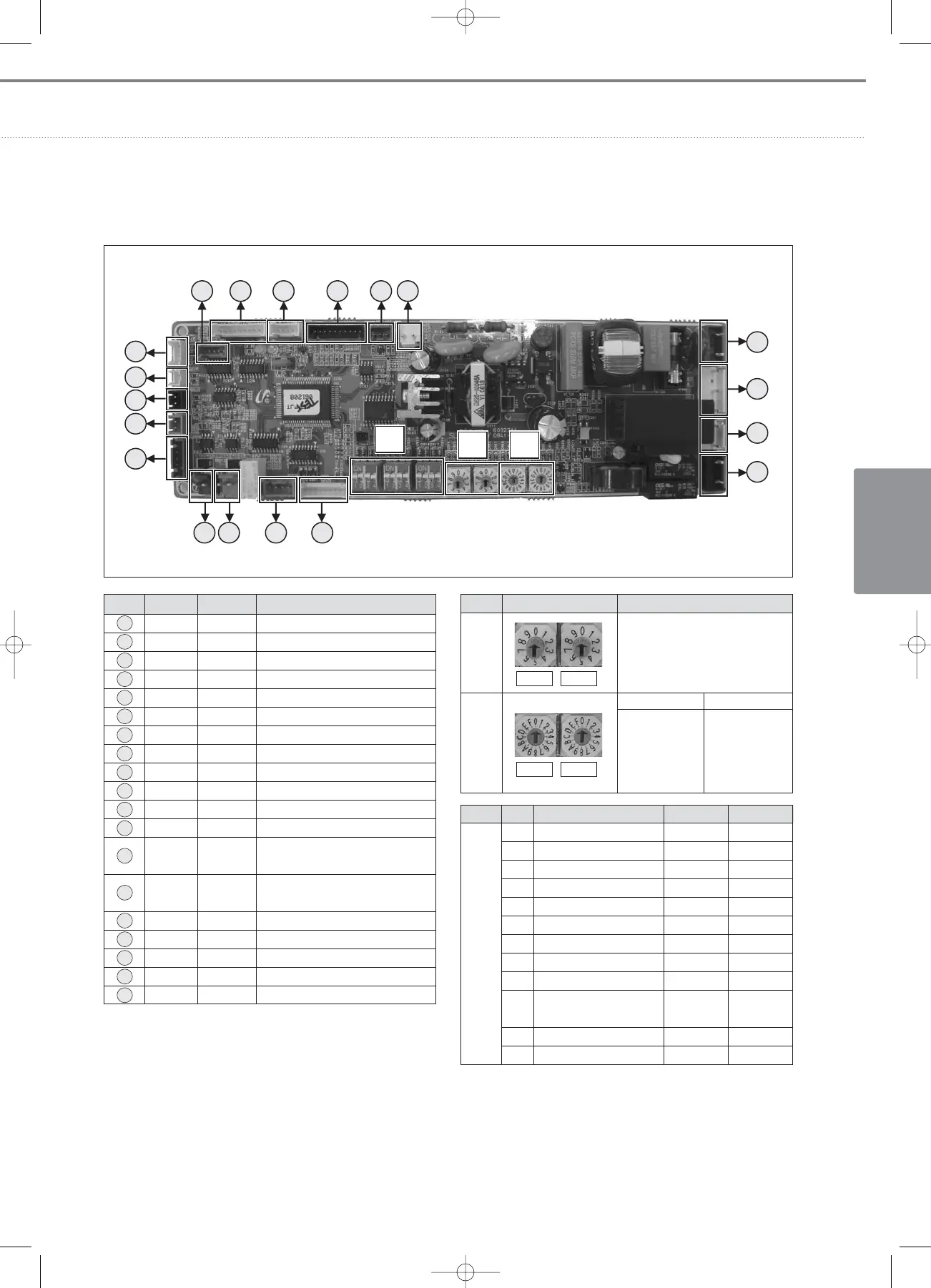

1-5. PCB connector lay-out
1
14 13 12 11
19
18
17
16
15
2 3 4 5 6
7
8
9
10
A
C
B
No. CN # COLOR FUNCTION
1 CN61 Red Sliding Panel 1(Only for sliding panel)
2 CN62 White Sliding Panel 2 (Only for sliding panel)
3 CN60 White Louver
4 CN10 Black MICOM Download
5 CN44 Blue Hall IC
6 CN32 White DC 12V for Wired Remote Controller
7 CN71 Blue AC 230V Input
8 CN73 White Fan Motor
9 CN74 White Drain Pump
10 CN75 Black Ventilator
11 CN91 White Display
12 CN81 Red
Error Check, Indoor unit Operation
13 CN31 Red
Communication with
Outdoor Units (COM1)
14 CN33 Blue
Communication with Wired
Remote Controller (COM2)
15 CN63 Blue EEV
16 CN83 Red External Contact Control
17 CN51 Black Float Switch
18 CN42 White Eva-Out Sensor
19 CN41 White Room Sensor, Eva-In Sensor
A
B
C
No.
SW01 SW02
S/W
Main Address Setting
(00~63)
FUNCTION
SW03 SW04
SW03
Address of
Interface
Module
Channel 0~2
SW04
Group Address
(RMC) for
Centralized
Control 0~F
No. S/W FUNCTION ON OFF
K1 - - -
K2 Centralized Controller Not use Use
K3 RPM Up N/A N/A
K4 Optional Drain Pump N/A N/A
K5 Heating Thermo-off +2°C +5°C
K6 Filter Signal Display 1,000hrs 2,000hrs
K7 Hot Water Coil N/A N/A
K8 Electrical Heater N/A N/A
K9 Min. EEV Step at Heating Fixed 80 step 0 or 80 step
K10
Priority of Indoor unit Display
Slave
on Wired Remote Controller
(Default)
Master
K11 External Contact Control Not use Use
K12 - - -
