Samsung DVM PLUS III User Manual

II-77
I
NDOOR
U
NITS

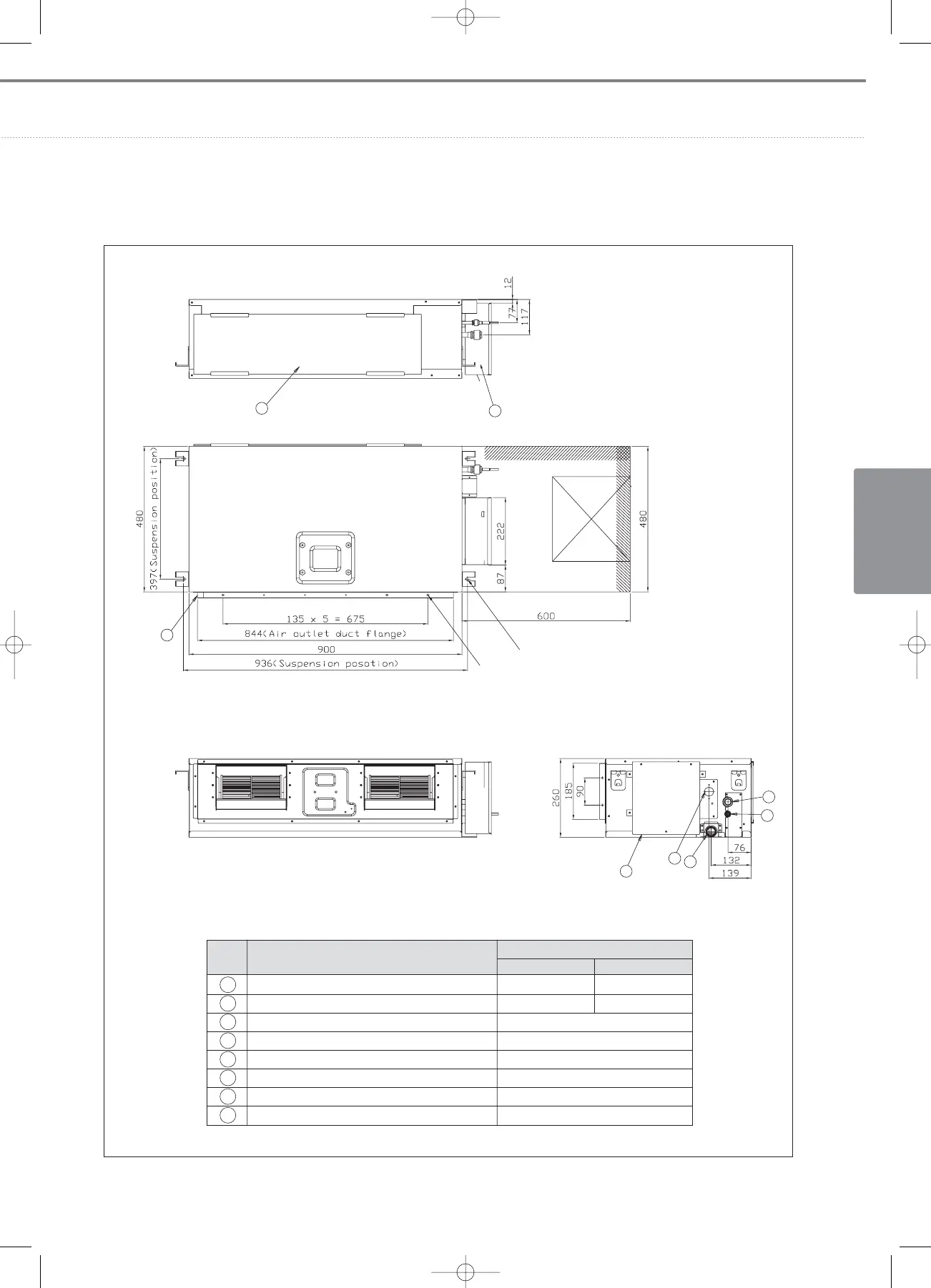

6-4. Dimensional drawing
1) AVXDUH056/071E✴
1
2
3
4
5
7
8
6
Suspenslon bolts(M8~M10) X 4EA
Duct flange connection bolts(M4) X 16EA
Unit:mm
No. Name
Description
1 Liquid pipe connection
2 Gas pipe connection
3 Drain pipe connection without optional drain pump kits VP25(OD 32, ID 25)
4 Drain pipe connection with optional drain pump kits Quick lock
5 Control unit -
6 Conduit for power supply & communication wiring -
7 Return air side -
8 Air outlet duct flange -
5.6kW 7.1kW
Ø6.35 Flare Ø9.52 Flare
Ø12.70 Flare Ø15.88 Flare
chapter2_Indoor units(052~107) 3/14/08 22:15 Page 77
