Samsung DVM PLUS III User Manual

Indoor Units
II-78
6
6
MSP(Middle static pressure)
duct

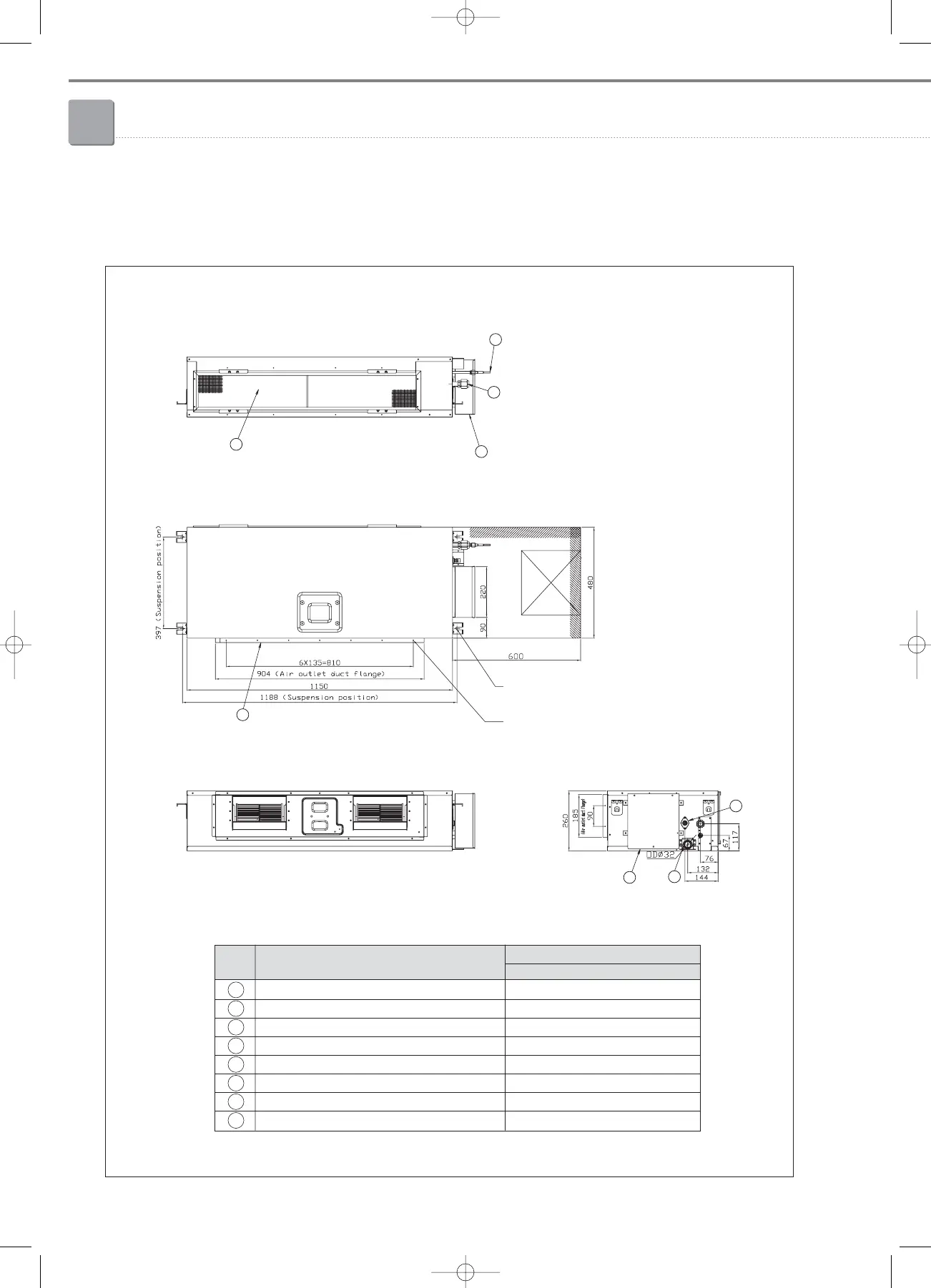

6-4. Dimensional drawing
2) AVXDUH090E✴
1
2
3
4
5
7
8
6
Suspenslon bolts(M8~M10) X 4EA
Duct flange connection bolts(M4) X 16EA
Unit:mm
No. Name
Description
1 Liquid pipe connection Ø9.52 Flare
2 Gas pipe connection Ø15.88 Flare
3 Drain pipe connection without optional drain pump kits VP25(OD 32, ID 25)
4 Drain pipe connection with optional drain pump kits Quick lock
5 Control unit -
6 Conduit for power supply & communication wiring -
7 Return air side -
8 Air outlet duct flange -
9.0kW
