❈ Max. 16 indoor units can be connected.
One of the two remote controllers must be set as a Master.
It is not possible to use the different type of remote controller for 2-remote controller.
(Ex: MWR-WS00 + MWR-TH01 ➝ Impossible)

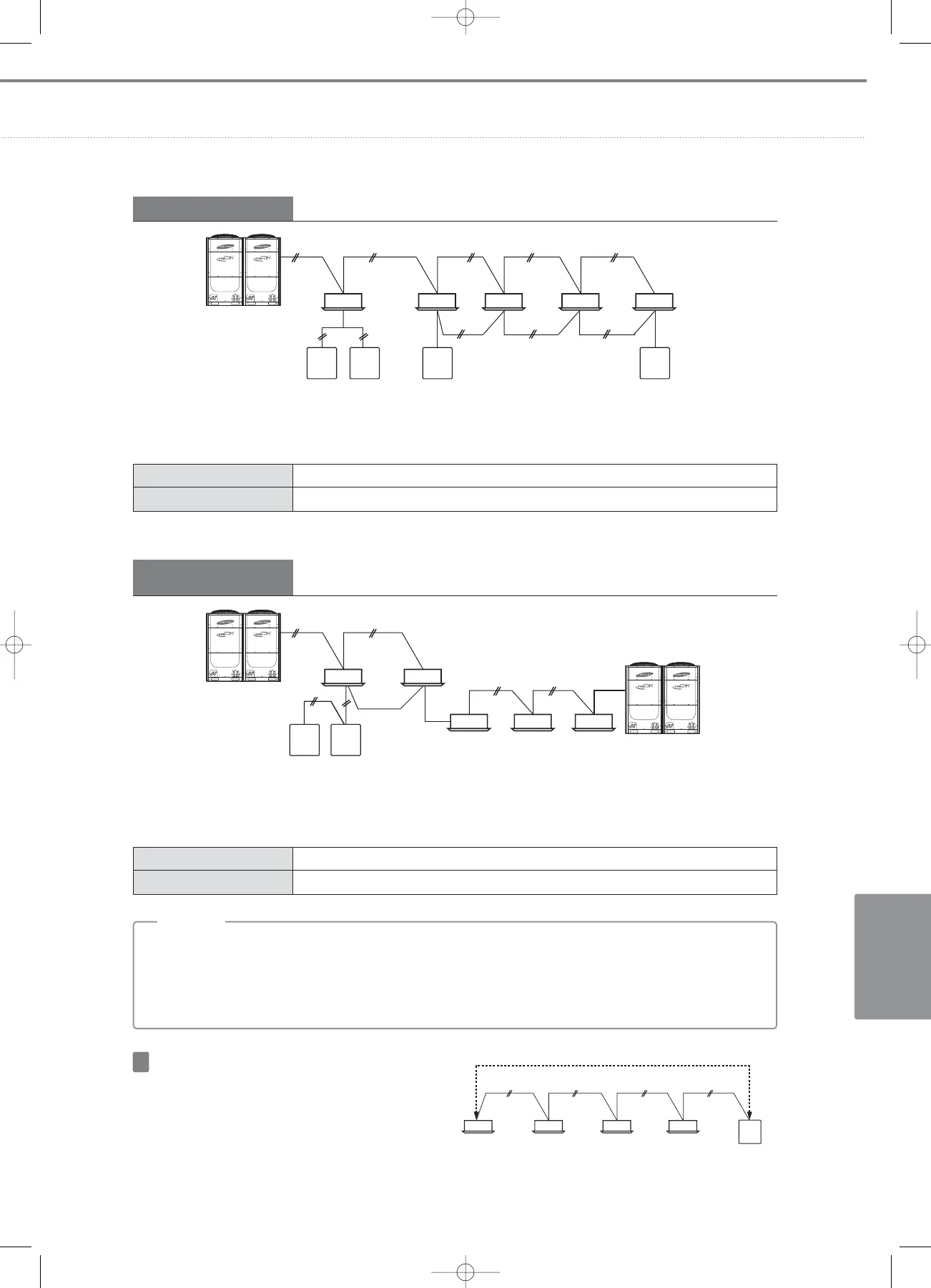

Group control (4)
Control multiple indoor units connected to different outdoor units with
2 wired remote controllers
Group control (3)
Control multiple indoor units with 2 Wired remote controllers
Control All connected indoor units
Display Two wired remote controllers identically display the operation status of the indoor unit
Indoor unit
Outdoor unit
Wired R/C
F1/F2
F3/F4
Master
Master
Master
Slave
Slave
Slave
❈ Max. 16 indoor units can
be connected.
One of the two remote controller must be set as a Master.
It is not possible to use the different type of remote controller for 2-remote controller.
(Ex: MWR-WS00 + MWR-TH01
➝ Impossible)
Max. distance between the fartest indoor unit and the wired
remote controller : 1000m
Control All connected indoor units
Display Two wired remote controllers identically display the operation status of the indoor unit
Indoor unit
Indoor unit
Outdoor unit
Outdoor unit
Wired R/C
Wired R/C
F1/F2
F3/F4
1000m
• Type of applicable indoor unit: cassette, duct, wall mount, ceiling, console
• Power (V1/V2) : DC 12V
• Communication (F4/F3): RS485 communication (non-polarity)
• Max. number of indoor units that can be connected to one wired remote controller: Max. 16 units
;
NN
NN
oo
oo
tt
tt
ee
ee
Length of transmission wiring
