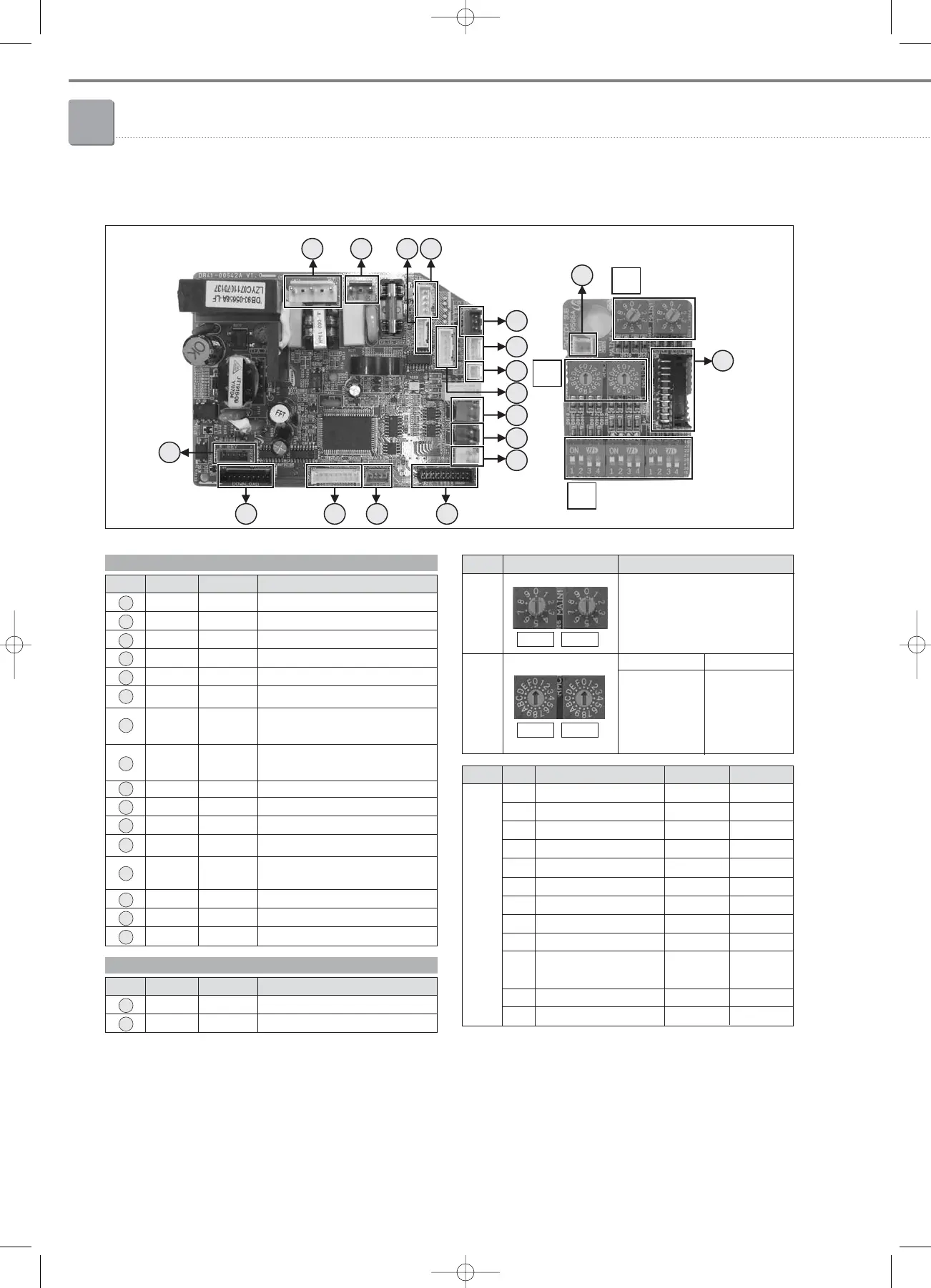

9-5. PCB connector lay-out
1 2 12 3
4
5
6
11
7
8
9
17
18
16
10131415
A
B
C
Main PCB
Sub PCB
Main PCB Sub PCB
No. CN # COLOR FUNCTION
17 CN61 Black Main-Sub PCB Connector
18 CN83 White External Contact Control
A
B
No.
SW01 SW02
S/W
Main Address Setting
(00~63)
FUNCTION
SW03 SW04
SW03
Address of
Interface
Module
Channel 0~2
SW04
Group Address
(RMC) for
Centralized
Control 0~F
No. CN # COLOR FUNCTION
1 CN73 White Fan Motor
2 CN71 Blue AC 230V Input
3 CN86 Yellow MPI
4 CN44 Blue Hall IC
5 CN41 White Room Sensor, Eva-In Sensor
6 CN42 White Eva-Out Sensor
7 CN31 Red
Communication with
Outdoor Units (COM1)
8 CN33 Blue
Communication with Wired
Remote Controller (COM2)
9 CN32 White DC12V for Wired remote controller
10 CN61 Black Main-Sub PCB connector
11 CN63 White Auto Grille Motor
12 CN60 White Up&Down Stepping Motor
13 CN93 Red
Wireless Remote Controller
Button & Module
14 CN92 White Display
15 CN10 Black MICOM Download
16 CN62 Blue EEV
C
No. S/W FUNCTION ON OFF
K1 - - -
K2 Centralized Controller Not use Use
K3 RPM Up N/A N/A
K4 Optional Drain Pump N/A N/A
K5 Heating Thermo-off +2°C +5°C
K6 Filter Signal Display 1,000hrs 2,000hrs
K7 Hot Water Coil N/A N/A
K8 Electrical Heater N/A N/A
K9 Min. EEV Step at Heating Fixed 80 step 0 or 80 step
K10
Priority of Indoor unit Display
Slave
on Wired Remote Controller
(Default)
Master
K11 External Contact Control Not use Use
K12 - - -
