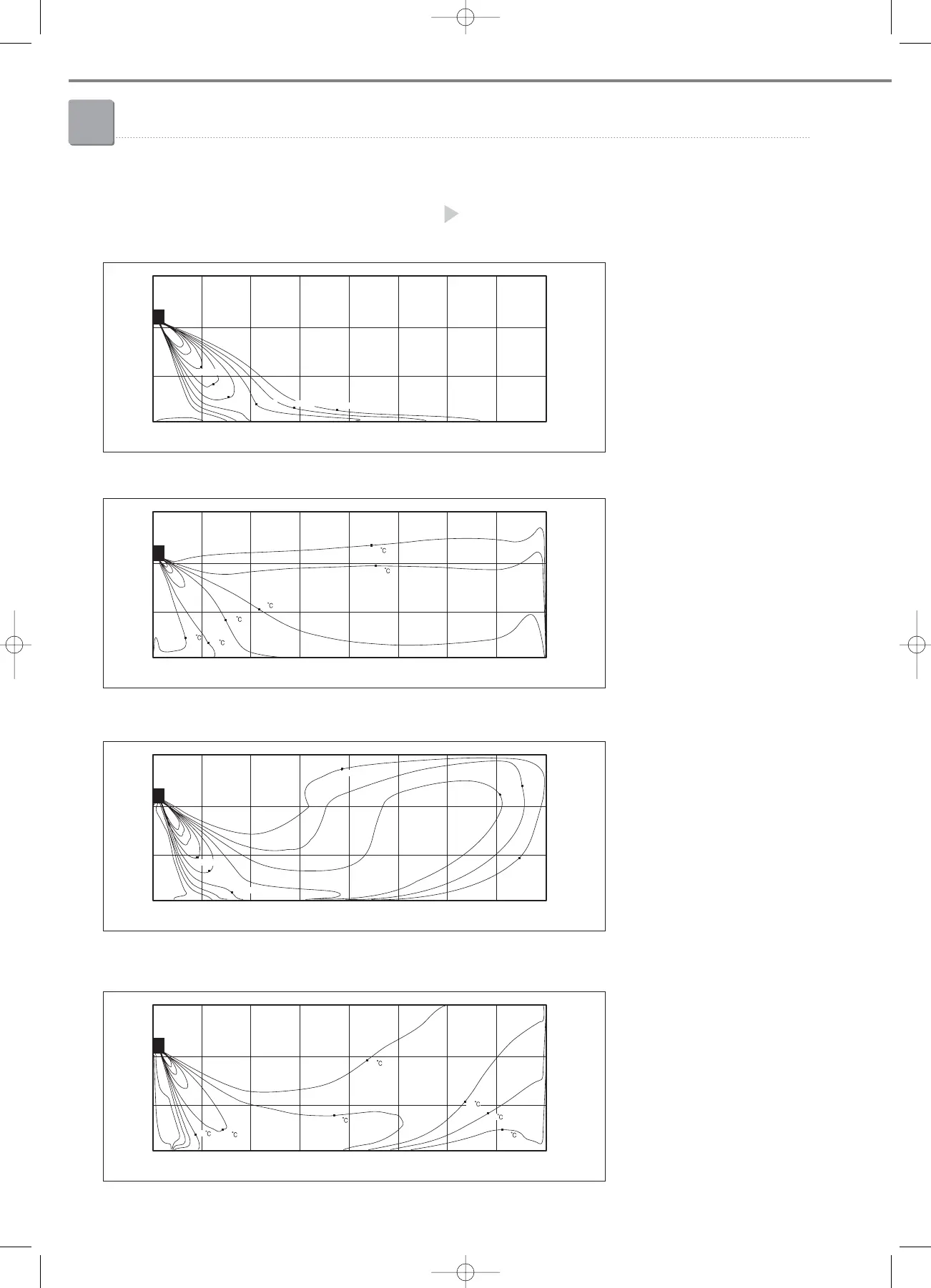

10-8. Temperature and air flow distribution
1) Cooling air velocity distribution
Floor distance
Ceiling heigt
8 m
3 m
1 m
0 m
1 m 3 m 4 m
5 m
7 m
2 m
2 m
6
m
0.6m/s
0.4m/s
0.8m/s
1.2m/s
1.4m/s
1.0m/s
◆ Discharge angle : 60°
Floor distance
Ceiling heigt
8 m
3 m
1 m
0 m
1 m 3 m 4 m
5 m
7 m
2 m
2 m
6
m
25
24
23
22
23
22
◆ Discharge angle : 60°
2) Cooling temperature distribution
Floor distance
Ceiling heigt
8 m
3 m
1 m
0 m
1 m 3 m 4 m
5 m
7 m
2 m
2 m
6
m
0.4m/s
0.2m/s
0.6m/s
0.2m/s
1.0m/s
1.2m/s
0.8m/s
◆ Discharge angle : 60°
3) Heating air velocity distribution
Floor distance
Ceiling heigt
8 m
3 m
1 m
0 m
1 m 3 m 4 m
5 m
7 m
2 m
2 m
6
m
31
29
29
27
27
25
23
◆ Discharge angle : 60°
4) Heating temperature distribution
