Samsung DVM PLUS III User Manual

Accessories
IV-8
2
2
Branch joints
2-1. Y-joints
1) Models

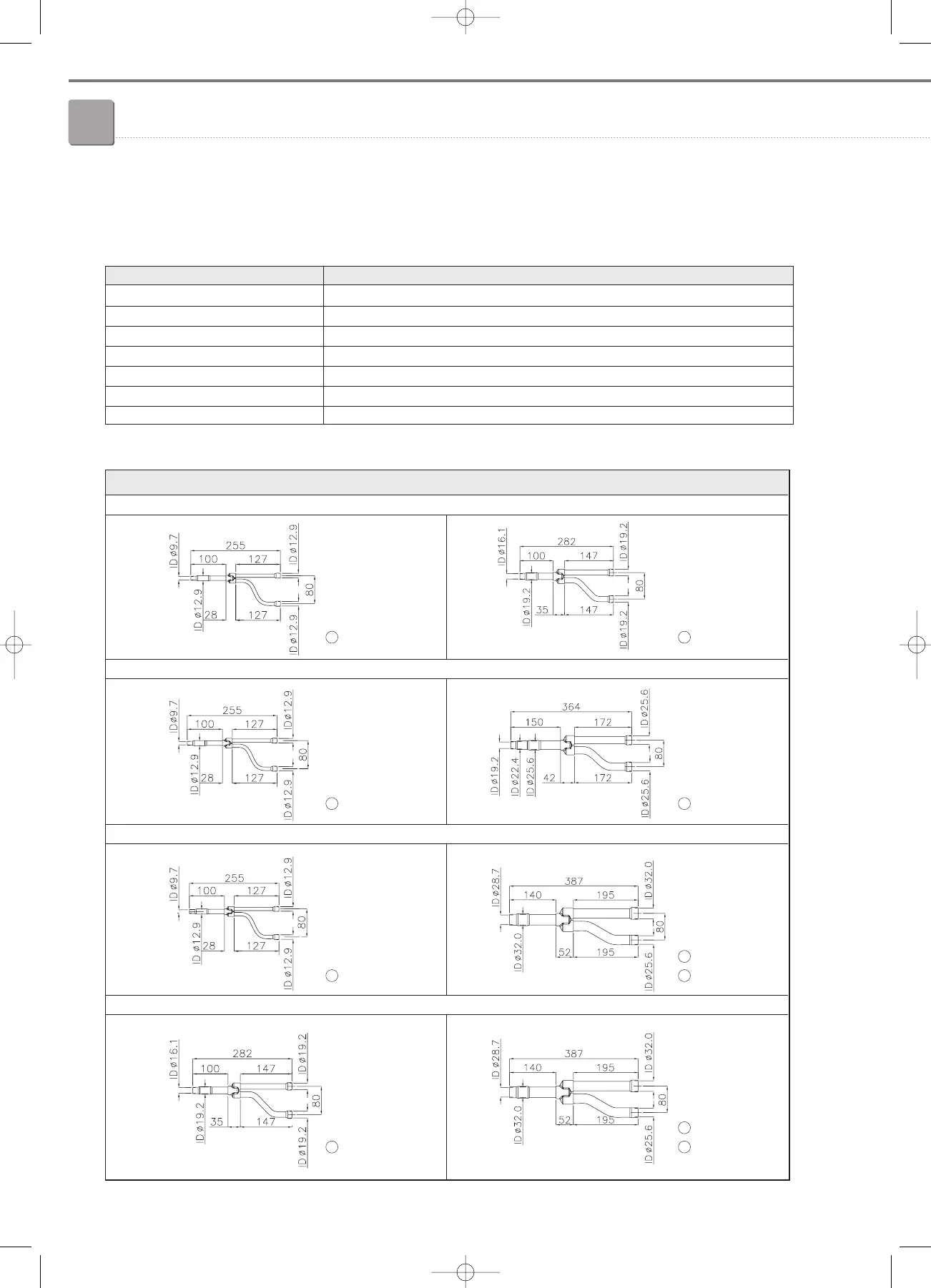

2) Dimensional drawing
Model name Total indoor unit’s capacities
MXJ-YA1509✴ 15.0 kW and below
MXJ-YA2512✴ Over 15.0~40.6 kW and below
MXJ-YA2812✴ Over 40.6~46.4 kW and below
MXJ-YA2815✴ Over 46.4~69.6 kW and below
MXJ-YA3119✴ Over 69.6~98.6 kW and below
MXJ-YA3819✴ Over 98.6~139.2 kW and below
MXJ-YA4422✴ Over 139.2 kW
Liquid
x 2 EA
Gas
Y-joint for indoor unit
MXJ-YA1509
✴
1
x 2 EA
2
Liquid
x 2 EA
Gas
MXJ-YA2512 ✴
1
x 2 EA
3
Liquid
x 2 EA
Gas
MXJ-YA2812 ✴
1
x 1 EA,
3
x 1 EA
7
Liquid
x 2 EA
Gas
MXJ-YA2815 ✴
2
x 1 EA,
3
x 1 EA
7
