Accessories
IV-16
3
3
MCU kits
3-1. Models

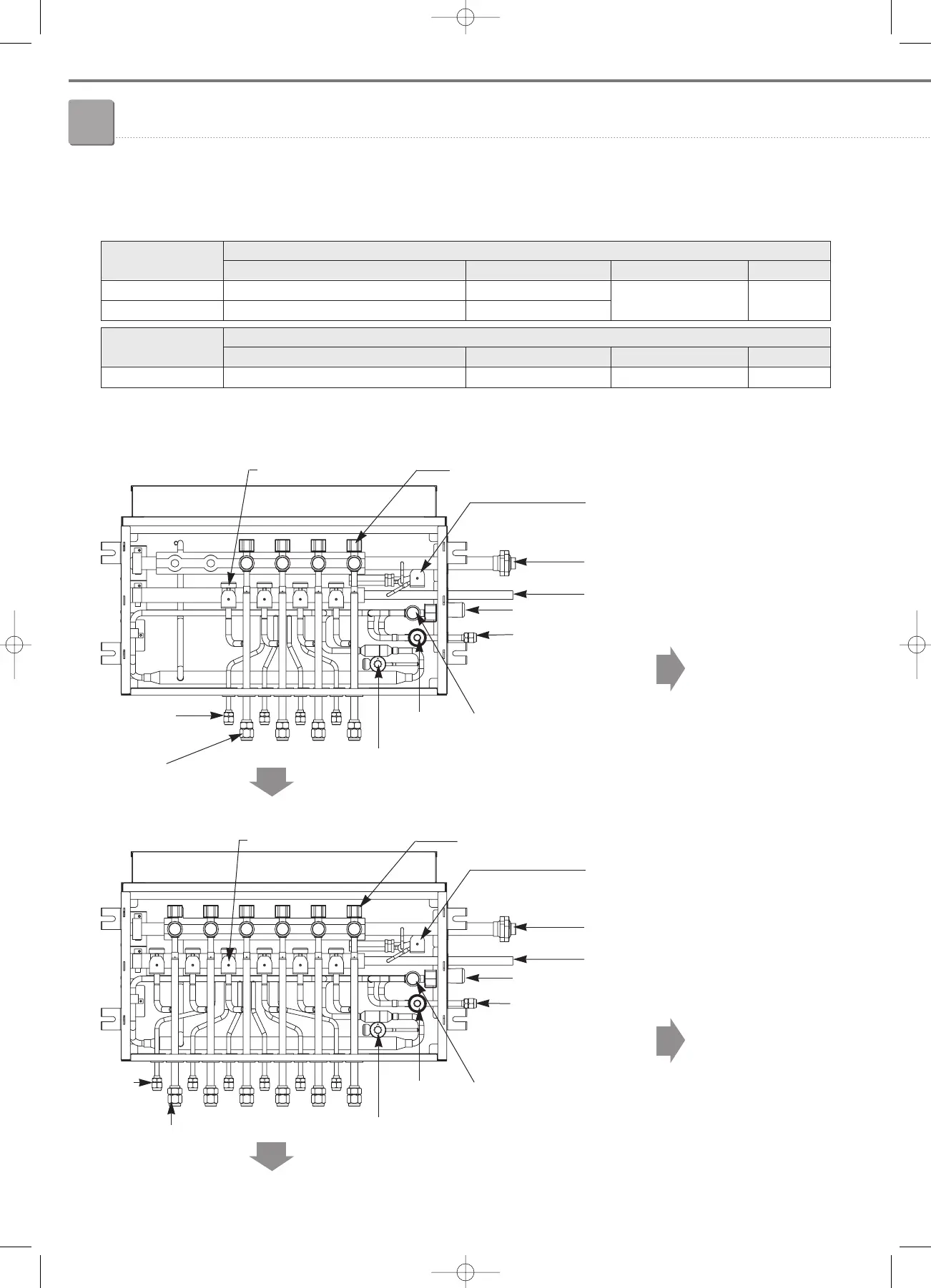

3-2. Cycle function parts
1) MCU-4EAE1
2) MCU-6EAE1
Liquid pipe
connection
(Indoor unit)
Gas pipe
connection
(Indoor unit)
Subcooler EEV
Indoor unit
Outdoor unit
MCU EEV MCU main heating valve
Liquid pipe connection (Outdoor unit)
Drain pipe
High pressure gas pipe connection (Outdoor unit)
Gas pipe connection (Outdoor unit)
MCU liquid bypass valve
Cooling solenoid valveHeating solenoid valve
Liquid pipe
connection
(Indoor unit)
Gas pipe
connection
(Indoor unit)
Subcooler EEV
Heating solenoid valve
MCU EEV MCU main heating valve
MCU liquid bypass valve
Cooling solenoid valve
Liquid pipe connection (Outdoor unit)
Drain pipe
High pressure gas pipe connection (Outdoor unit)
Gas pipe connection (Outdoor unit)
Indoor unit
Outdoor unit
Quantity of connectable indoor units Weight (Net) Total capacity EEV
MCU-4EAE1 Up to 4 units 24kg
MCU-6EAE1 Up to 6 units 27kg
Model
Description
Up to 44.8kW (16HP) Not included
Quantity of connectable indoor units Weight (Net) Total capacity EEV
MCU-4EAEV1 Up to 4 units 26kg Up to 44.8kW (16 HP) Included
Model
Description
