IV-19
A
CCESSORIES

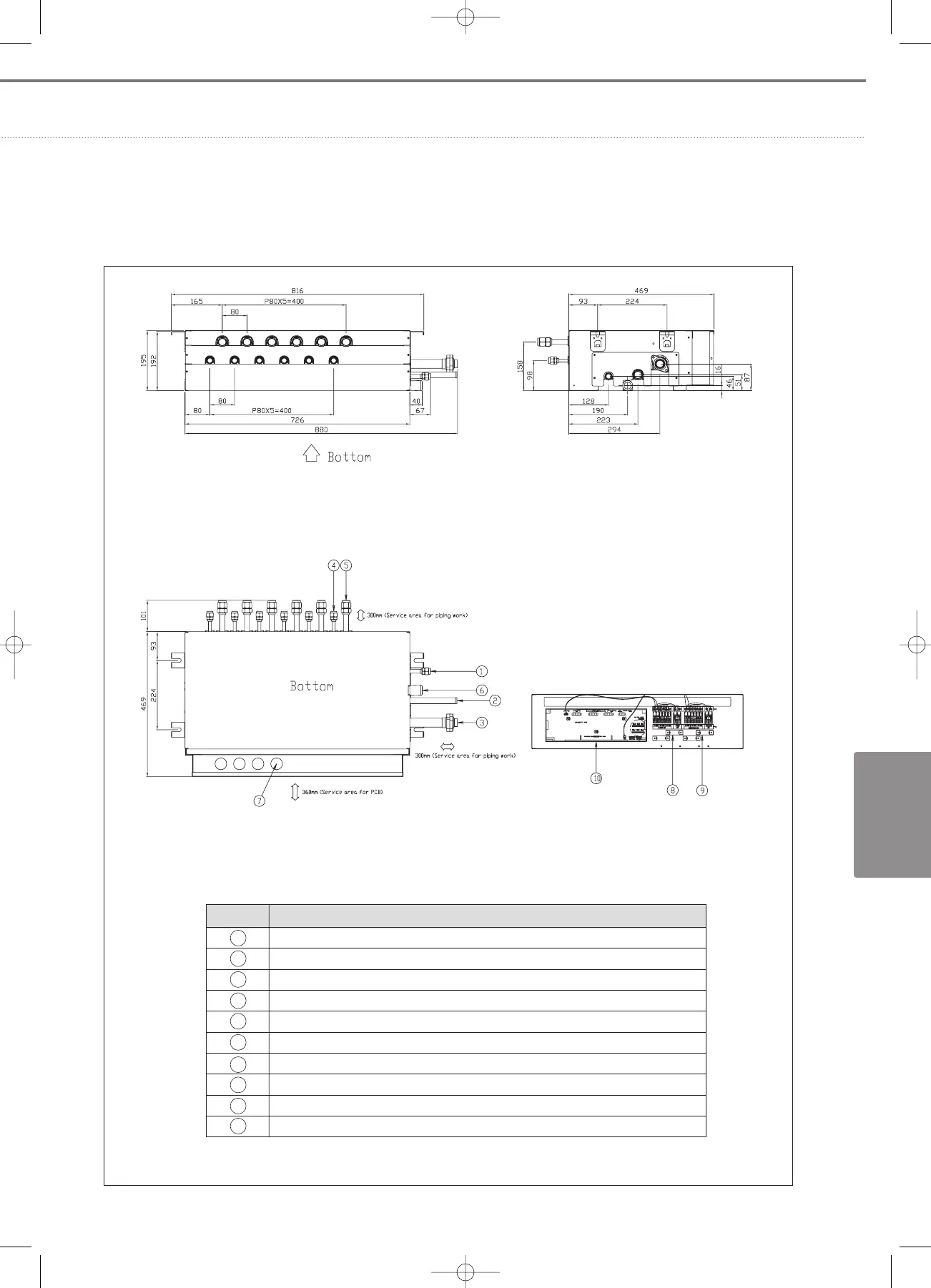

2) MCU-6EAE1
Unit:mm
No. Name
Liquid pipe connection from outdoor unit (Ø12.70, Flare)
High pressure gas pipe connection from outdoor unit (Ø19.05, Brazing)
Gas pipe connection from outdoor unit (Ø28.58, Flange)
Liquid pipe connection to indoor units
Gas pipe connection to indoor units
Condensate drain pipe connection (ID 22.5/OD 26.5)
Power and communication wiring conduits
Power wiring terminal blocks for indoor units
Communication wiring terminal blocks for indoor units
PCB of MCU
1
2
3
4
5
6
7
8
9
10
4.Accessories(02~31) 3/6/08 13:59 Page 19
