Samsung DVM PLUS III User Manual

IV-21
A
CCESSORIES

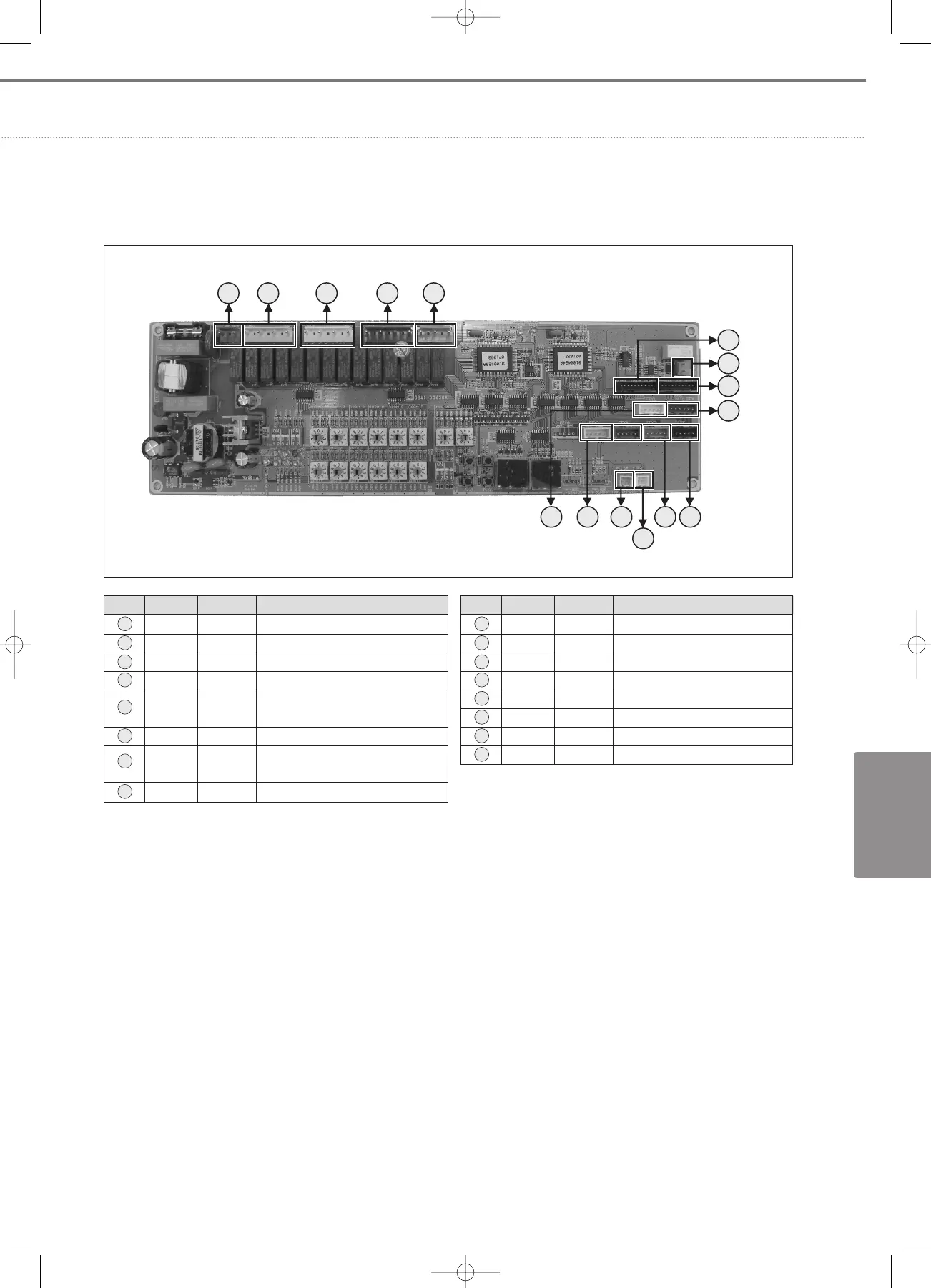

3-4. PCB connector lay-out
1 2 3 4 5
6
8
7
9
11121410 15
16
No. CN # COLOR FUNCTION
1 CN71 Blue AC 230V Input
2 CN72 Yellow
Port A/B Cooling/Heating Solenoid Valve
3 CN73 White Port C/D Cooling/Heating Solenoid Valve
4 CN74 Blue Port E/F Cooling/Heating Solenoid Valve
5 CN75 Red
Main Heating Valve, Liquid
Bypass Valve
6 CN31 Red Communication with Indoor Units (COM1)
7
CN10
±Sub
Black Sub MICOM Download
8 CN10 Black Main MICOM Download
No. CN # COLOR FUNCTION
9 CN62 Blue Main EEV
10 CN63 White EEV1
11 CN84 Black EEV2
12 CN85 Red EEV3
13 CN66 Blue EEV4
14 CN67 Yellow Subcooler EEV
15 CN50 Yellow Subcooler-In Sensor
16 CN49 White Subcooler-Out Sensor
4.Accessories(02~31) 3/6/08 13:59 Page 21
