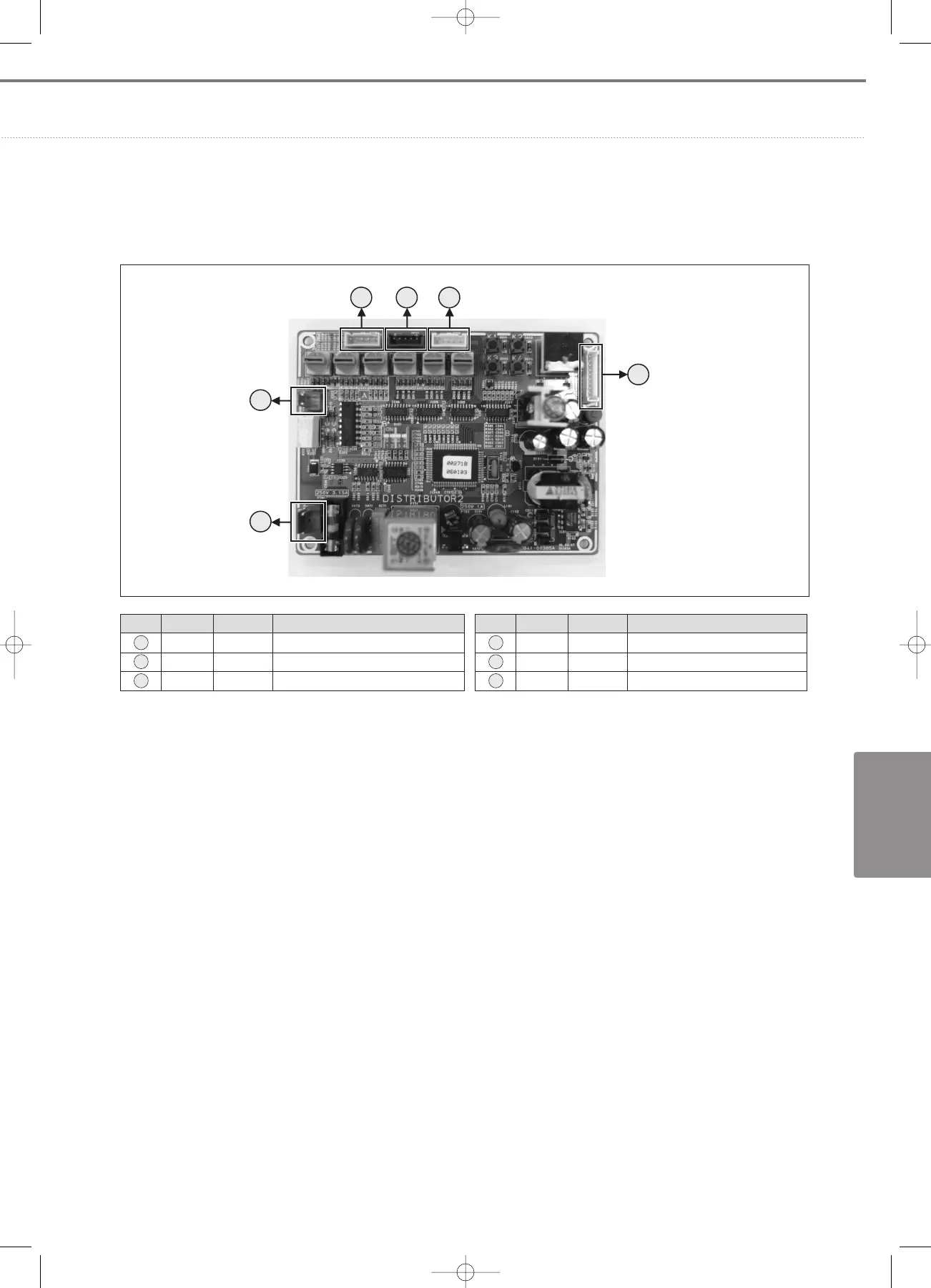

4-4. PCB connector lay-out
1
3 4 5
6
2
No. CN # COLOR FUNCTION
1 CN31 Red
Communication with Outdoor Unit
2 CN71 Blue AC 230V Input
3 CN61 Yellow EEV A
No. CN # COLOR FUNCTION
4 CN62 Blue EEV B
5 CN63 White EEV C
6 CN91 White MICOM Download
