Control Systems
V-14
1
1

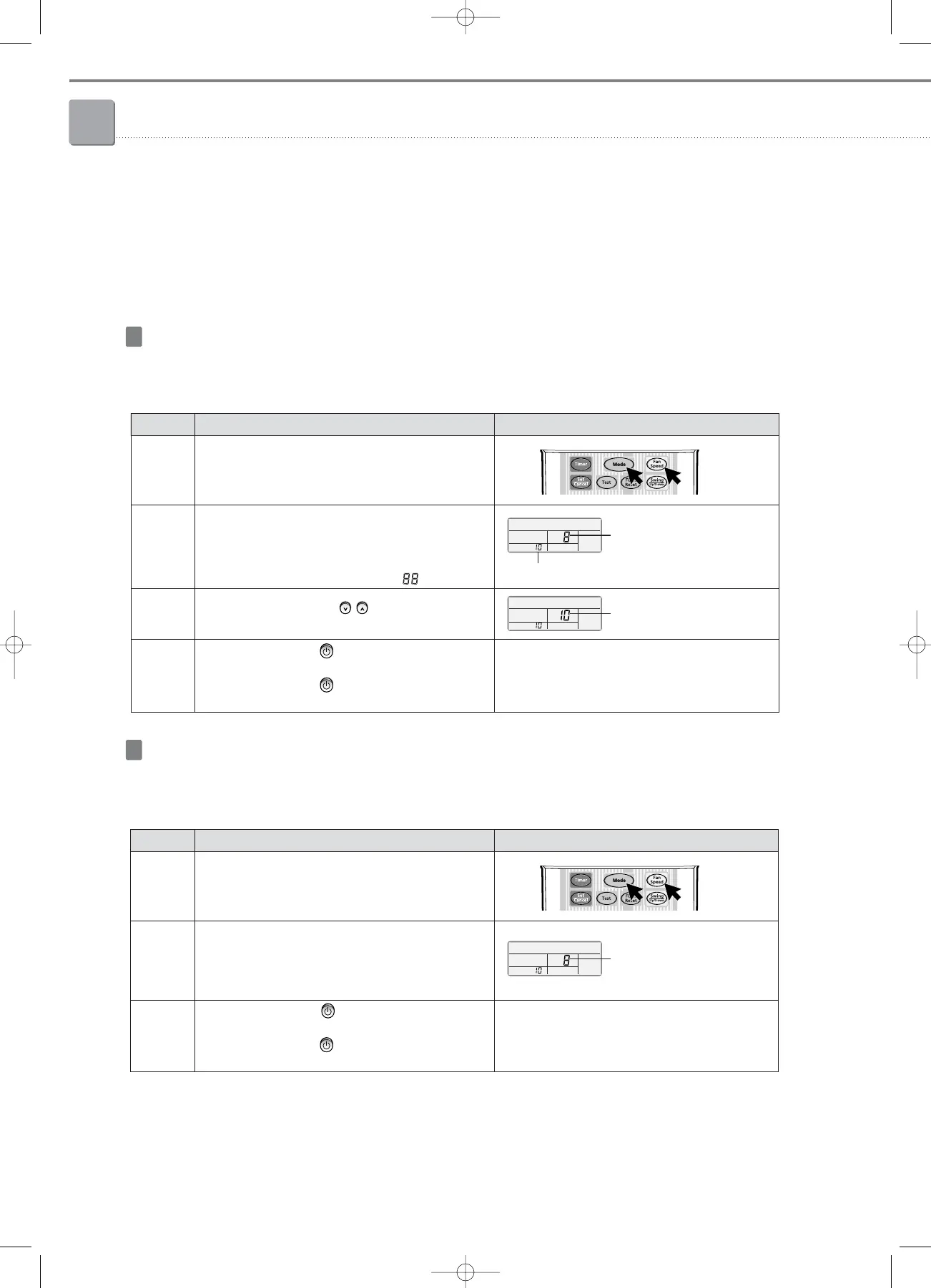

Individual control system
1-3. Wired remote controller
1) MWR-TH01
(4) Additional functions
Order
1
2
3
4
Detailed description
Set SW5 of the wired remote controller to OFF.
Press both Fan speed button and Mode button
for about 5 seconds.
If the “RMC address setup” mode entered, the main
address of the indoor unit and the RMC address are
displayed on LCD of the wired remote controller.
❈ If the group address has already been set, it displays the
current RMC address. If not, it displays “ ”.
Use the temperature setting button to set to a desired
RMC address. At this time, group address display flashes.
Press operation On/Off button once to apply set RMC
address to the indoor unit with a buzz.
Press operation On/Off button once more to exit from
RMC setting mode.
Display
❈ Indoor unit and wired remote controller should be connected by COM2 (F3/F4) communication line.
❈ RMC address assignment function is only applicable when an indoor unit is connected with wired remote controller
one-by-one.
Display the RMC address that has
been already set.
Display the main address of the connected indoor unit.
Display changed RMC address.
Order
1
2
3
Detailed description
Set SW5 of the wired remote controller to ON.
Press both Fan speed button and Mode button for about 5
seconds.
If the “RMC address cancel” mode entered normally, the
main address and RMC address that have been set are
displayed on the LCD of wired remote controller set in an
indoor unit and PCB.
Press operation On/Off button to apply the set RMC
address to the indoor unit with a buzz.
Press operation On/Off button once again to exit from
RMC setup cancel mode.
Display
❈ Indoor unit and wired remote controller should be connected by COM2 (F3/F4) communication line.
❈ RMC address assignment function is only applicable when an indoor unit is connected with wired remote controller
one-by-one.
RMC address display
that has been set up in PCB
Group (RMC) address assignment
Group (RMC) address assignment cancel
