Control Systems
V-44
1
1
Individual control system
1-4. 7-day scheduler (MWR-BS00)

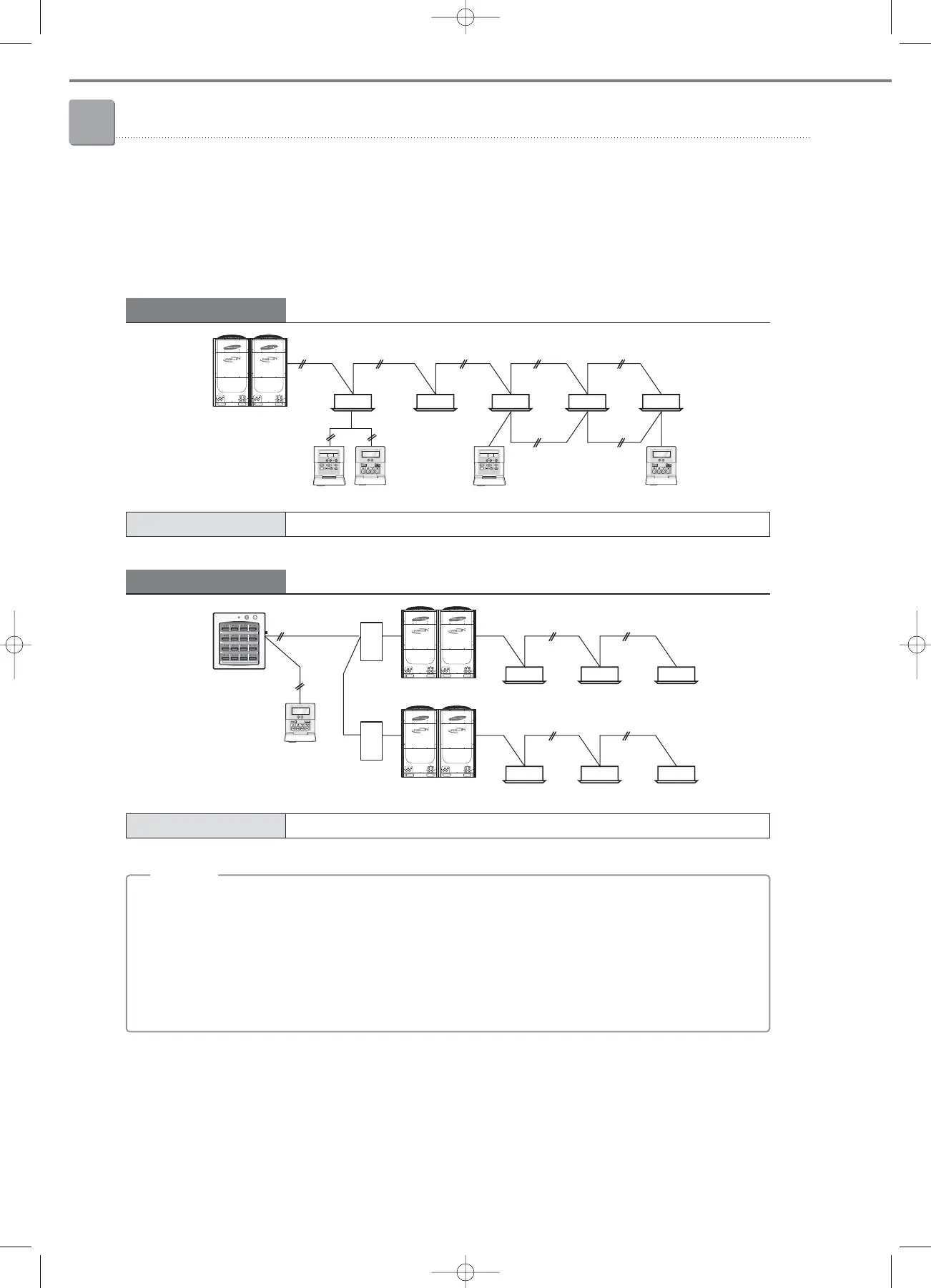

6) Connection examples
Connected to the wired remote controller
Control Apply schedule operation to all indoor units connected to the wired remote controller.
F1/F2
F3/F4
Wired R/CWired R/C
Outdoor unit
Outdoor unit
Outdoor unit
7-day scheduler7-day scheduler
Connected to the centralized controller
Control Apply schedule operation to all indoor units connected to the centralized controller.
R1/R2
Interface
module
Interface
module
F1/F2
F1/F2
Indoor unit
Indoor unit
Indoor unit
7-day scheduler
• Applied indoor unit types: cassette, duct, wall-mounted, ceiling, console
(When 7-day scheduler is used with a wired remote controller, COM2(F3/F4) supports indoor units only.)
• Power (V1/V2): DC 12V / 50mA
• Communication (F3/F4): RS485 communication (non-polarity)
• Max. number of controllable indoor units:
- Max. 16 indoor units when 7-day scheduler is used with a wired remote controller
- Max. 16 groups when 7-day scheduler is used with a centralized controller
;
NN
NN
oo
oo
tt
tt
ee
ee
