Centralized control system
2-2. Centralized controller (MCM-A202A)
6) Rotary & Option switch

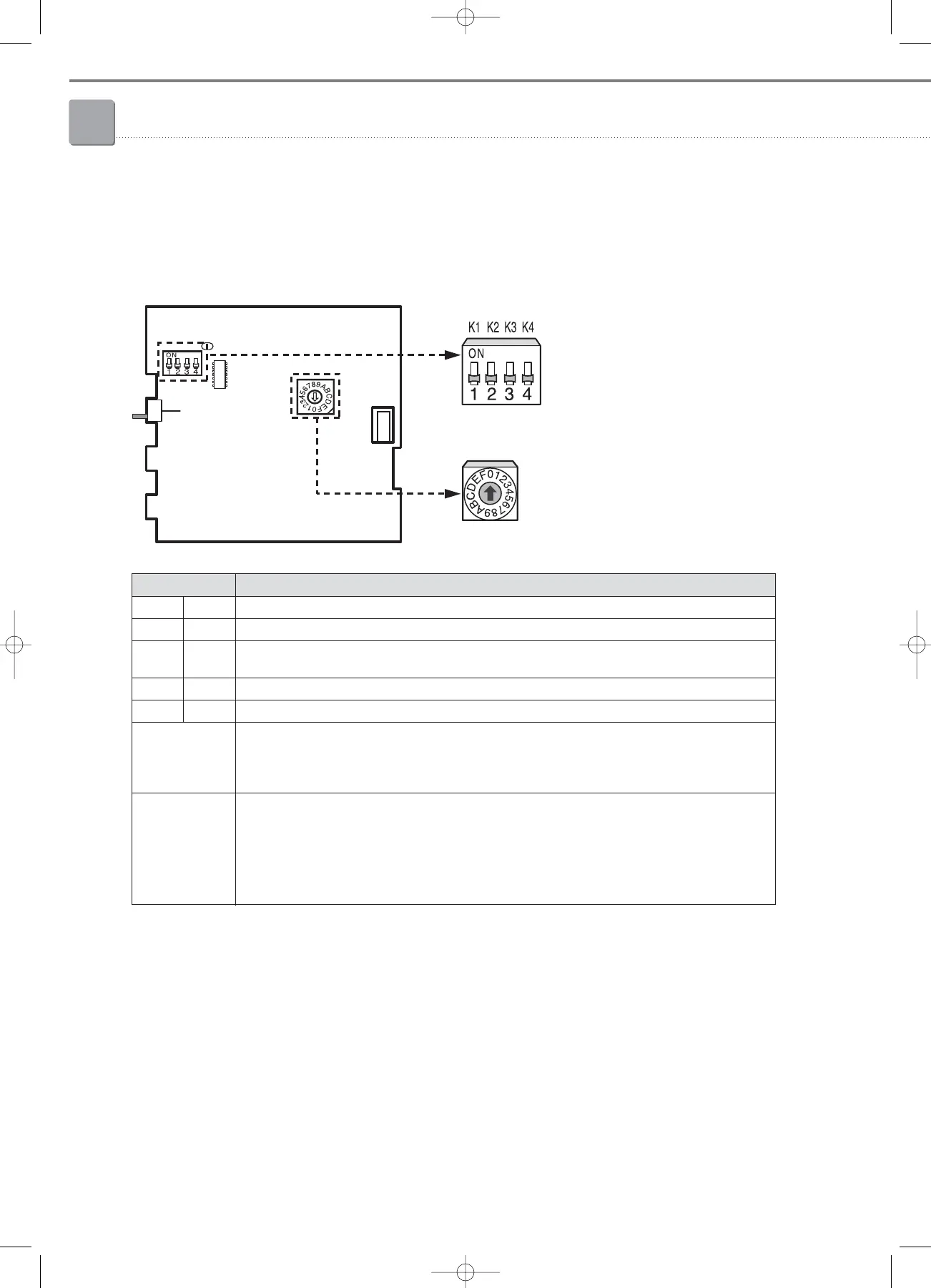

DIP SW Description
K1 K2 Restriction setting on wired/wireless remote control use
OFF OFF Wired/Wireless remote control use is allowed all the time. Level 0
ON OFF
Wired/Wireless remote control use is allowed only if indoor unit is ON by the centralized controller.
When indoor units are OFF by the centralized controller, remote control use is prohibited. Level 1
OFF ON Wired/Wireless remote control use is prohibited. Level 2
ON ON Dynamic switching of remote control use between ‘Allowed’ and ‘Prohibited’ by using All ON button.
Group/Room tracking mode
OFF : Group mode tracking
K3
ON : Room mode tracking
❈
Under Group mode, button control is allowed and not under Room mode
Upper controller compatibility setting
OFF : DMS or S-NET mini supported
K4
ON : Function controller or S-NET
II
Plus supported
NN
NN
oo
oo
tt
tt
ee
ee
S-NET II Plus is not supported when MCM-A202A is connected to the interface module,
MIM-B13A.
