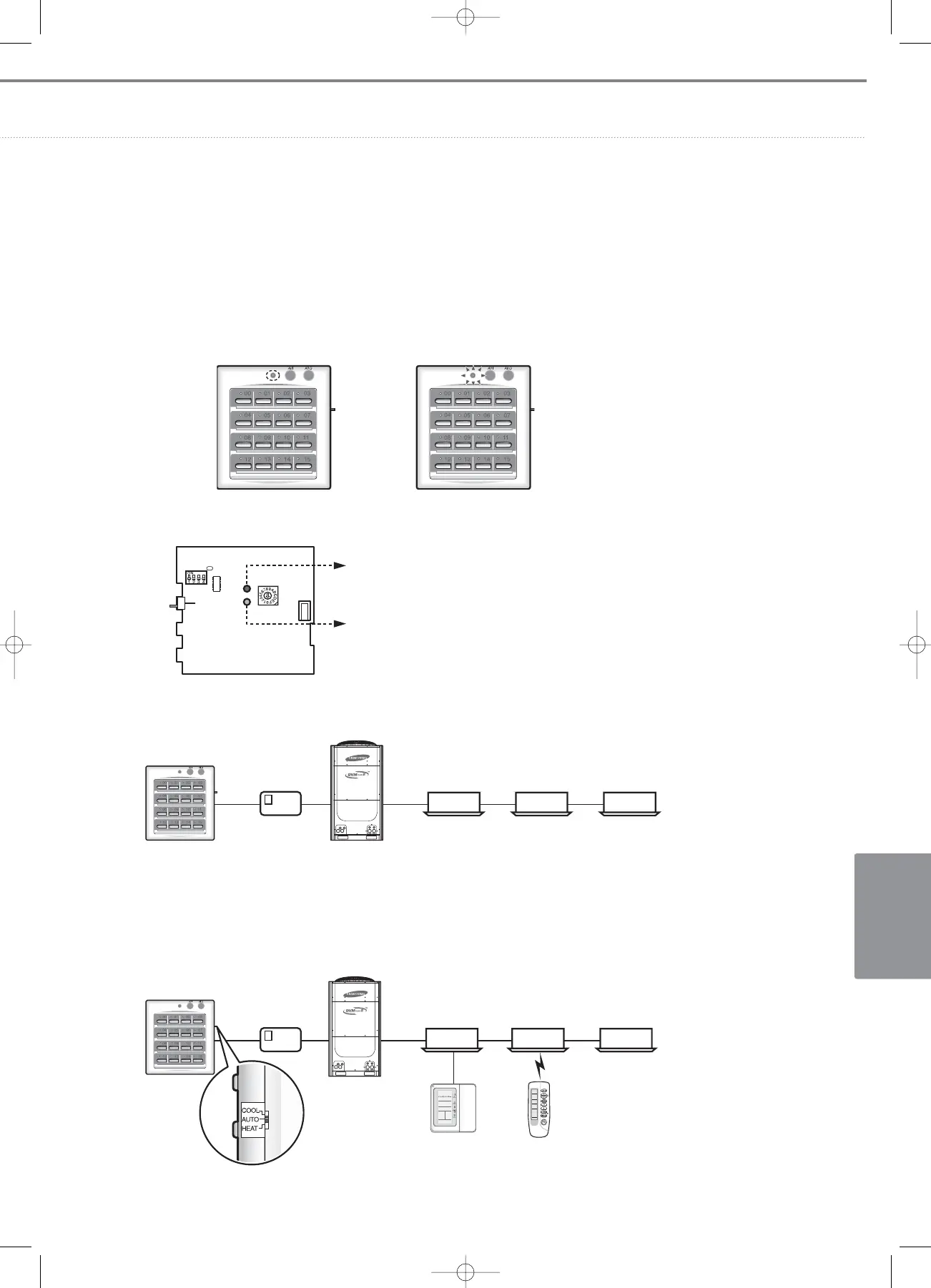

Indoor unit operation
➔
All ON LED lighting
Error in I/M, indoor units
➔
All ON LED blinking
(2) Under room mode tracking (K3 to ON)
➊
After completion of indoor unit tracking, all LEDs stay in the OFF state.
❷ When there occurs block in communication of interface module, only All ON LED blinks.
Red LED – It flickers during communication with upper-layer devices
(DMS, S-NET mini, Function controller, S-NET
II Plus
)
Green LED – It flickers while interacting with interface modules.
11) Compatibility with interface module
• MIM-B04A : DVM, DVM PLUS, mini DVM(R407), CAC
• MIM-B13A : DVM PLUS II, DVM PLUS III, HR II, mini DVM(R410A), FJM, ERV
❈ Old versions MIM-B13, MIM-B04, MIM-B00 are also supported to MCM-A202A.
12) Operation mode selection switch
It is mainly used to set indoor unit operation mode to Cooling, Heating or Auto.
