8) Precaution on wiring with interface modules

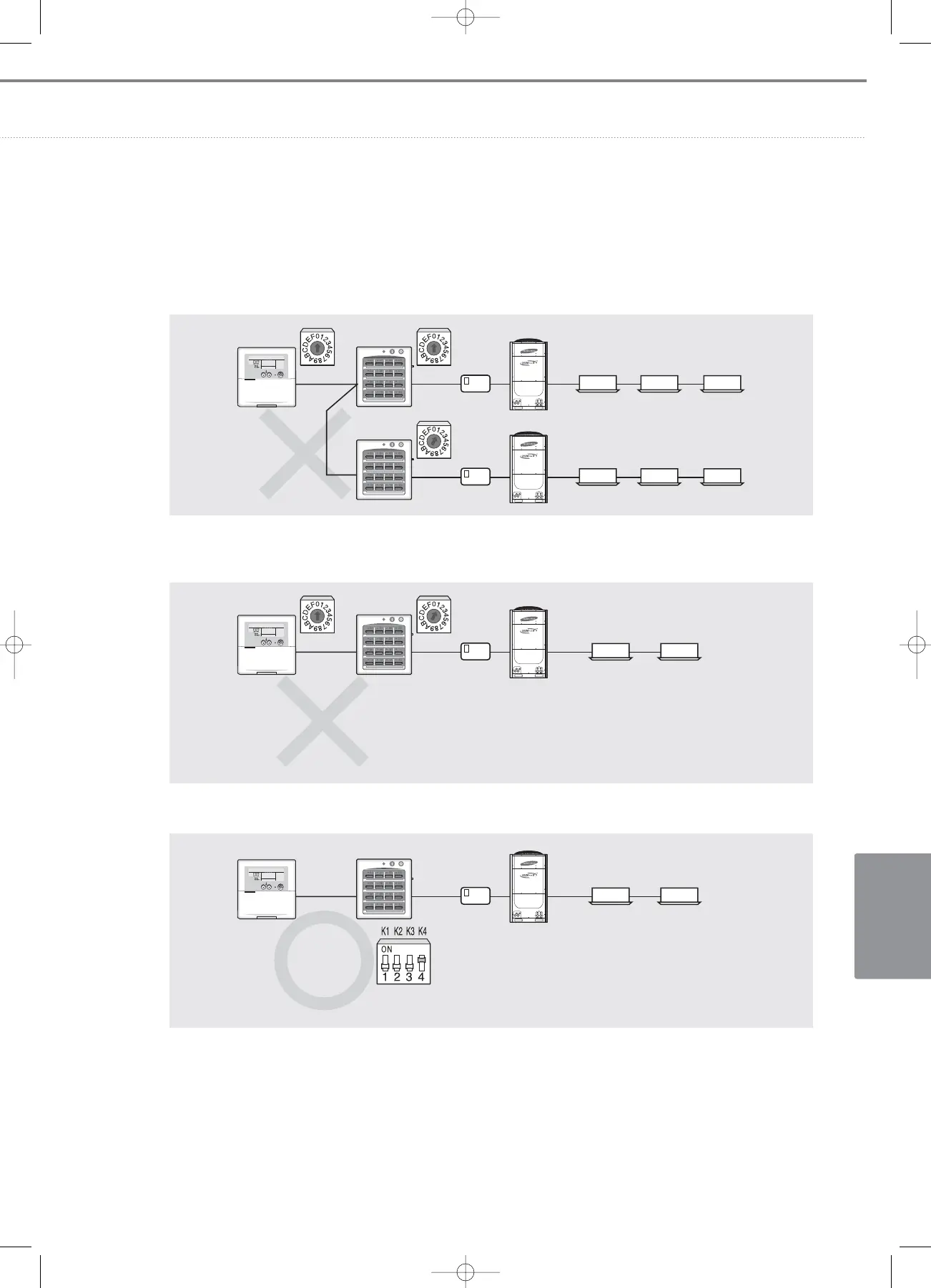

➊ Multiple centralized controllers cannot be connected to one functional controller.
00
1
❷ Centralized controller address must be matched to function controller address.
If not matched, function controller does not complete initial tracking process.
01
❸ K4 switch in the centralized controller must in the ON position.
