Integrated management system
WHM address assignment
Â
3-1. DMS (Data Management Server)

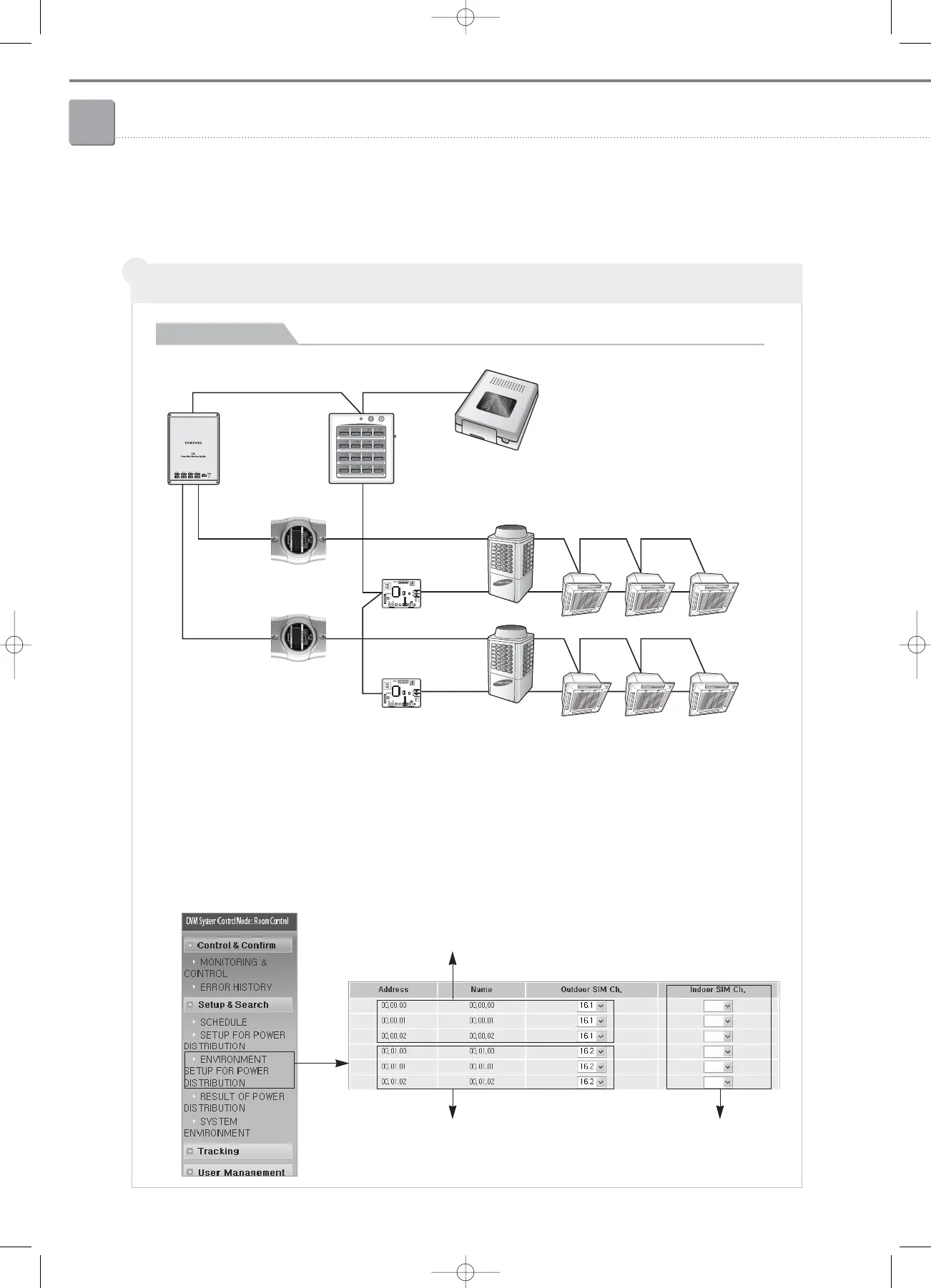

Mapping example 1. Watt-hour meter mapping with common power supply
SiM Address 0
Centralized controller
Address 0
I/M Address 1
I/M Address 0
Watt-hour meter
Watt-hour meter
Main 0
G2
DMS
C1-C2 Wiring
G1
Main 1 Main 2
Main 0 Main 1 Main 2
➊
SiM address is set to 0.
❷
Watt-hour meter A is connected to Channel 1 of the SiM.
❸
Watt-hour meter B is connected to Channel 2 of the SiM.
Assumption
Watt-hour meter A for group G1
Watt-hour meter B for group G2 Since there is no watt-hour meters for
indoor units, there is no need to assign
WHM addresses.
A
B
