Control Systems
V-130
3
3
Integrated management system

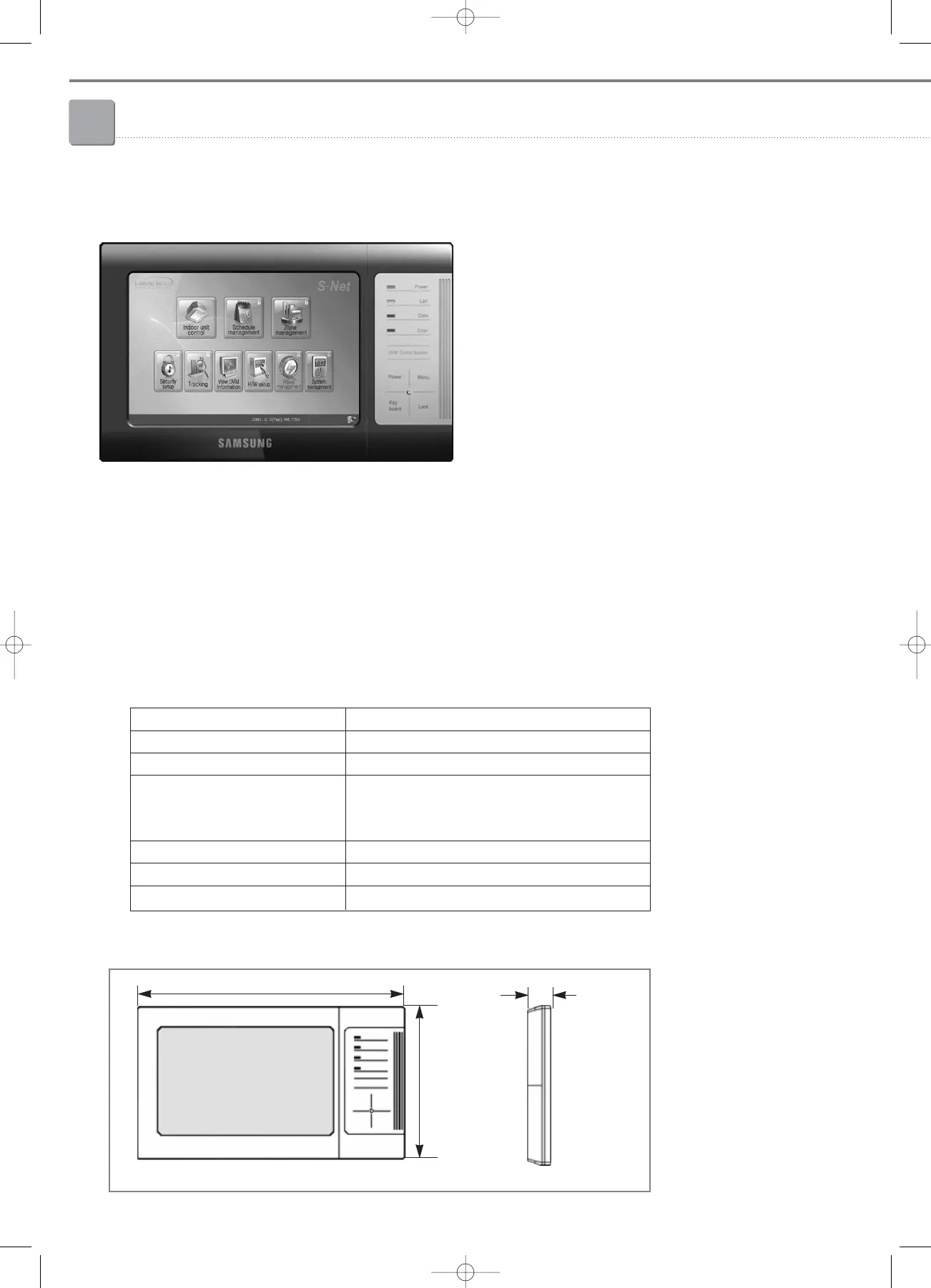

3-3. S-NET mini (MST-S3W)
1) Features
• Flexible connection options (With DMS, centralized controllers, interface modules)
• Control and monitoring of up to 256 indoor units
• Schedule function
• Individual/Group management
• Error display
•
7-inch wide LCD
•
Touch screen
• USB keyboard supported
• Zone control
• Wired/Wireless remote control restriction
• Applied to DVM, DVM PLUS, DVM PLUS II, DVM PLUS III , HR system, FJM, CAC
2) Dimensional drawing
Power supply 12VDC, 3.0A
Maximum communication length RS485 : Maximum 1km from the end to the other end
Communication connection DMS, Centralized controller, Interface module
4 DMSs
Maximum number of interface
16 centralized controllers
16 interface modules
256 indoor units
Ethernet 10Base-T supported
Operating temperature range 0ºC ~ 40ºC
Operating humidity range 30%RH ~ 90%RH
Unit : mm
230
136
33
05-3_control systems(082~141) 3/6/08 14:04 Page 130
