Samsung DVM PLUS III - Page 690

V-158
Control Systems
5
5
External contact control system
5-1. Key-tag interface module (MIM-B02)
4) Additional functions

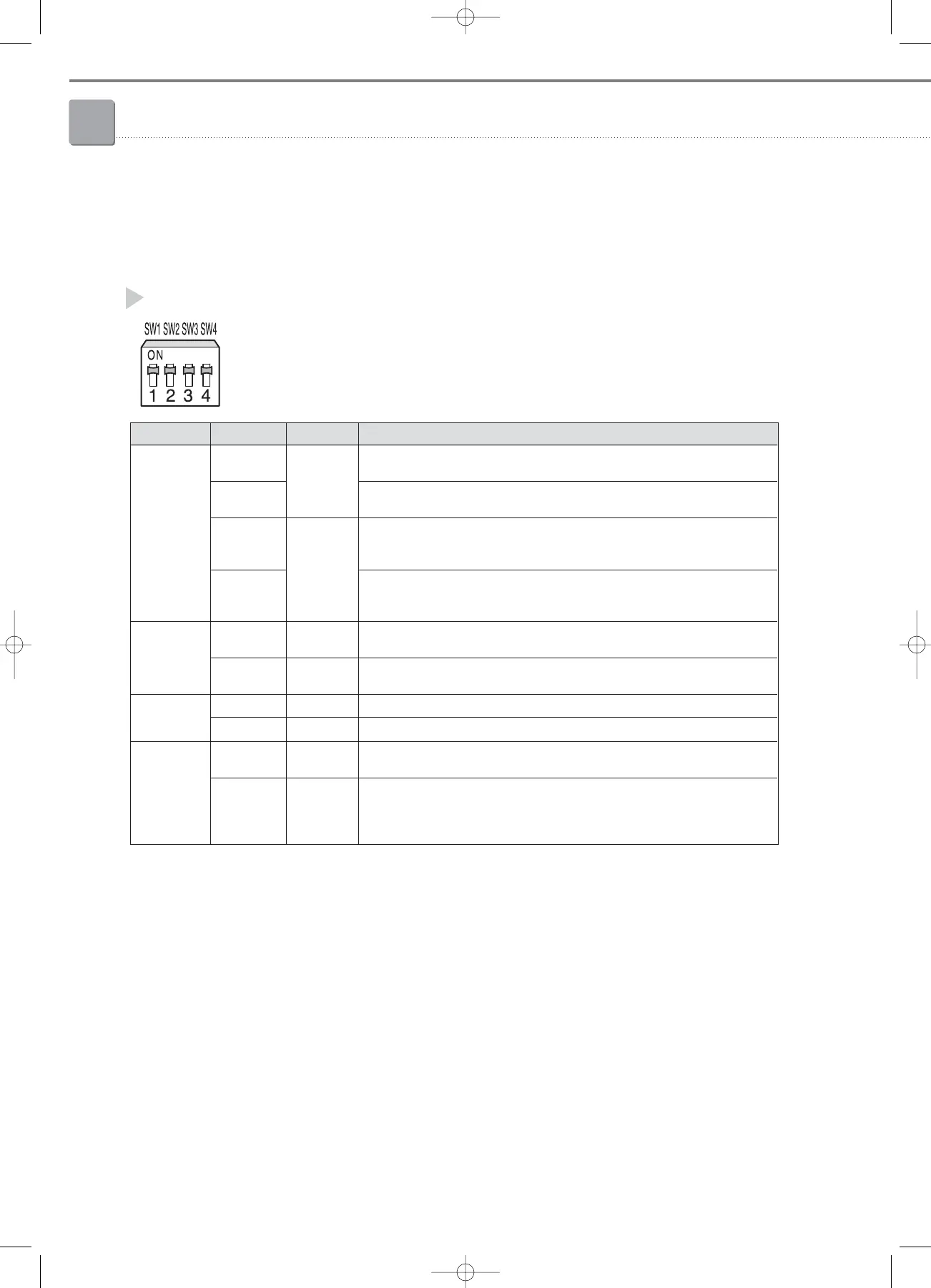

DIP SW
K1
K2
K3
K4
State
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
Note
K3=ON
K3=OFF
Description
When the I/M contact is Close, indoor unit turns OFF
(When the contact is Close, remote controller can’t be used).
When the I/M contact is Open, indoor unit remains in the OFF state
(When the contact is Open, remote controller can be used).
When the I/M contact is Close, indoor unit turns ON
When the I/M contact is Close, indoor unit turns OFF.
(Remote controller can be used.)
When the I/M contact is Close, indoor unit turns OFF
When the I/M contact is Open, indoor unit turns ON.
(Remote controller can be used.)
When outdoor unit uses key-tag I/M only
(DVM, DVM PLUS, DVM PLUS II, FJM, mini DVM).
When outdoor unit uses key-tag I/M and centralized controller together
(Only for DVM HR/PLUS II HR).
The external contact turns indoor unit OFF only.
The external contact turns indoor unit ON and OFF.
After power reset, ignore initial I/M contact state.
And start to control indoor unit by next contact state.
After power reset,start to control indoor unit by initial I/M contact state.
- Available for Indoor unit which doesn’t support Auto restart.
- When indoor unit turns ON by initial contact state, Indoor unit runs Auto mode.
Setting temperature 24, Auto fan speed.
Option switch setting
These can set indoor unit operation patterns when the external contact is input.
❈ When K3 =ON, K4 doesn’t work
❈ Remote controller :Wired/Wireless remote controller
