Samsung DVM PLUS III User Manual

Indoor Units
II-30
3
3
Mini 4 way cassette

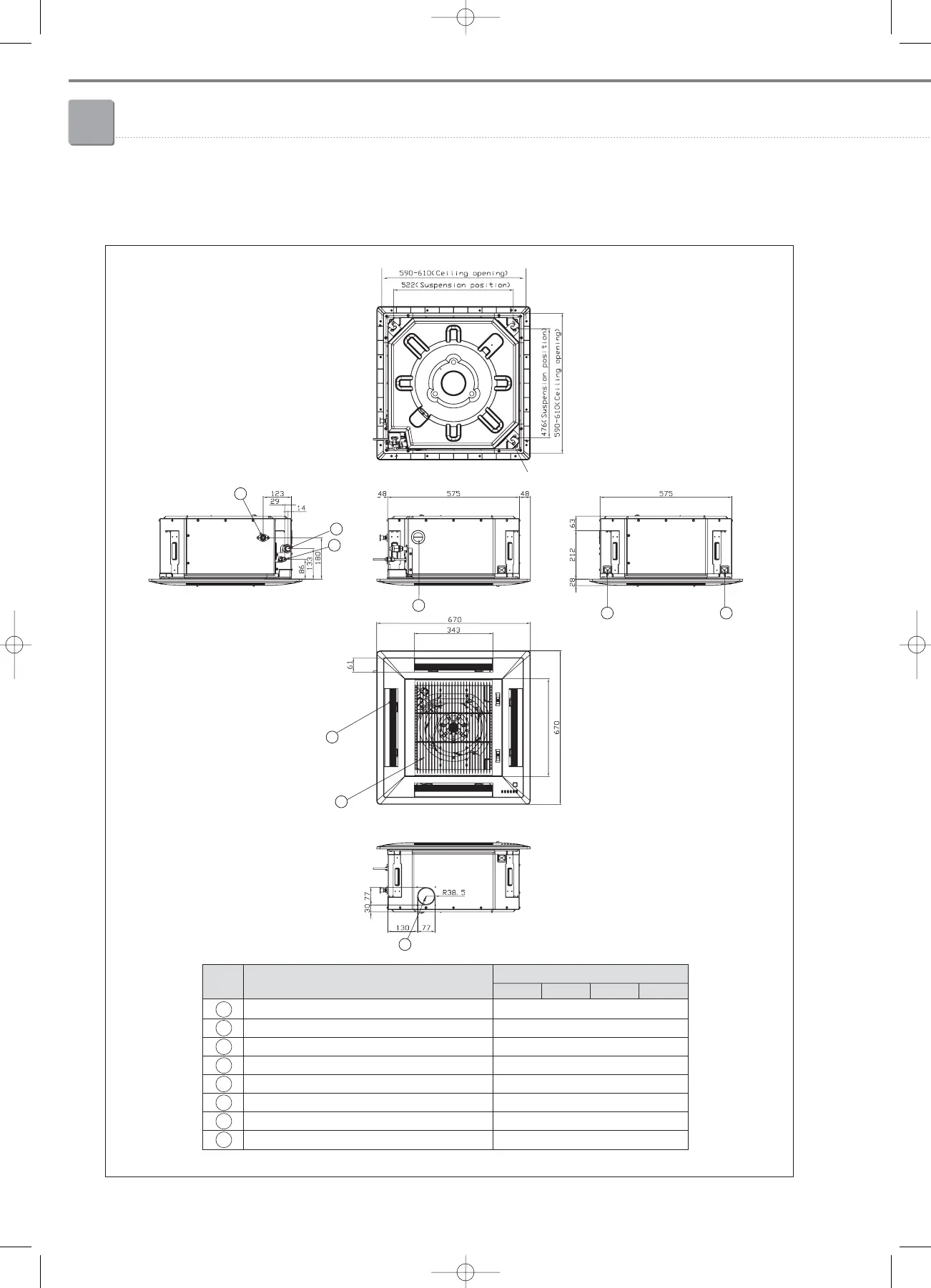

3-4. Dimensional drawing
1
2
3
4 4
5
6
7
Suspenslon bolts(M8~M10) X 4EA
8
Unit:mm
No. Name
Description
1 Liquid pipe connection Ø6.35 Flare
2 Gas pipe connection Ø12.70 Flare
3 Drain pipe connection VP25(OD 32, ID 25)
4 Conduit for power supply & communication wiring -
5 Air inlet grille -
6 Air outlet louver -
7 Fresh air intake -
8 Drainage testing hole -
2.8kW 3.6kW 5.2kW 6.0kW
