Installation
VI-36
2
2

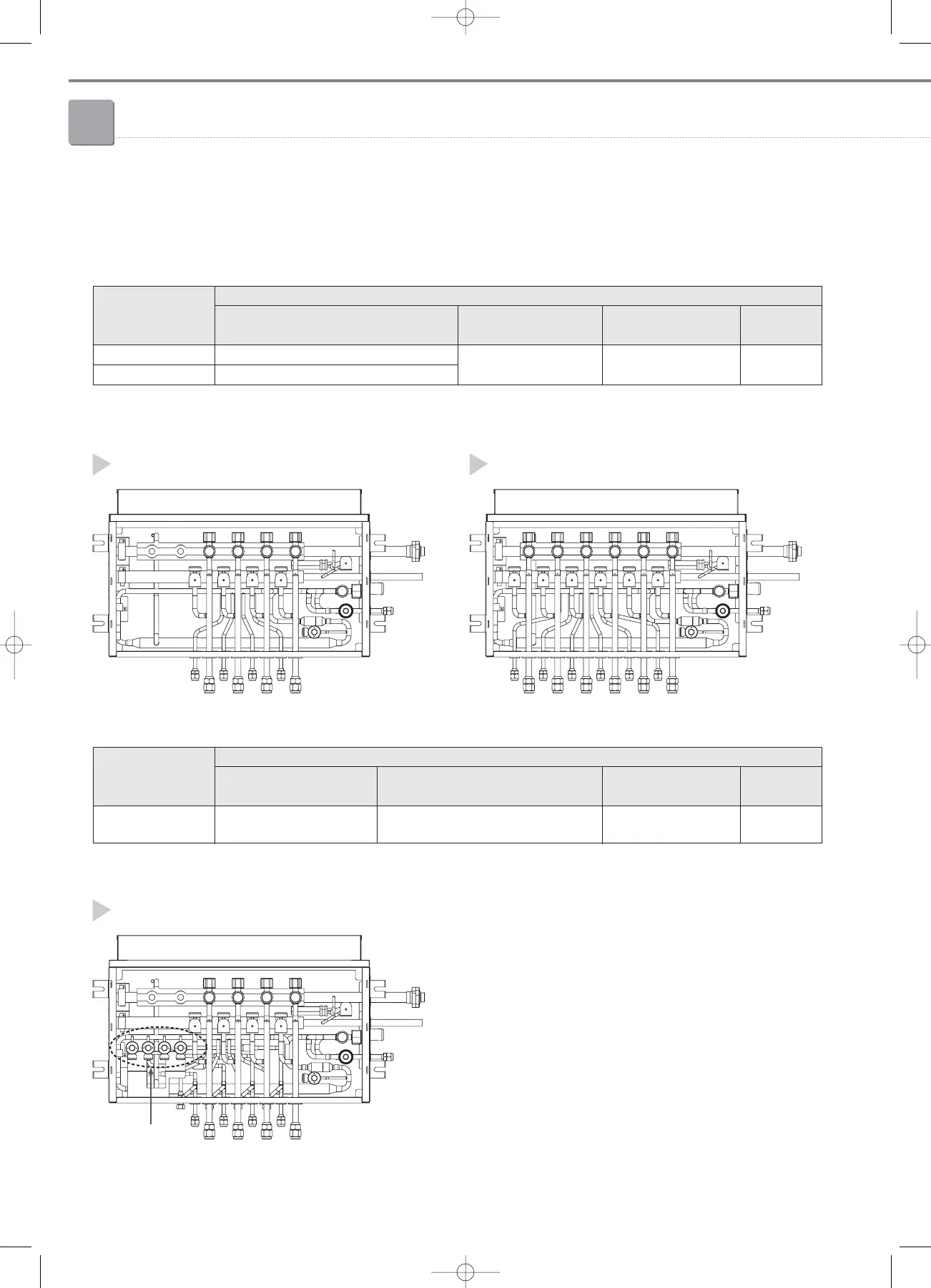

MCU installations
2-1. Basic models
1) MCU-4EAE1, MCU-6EAE1
❈ Select the MCU kits to fit the total capacity and the quantity of the indoor units to be connected downstream.
❈ The maximum connectable quantity of MCU to the system is 16 units.
❈ ‘MCU-4EAE1, MCU-6EAE1’ with wall mounted units can’t not be applicable without optional single EEV kits (not inclusive of EEV inside.)
MCU-4EAE1
2) MCU-4EAEV1
❈ Select the MCU kits to fit the total capacity and the quantity of the indoor units to be connected downstream.
❈ ‘MCU-4EAEV1’ with wall mounted and ceiling units can be applicable without optional single EEV kit.
EEVs
MCU-4EAEV1
MCU-6EAE1
Quantity of connectable indoor units Total capacity EEV
MCU-4EAE1 Up to 4 units
MCU-6EAE1 Up to 6 units
Model
Description
Up to 44.8kW (16HP)2.2~14.0kW Not included
Indoor unit’s
capacity per MCU’s port
Total capacity EEV
MCU-4EAEV1 Up to 4 units
Model
Description
Up to 44.8kW (16HP)
2.2~14.0kW
2.2~7.1kW(Wall mounted/ceiling units)
Included
Quantity of connectable
indoor units
Indoor unit’s
capacity per MCU’s port
