II-45
I
NDOOR
U
NITS

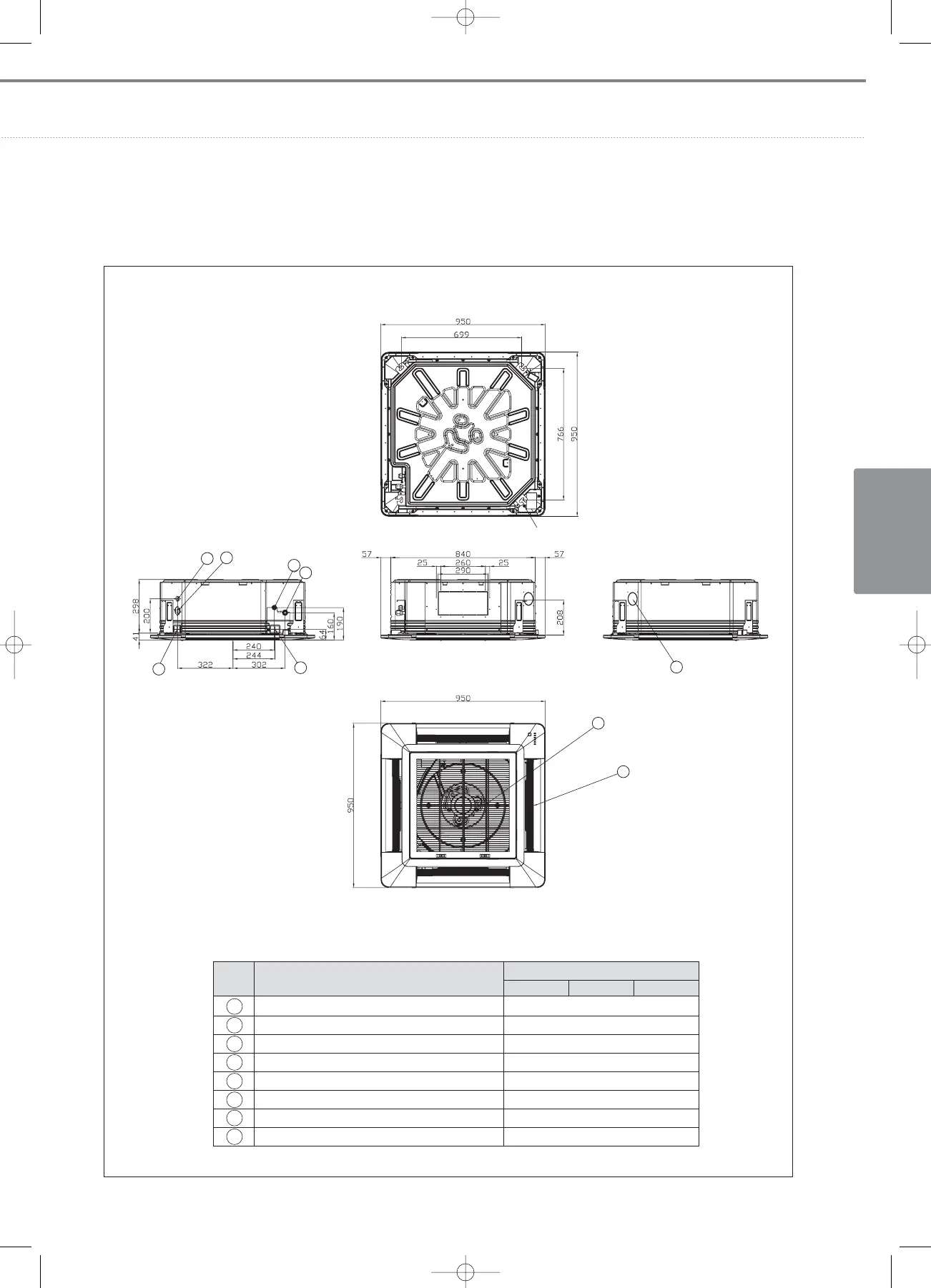

2) AVXC4H112/128/140E
1
2
3
4
4
5
6
7
8
Suspenslon bolts(M8~M10) X 4EA
Unit:mm
No. Name
Description
1 Liquid pipe connection Ø9.52 Flare
2 Gas pipe connection Ø15.88 Flare
3 Drain pipe connection VP25(OD 32, ID 25)
4
Conduit for power supply & communication wiring
-
5 Air inlet grille -
6 Air outlet louver -
7 Fresh air intake -
8 Drainage testing hole -
11.2kW 12.8kW 14.0kW
chapter2_Indoor units(002-051) 3/14/08 22:09 Page 45
