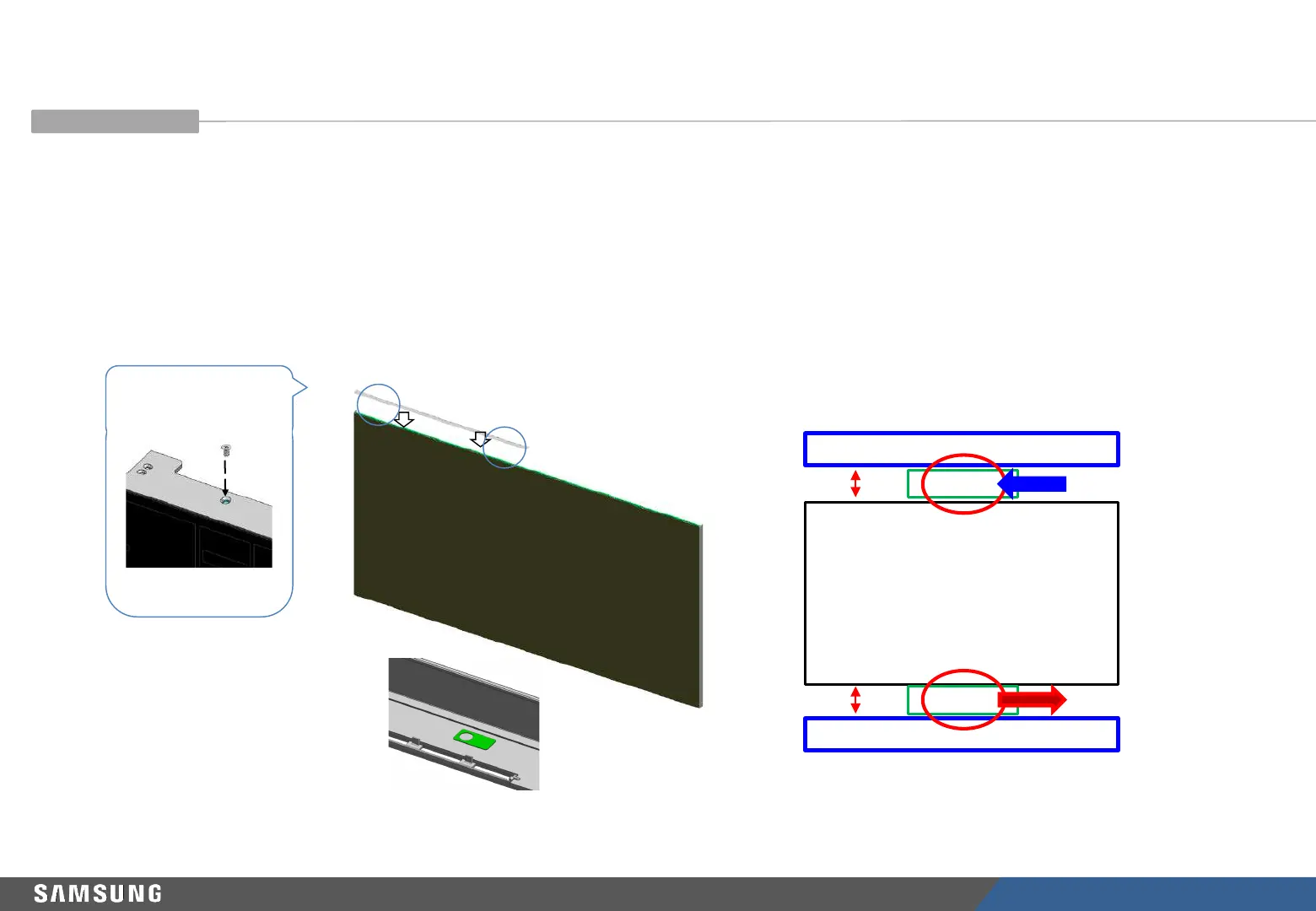

16. Place the ASSY FRAME BEZEL TOP on the upper left of the cabinet.
* Using one M4, L8 screw, fasten the FRAME BEZEL TOP and the top hole of the cabinet (2 places)
* If gap correction is necessary, add a gap sheet to adjust the separation distance.
◇ Bezel Installation
GAP SHEET
M4,L8
Bezel Top
Cabinet
Gap sheet
GAP
ADD
Bezel Bottom
Gap sheet
GAP
REMOVE
7. Frame Bezel installation
